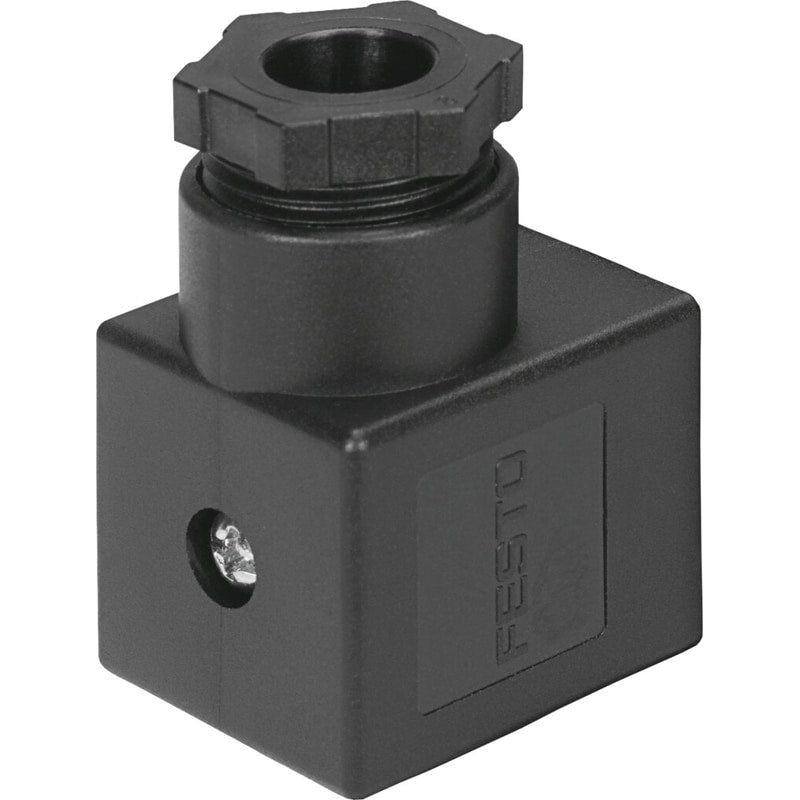

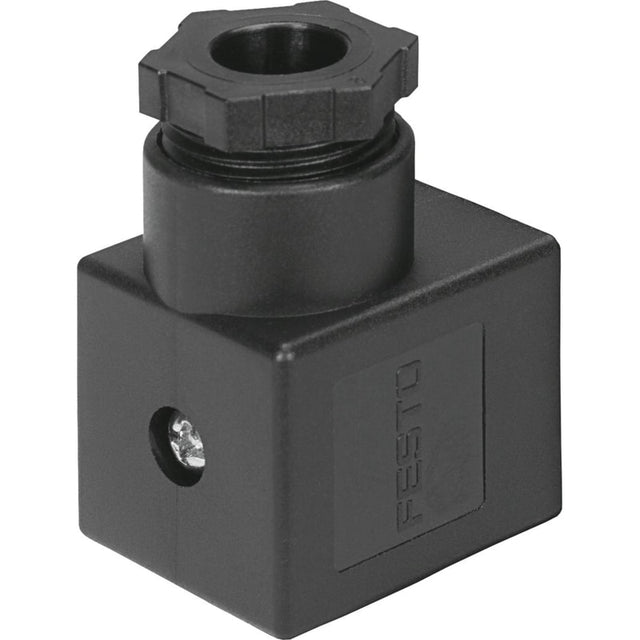

Plug socket
MSSD-C-M16
539709
GTIN 4052568050030
Vendor Festo
- Electrical connection
- as per DIN EN 175301-803 - Rectangular design
- Connection cross section
- 1.5 mm²
- Degree of protection
- IP65 - as per IEC 60529
Regular price
$5.56
Unit price
MSSD-C-M16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-C-M16
Regular price
$5.56
Unit price
MSSD-C-M16 is backordered and will ship as soon as it is back in stock.
| Type code | MSSD |
|---|---|
| Contact durability | 50 |
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 38 g |
| Electrical connection | Form A3-pinas per DIN EN 175301-803Rectangular designSocket, angled |
| Approved cable diameter | 6 mm ... 8 mm |
| Connection cross section | 1.5 mm² |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -20 °C ... 115 °C |
| Note on materials | RoHS-compliant |
| Housing material | PA-reinforced |
| Seals material | HNBR |
| Mounting position | Any |
| Cable fitting | M16 |
