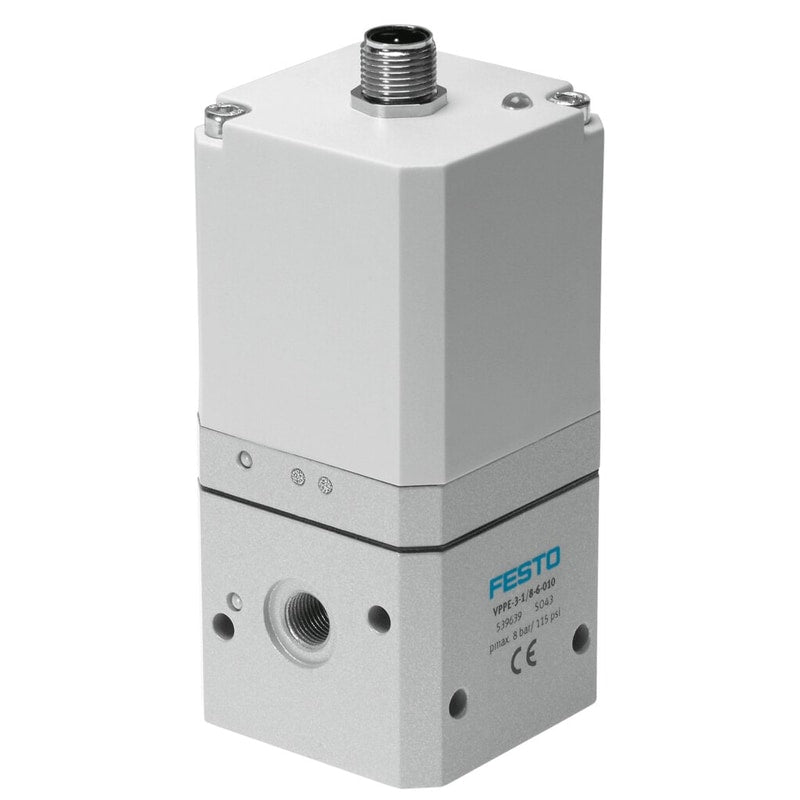

Proportional pressure control valve
VPPE-3-1/8-6-010
539639
GTIN 4052568177836
Vendor Festo
- Valve function
- 3-way proportional pressure control valve closed
- Pneumatic connection 1
- G1/8
- Pressure regulation range
- 0.15 bar - 6 bar
- Inlet pressure 1
- 6 bar - 8 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 850 l/min
Regular price
$791.08
Unit price
VPPE-3-1/8-6-010 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPE-3-1/8-6-010
Regular price
$791.08
Unit price
VPPE-3-1/8-6-010 is backordered and will ship as soon as it is back in stock.
proportional pressure regulator VPPE-3-1/8-6-010 Pressure regulation with electrical setpoint specification, suitable for block mounting Nominal diameter, pressurisation=5 mm, Nominal diameter, exhaust=2,5 mm, Type of actuation=electrical, Sealing principle=soft, Assembly position=(* Any, * Preferably vertical)
| Nominal diameter, pressurisation | 5 mm |
|---|---|
| Nominal diameter, exhaust | 2.5 mm |
| Type of actuation | electrical |
| Sealing principle | soft |
| Assembly position | AnyPreferably vertical |
| Design structure | Piloted piston regulator |
| Short circuit strength | for all electrical connections |
| Safety instructions | VPPE safety position: If the power supply cable is interrupted, output pressure is maintained unregulated. |
| Polarity protected | for all electrical connections |
| Valve function | 3-way closed proportional-pressure regulator |
| Pressure regulation range | 0.15 ... 6 bar |
| Inlet pressure 1 | 7 ... 8 bar |
| Max. pressure hysteresis | 0.15 bar |
