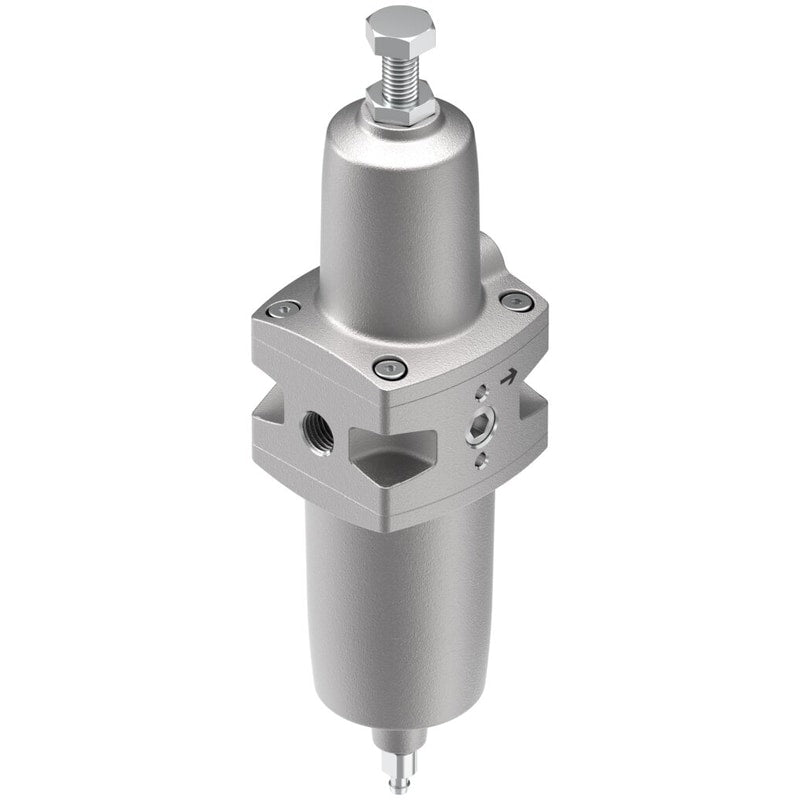

Filter regulator
PCRP-64-G14-12-C-R1-M-T19
5394670
GTIN 4052568423193
Vendor Festo
Regular price
$532.59
Unit price
PCRP-64-G14-12-C-R1-M-T19 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PCRP-64-G14-12-C-R1-M-T19
Regular price
$532.59
Unit price
PCRP-64-G14-12-C-R1-M-T19 is backordered and will ship as soon as it is back in stock.
| Size | 64 |
|---|---|
| Material of adjusting screw | High-alloy stainless steel |
| Drain screw material | High-alloy stainless steel |
| Drain screw material number | 1.4404/316L |
| Filter support material number | 1.4409/CF3M(316L) |
| Bowl material number | 1.4409/CF3M (316L) |
| Compressed air filter material number | 1.4404/316L |
| Material number of housing | 1.4409/CF3M(316L) |
| Conforms to standard | NACE MR0175/ISO 15156 (housing and bowl) |
| Type code | PCRP |
| Series | P |
| Actuator lock | Adjusting screw with lock |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Design | Filter regulator without pressure gauge |
| Max. condensate volume | 30 ml |
| Controller function | With secondary exhaustingWith primary pressure compensation |

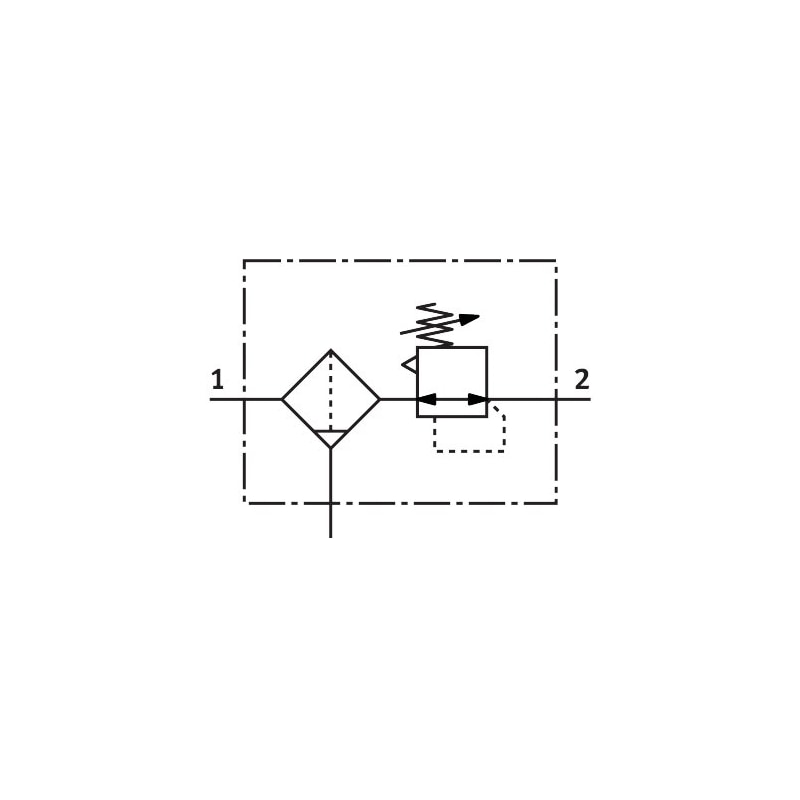

| Symbol | 991586 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 1 bar ... 20 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 1920 l/min |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Observe the information on the certificate |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [-:4:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Storage temperature | -60 °C ... 80 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -60 °C ... 80 °C |
| Ambient temperature | -60 °C ... 80 °C |
| Product weight | 1965 g |
| Type of mounting | Line installationWith mounting kitOptionally: |
| Pressure gauge connection | G1/4 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Material of filter support | Cast stainless steel |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Material of mounting bracket | High-alloy stainless steel |
| Seals material | CRNBRVMQ |
| Material of spring | High-alloy stainless steel |
| Compressed air filter material | High-alloy stainless steel |
| Housing material | Cast stainless steel |
| Material of bowl | Cast stainless steel |
