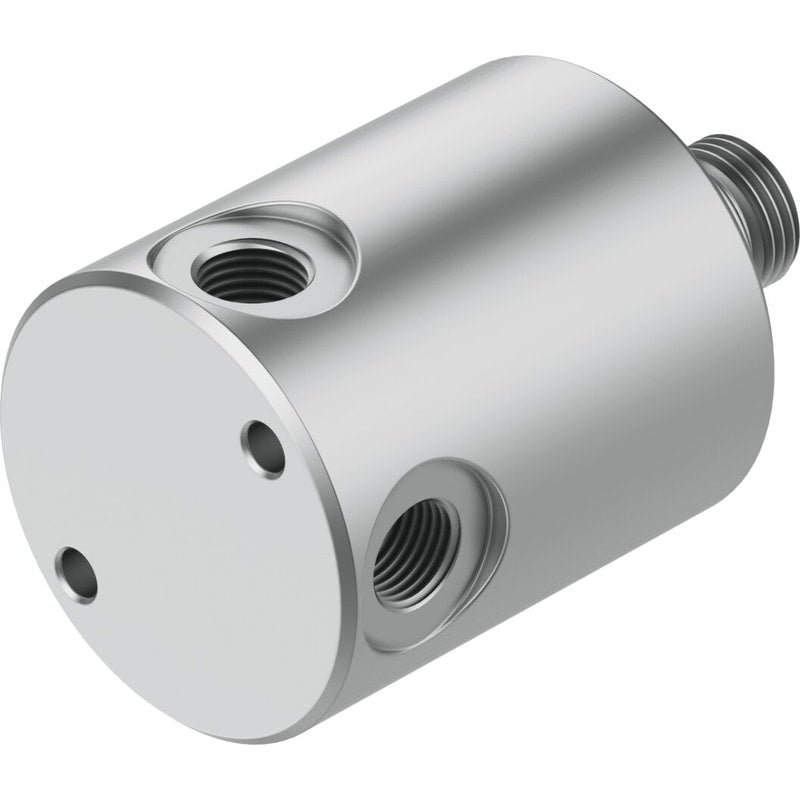

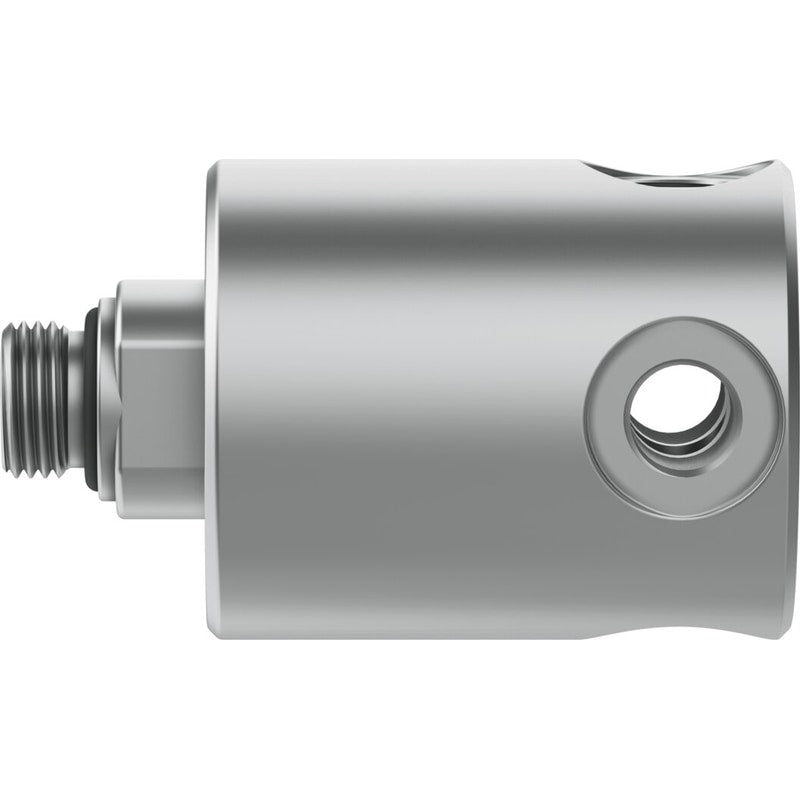

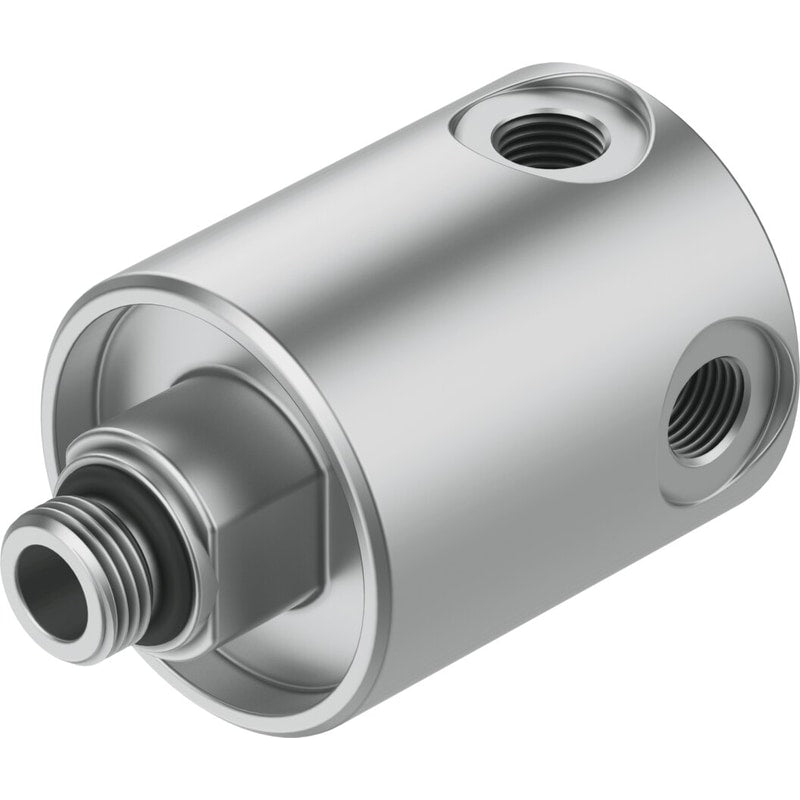

Rotary distributor
GF-1/8-M5
539290
GTIN 4052568177447
Vendor Festo
- Max. rotational speed
- 3000 1/min
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M5
Regular price
$286.85
Unit price
GF-1/8-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GF-1/8-M5
Regular price
$286.85
Unit price
GF-1/8-M5 is backordered and will ship as soon as it is back in stock.
rotary distributor GF-1/8-M5 Single rotary distributor, 1 input - 4 outputs. Nominal size=4,1 mm, Assembly position=Any, Operating pressure complete temperature range=-0,95 - 10 bar, Standard flow rate 1-2.1 (6->0)=490 l/min, Standard flow rate 1-2.X open (6->0)=2250 l/min
| Fitting Type | n/a |
|---|---|
| Nominal size | 4.1 mm |
| Assembly position | Any |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Standard flow rate 1-2.1 (6->0) | 490 l/min |
| Standard flow rate 1-2.X open (6->0) | 2, 250 l/min |
| Max. speed | 3, 000 1/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Nominal tightening torque | 1.22 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| connection 1 | G1/8 |
| connection 2 | M5 |
