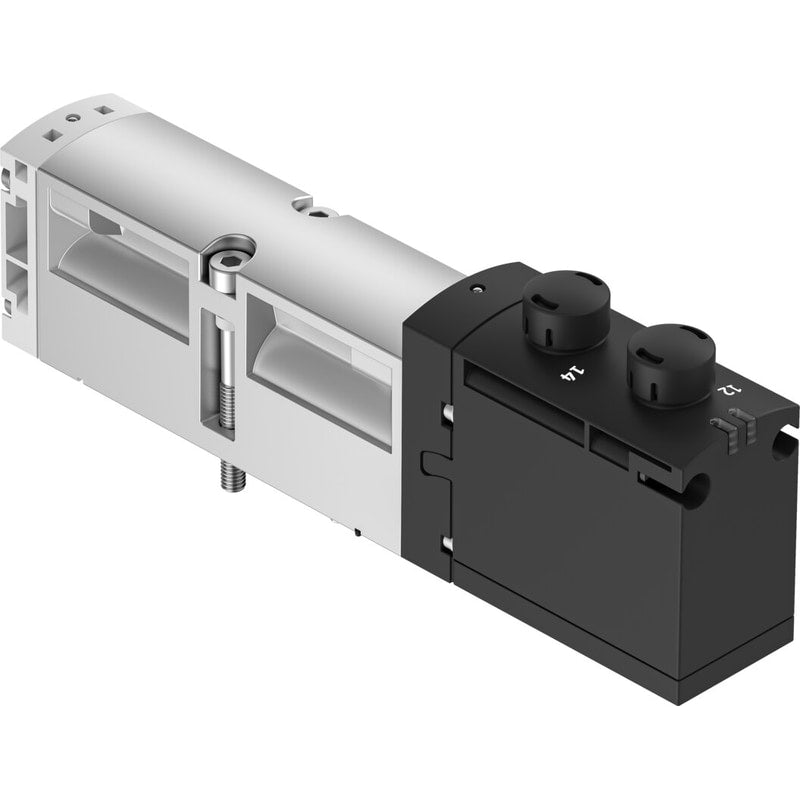

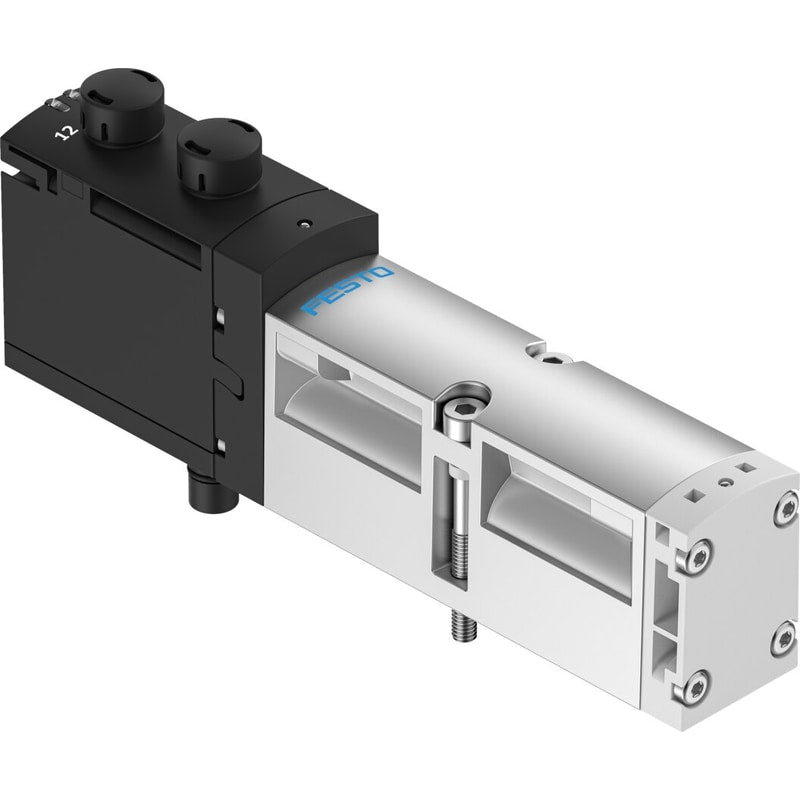

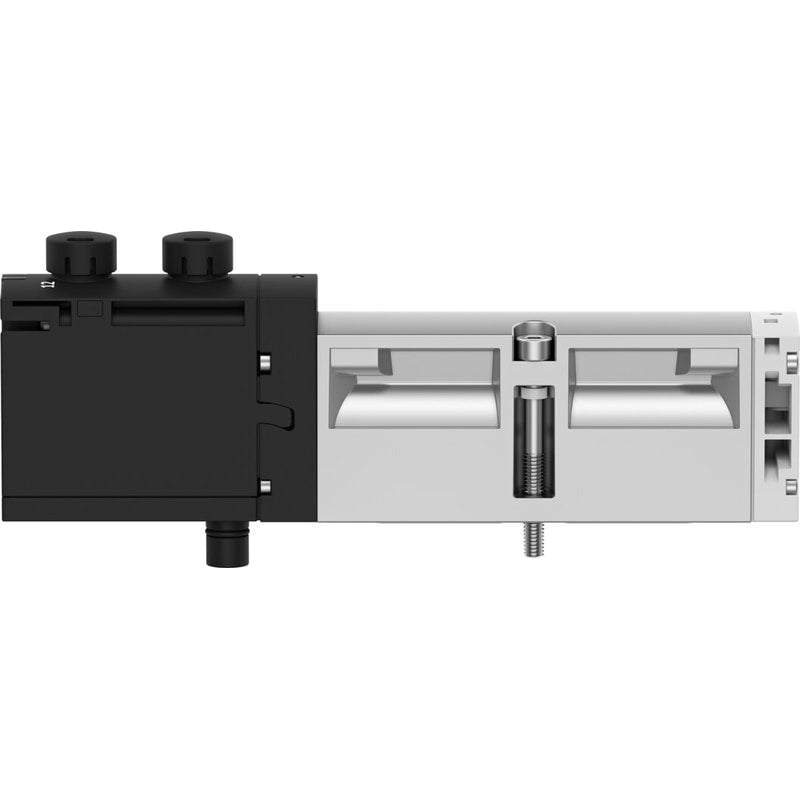

Air solenoid valve
VSVA-B-D52-ZD-A1-1T1L
539157
GTIN 4052568176990
Vendor Festo

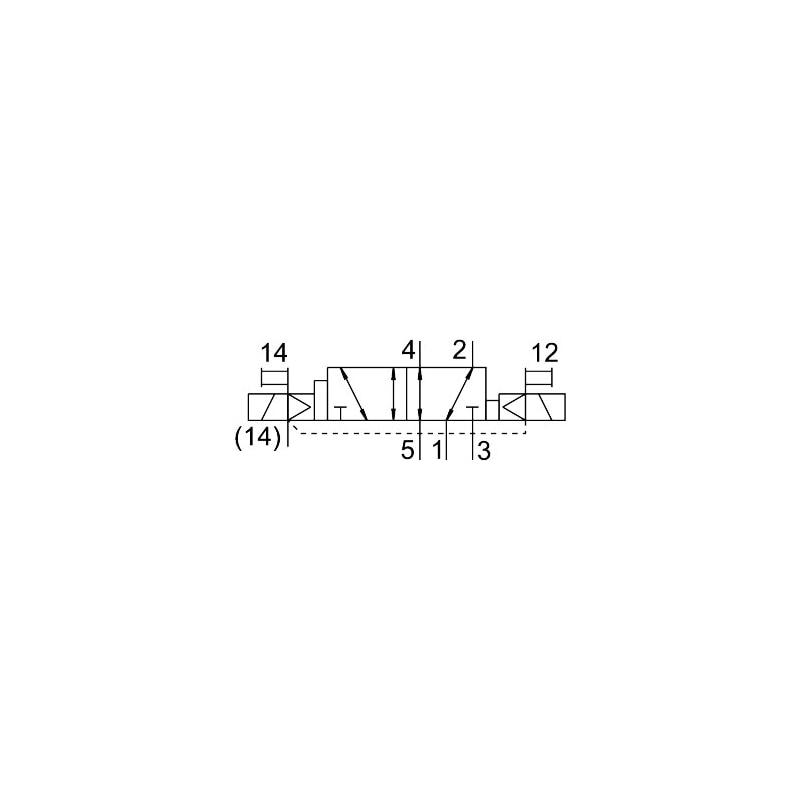

- Valve function
- 5/2, bistable, dominant
- Normal nominal flow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic connection 1
- Sub-base, size 26 mm as per ISO 15407-2
- Actuation type
- Electrical
Regular price
$215.97
Unit price
VSVA-B-D52-ZD-A1-1T1L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-D52-ZD-A1-1T1L
Regular price
$215.97
Unit price
VSVA-B-D52-ZD-A1-1T1L is backordered and will ship as soon as it is back in stock.
solenoid valve VSVA-B-D52-ZD-A1-1T1L For valve terminals VTSA and VTSA-F. Valve function=5/2 bistable-dominant, Type of actuation=electrical, Width=26 mm, Standard nominal flow rate=1100 l/min, Operating pressure=-0,9 - 10 bar
| Valve function | 5/2 bistable-dominant |
|---|---|
| Type of actuation | electrical |
| Width | 26 mm |
| Standard nominal flow rate | 1,100 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | CSA (OL)c UL us - Recognized (OL) |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushingCovered |
| Type of piloting | Piloted |
