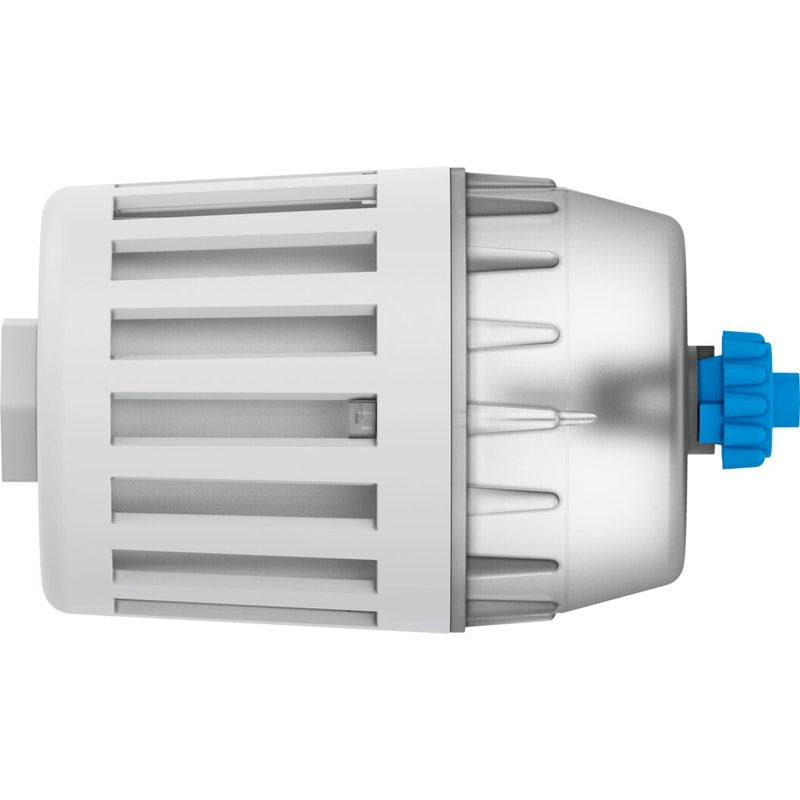

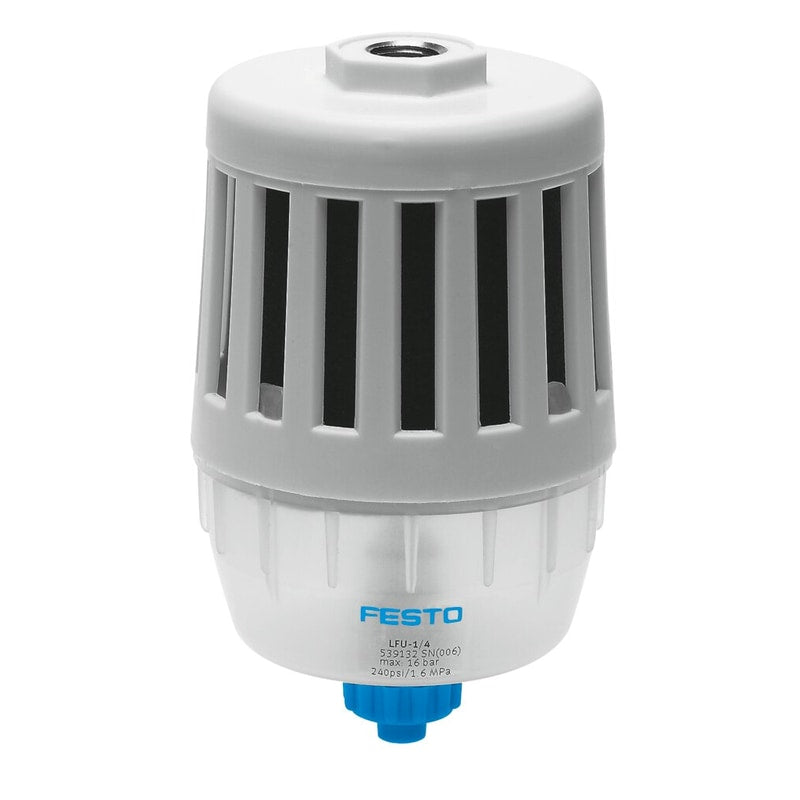

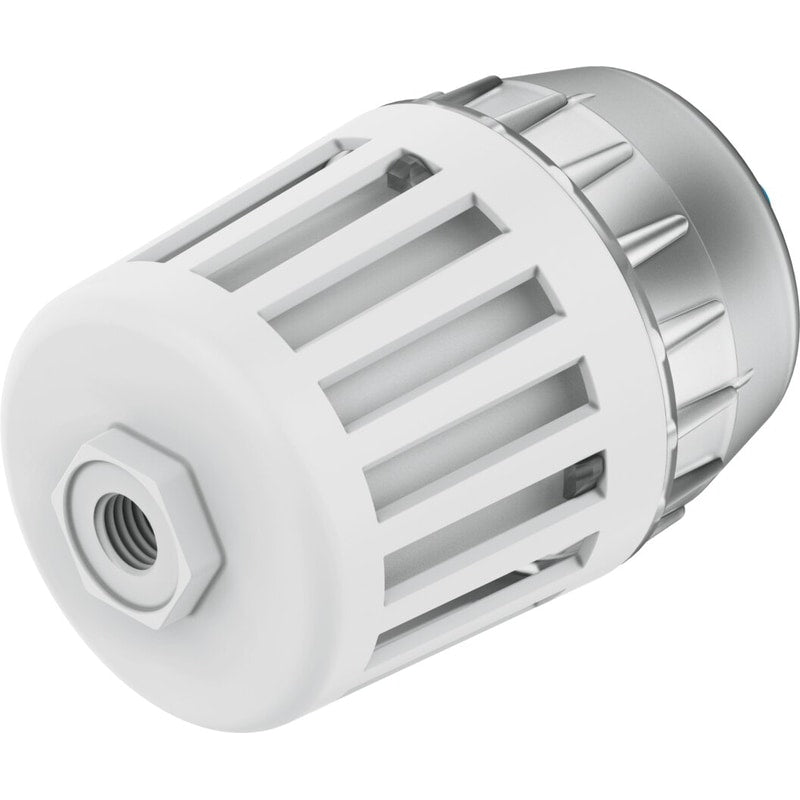

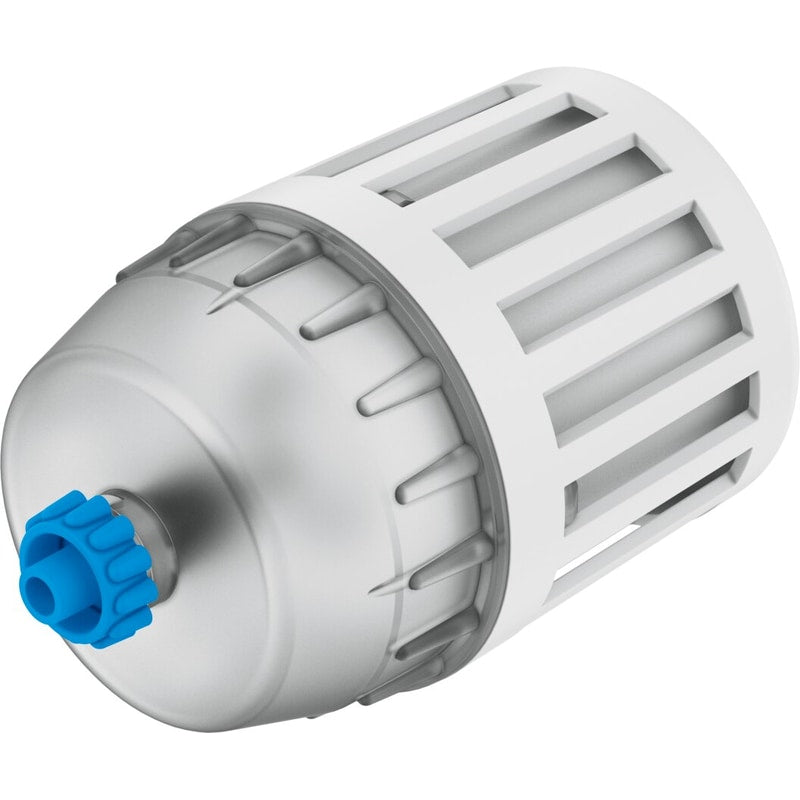

Filter muffler
LFU-1/4
539132
GTIN 4052568005665
Vendor Festo
- Size
- G1/4
- Grade of filtration
- 1 µm
- Flow rate with respect to atmosphere
- 4000 l/min
- Noise reduction
- Reduction by 40 dB
Regular price
$154.76
Unit price
Filter muffler LFU-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFU-1/4
Regular price
$154.76
Unit price
Filter muffler LFU-1/4 is backordered and will ship as soon as it is back in stock.
| Size | G1/4 |
|---|---|
| Type code | LFU |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 1 µm |
| Condensate drain | Manually rotating |
| Symbol | 991531 |
| Inlet pressure 1 | 0 bar ... 16 bar |
| Flow rate with respect to atmosphere | ≥ 4000 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Noise reduction | Reduction by 40 dB |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 190 g |
| Pneumatic connection | G1/4 |
| Note on materials | Free of copper and PTFE |
| Housing material | PP |
