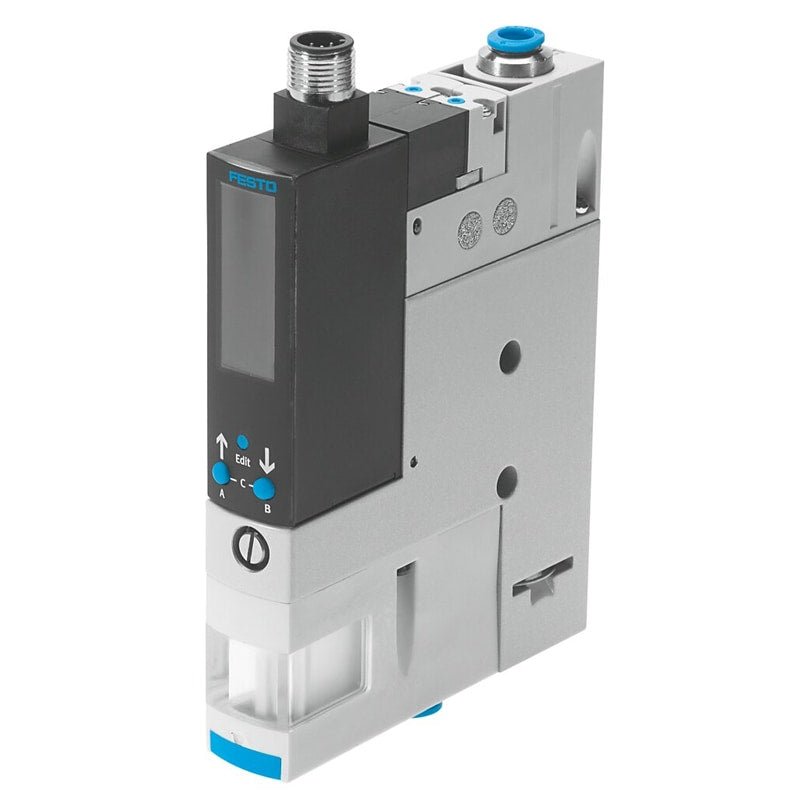

Vacuum generator
OVEM-05-H-B-QO-CE-N-2P
538831
GTIN 4052568176600
Vendor Festo
- Nominal width of Laval nozzle
- 0.45 mm
- Max. vacuum
- 93 %
- Max. suction rate with respect to atmosphere
- 6 l/min
Regular price
$1,104.40
Unit price
OVEM-05-H-B-QO-CE-N-2P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
OVEM-05-H-B-QO-CE-N-2P
Regular price
$1,104.40
Unit price
OVEM-05-H-B-QO-CE-N-2P is backordered and will ship as soon as it is back in stock.
vacuum generator OVEM-05-H-B-QO-CE-N-2P Supply/vacuum port with QS fittings, exhaust port with open silencer. Nominal size, Laval nozzle=0,45 mm, Grid dimension=20 mm, Design, silencer=open, Assembly position=Any, Ejector characteristic=(* High vacuum, * Standard)
| Nominal size, Laval nozzle | 0.45 mm |
|---|---|
| Grid dimension | 20 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | High vacuumStandard |
| Grade of filtration | 40 µm |
| Manual override | PushingAdditionally via operating buttons |

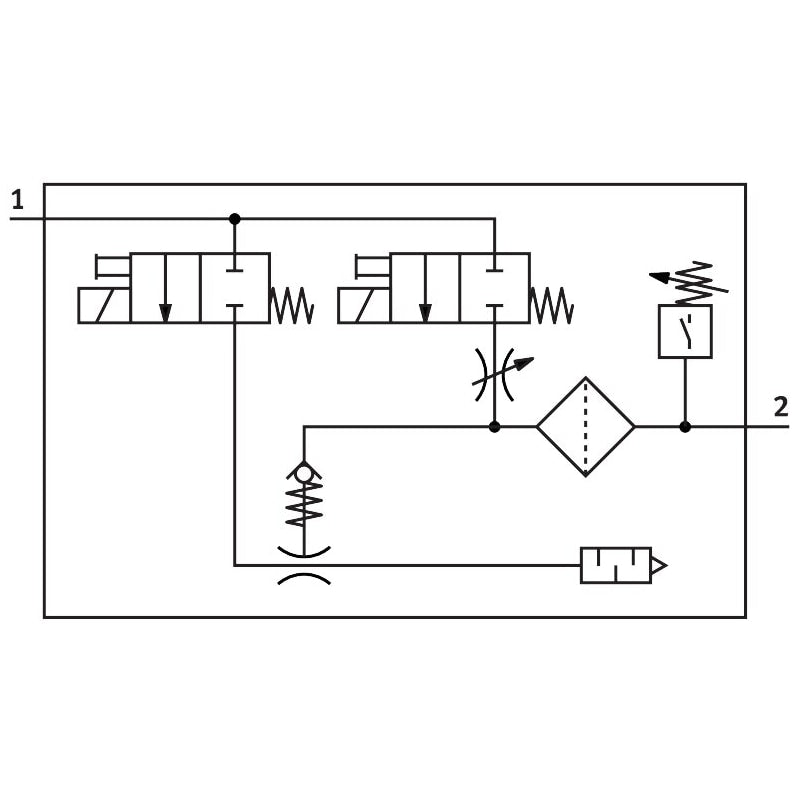

| Integrated function | Ejector pulse valve, electricalFlow control valveElectrical on-off valveFilterAir saving function, electricalNon-return valveOpen silencerVacuum switch |
| Design structure | modular |
| Short circuit strength | Yes |
| Measured variable | Relative pressure |
| Measuring principle | Piezoresistive |
| Switching element function | Normally closed contactNormally open contact |
