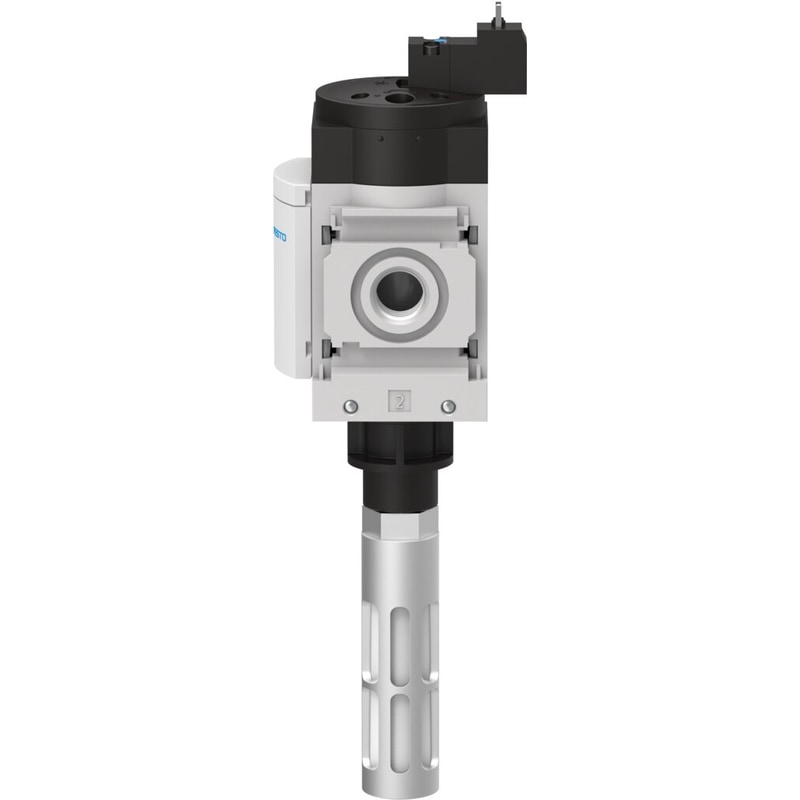

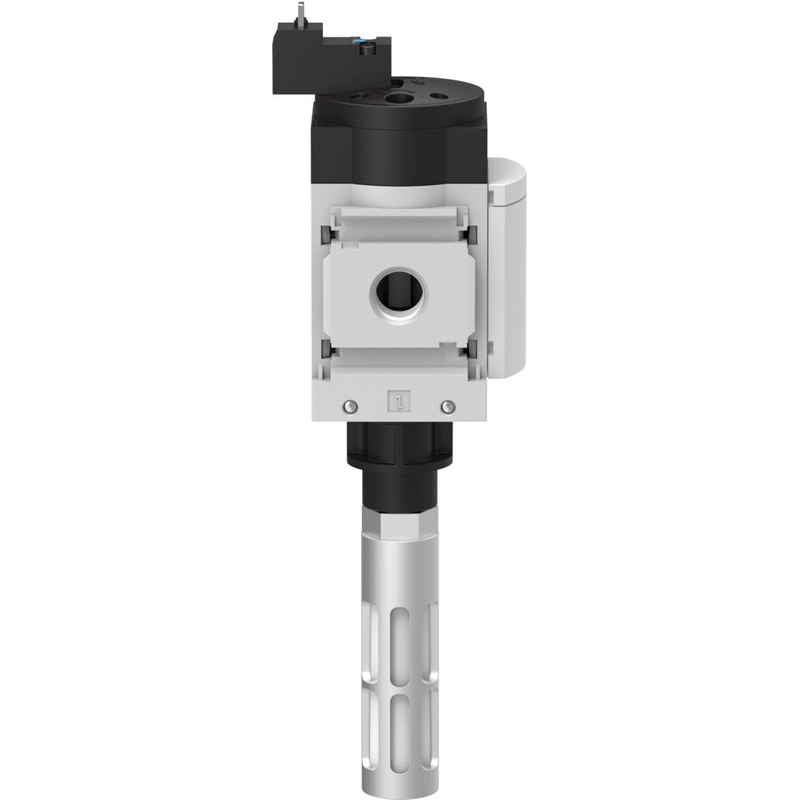

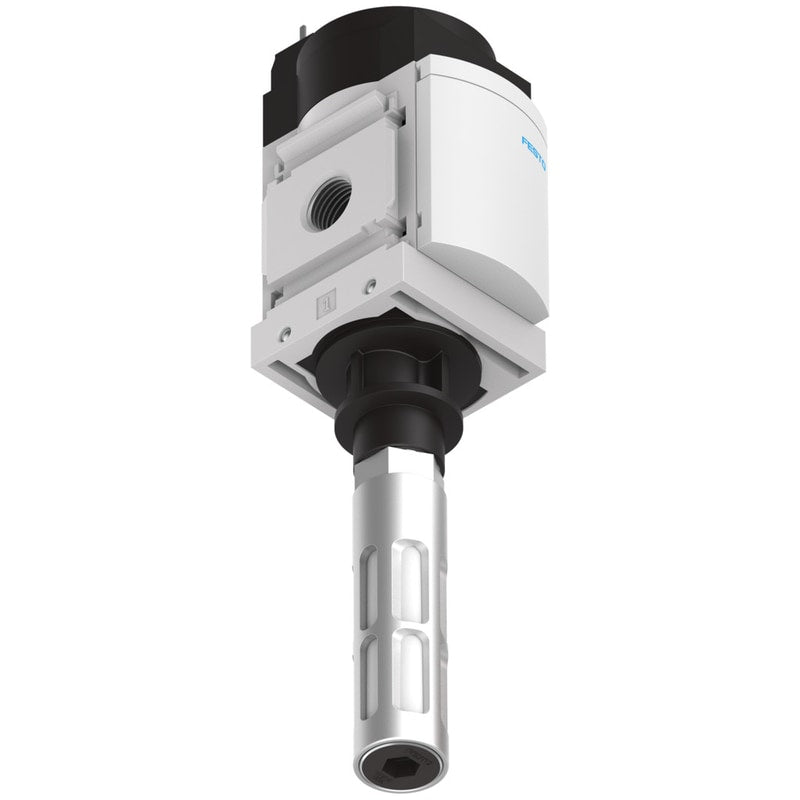

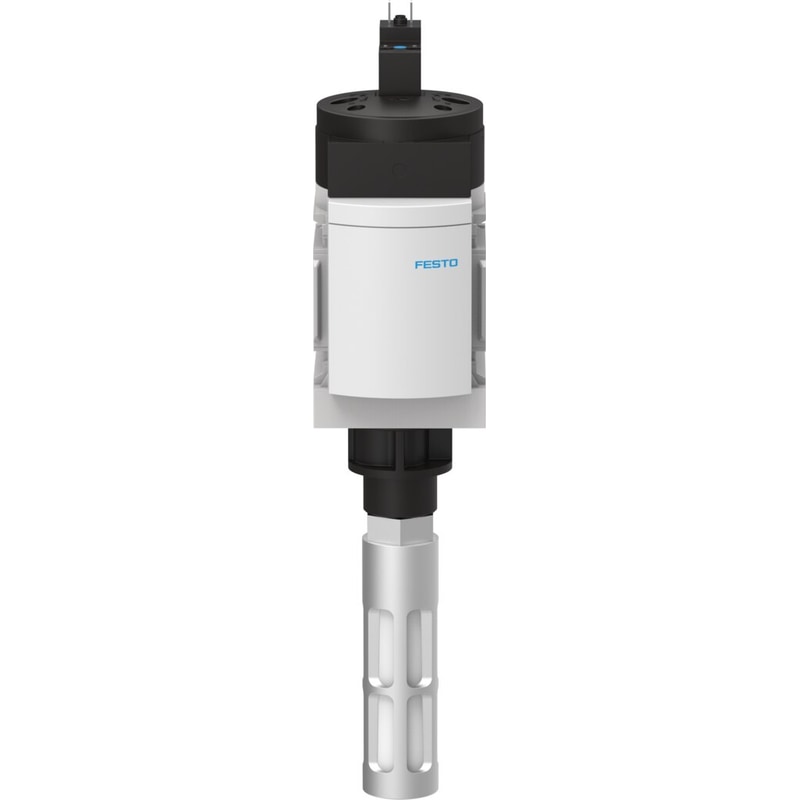

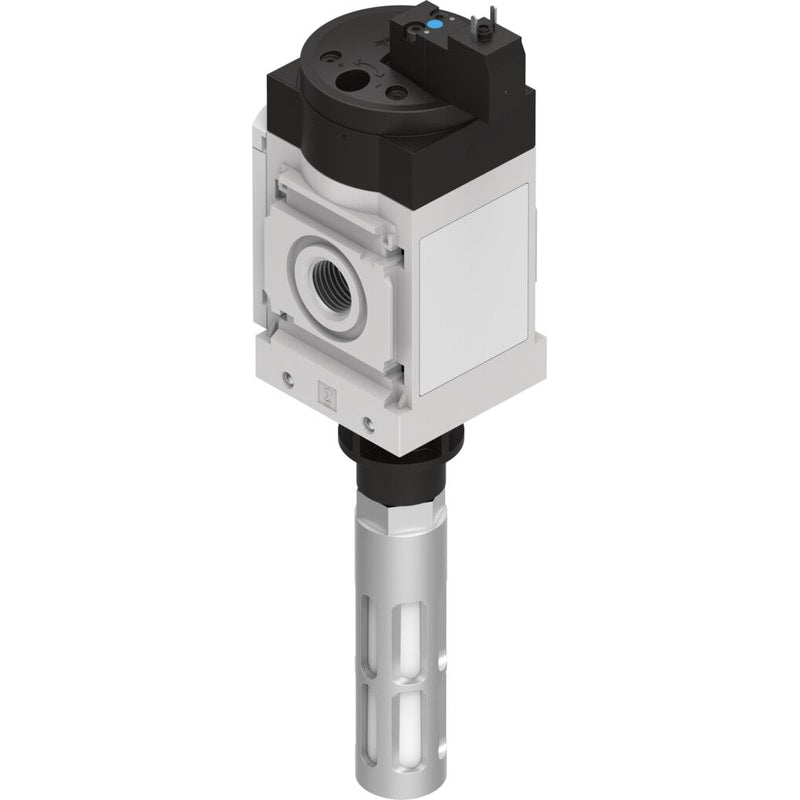

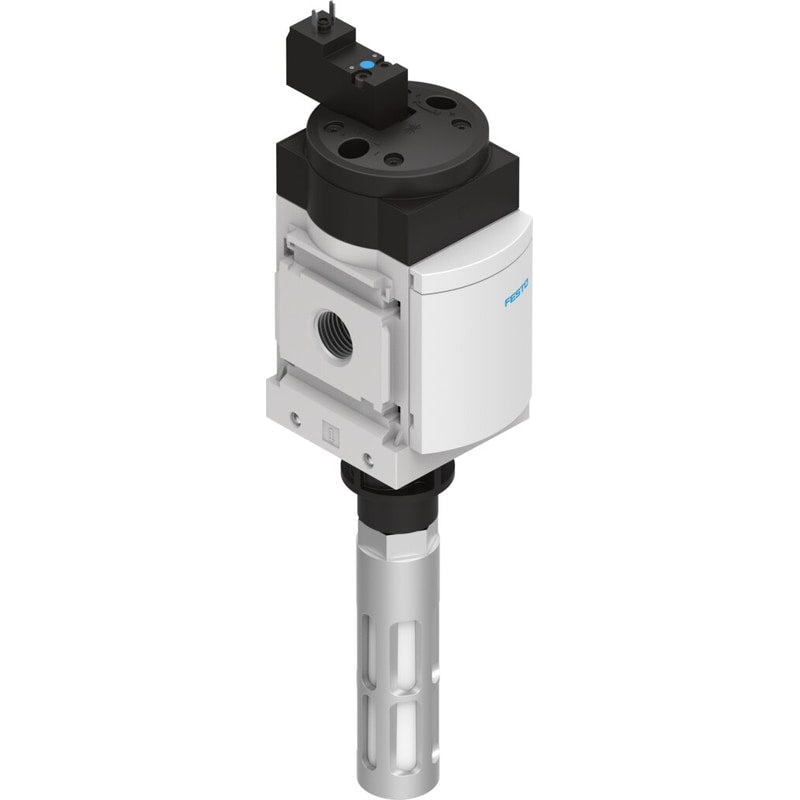

On/off valve
MS6-EE-1/2-V110-S
538731
GTIN 4052568176433
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 7000 l/min
- Operating pressure
- 4 bar - 10 bar
- Actuation type
- Electrical
Regular price
$147.88
Unit price
On/off valve MS6-EE-1/2-V110-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-EE-1/2-V110-S
Regular price
$147.88
Unit price
On/off valve MS6-EE-1/2-V110-S is backordered and will ship as soon as it is back in stock.
on-off valve MS6-EE-1/2-V110-S Electrical, with silencer, direction of flow: from left to right Design structure=Piston slide, Type of actuation=electrical, Exhaust-air function=not throttleable, Manual override=(* detenting, * Pushing), Type of reset=mechanical spring
| Design structure | Piston slide |
|---|---|
| Type of actuation | electrical |
| Exhaust-air function | not throttleable |
| Manual override | detentingPushing |
| Type of reset | mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3/2 closed, monostable |
| Operating pressure | 4 ... 10 bar |
| C value | 29 l/sbar |
| b value | 0.4 |
| Standard nominal flow rate | 7,000 l/min |
| Duty cycle | 1 |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 3 VA, holding power 2.4 VA |
