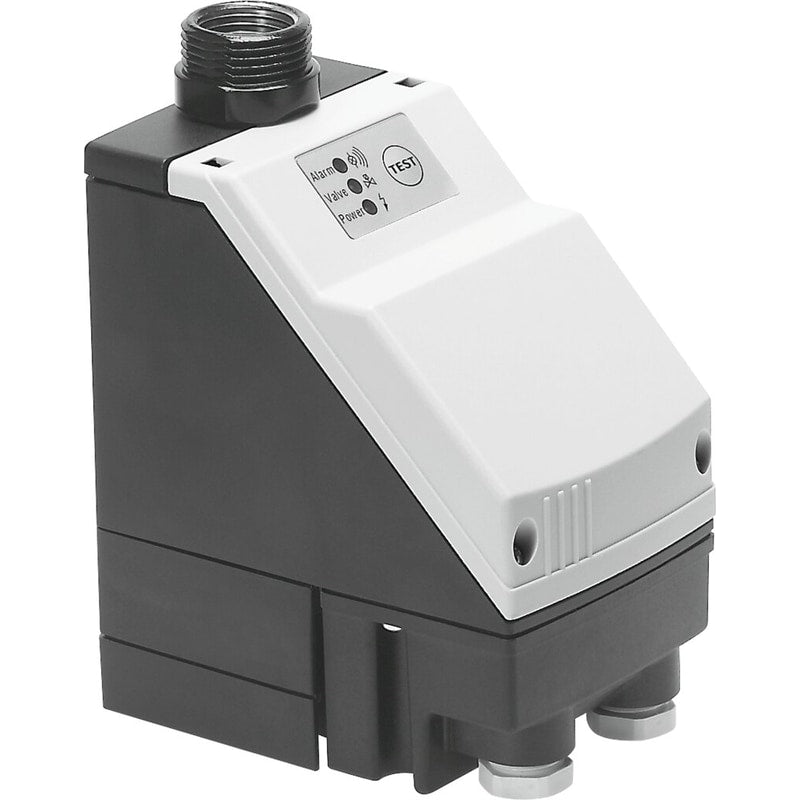

Condensate drain
PWEA-AC-7A
538680
GTIN 4052568176389
Vendor Festo
Regular price
$779.43
Unit price
Condensate drain PWEA-AC-7A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PWEA-AC-7A
Regular price
$779.43
Unit price
Condensate drain PWEA-AC-7A is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Type code | PWEA |
| Actuation type | Electrical |
| Mounting position | Vertical +/- 5° |
| Manual override | Non-detenting |
| Condensate drain | Fully automatic |
| Design | Fully automatic external electrics |
| Measured variable | Fill level |
| Valve function | 3/2, closed, monostable |
| Control elements | Touch sensitive keyboardWith test button |
| Ready status indication | LED |
| Switching status indication | LED |
| Operating pressure | 0.8 bar ... 16 bar |
| Alarm output | Contact-based |
| Nominal operating voltage AC | 230 V |
| Nominal power of condensate drain | 2 VA |
| Mains frequency | 50 Hz ... 60 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU low voltage directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| Temperature of medium | 1 °C ... 60 °C |
| Degree of protection | as per IEC 60529IP65 |
| Ambient temperature | 1 °C ... 60 °C |
| Certification | C-Tick |
| Product weight | 700 g |
| Electrical connection | Screw terminal |
| Type of mounting | Line installation |
| Condensate drain connection | PK-8 |
| Pneumatic connection | G1/2 |
| Material of condensate reservoir | Wrought aluminum alloy |
| Note on materials | RoHS-compliant |
| Housing material | Polymer |
