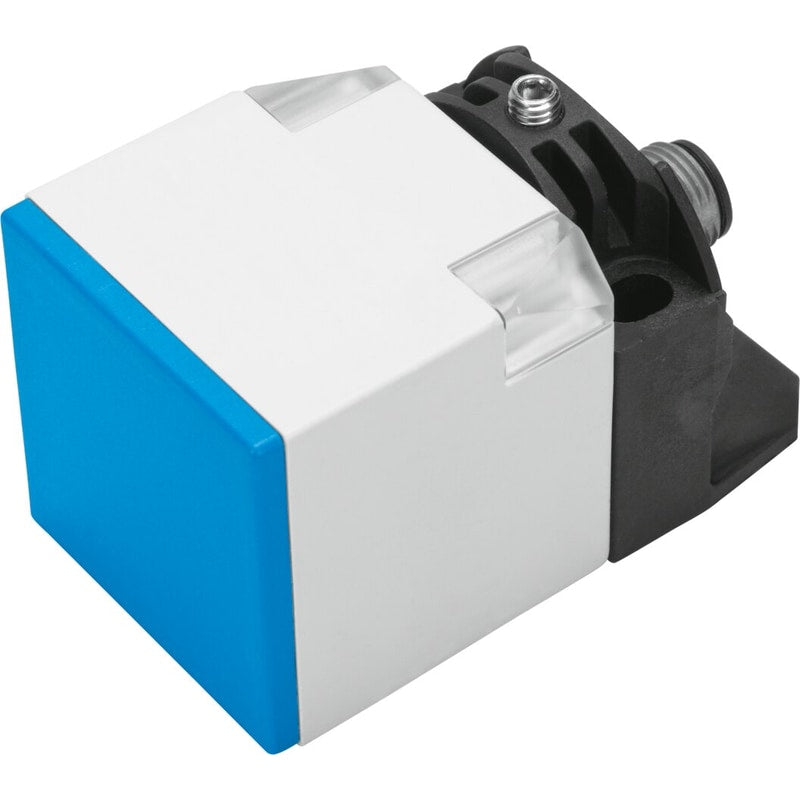

Proximity sensor
SIEF-Q40S-PA-S-2L
538341
GTIN 4052568175917
Vendor Festo
- Size
- 40x40x65 mm
- Switching output
- PNP
- Switching element function
- Antivalent
- Electrical connection
- M12x1 - Plug
- DC operating voltage range
- 10 V - 65 V
Regular price
$140.35
Unit price
SIEF-Q40S-PA-S-2L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIEF-Q40S-PA-S-2L
Regular price
$140.35
Unit price
SIEF-Q40S-PA-S-2L is backordered and will ship as soon as it is back in stock.
proximity sensor SIEF-Q40S-PA-S-2L With plug, semi-flush mounting Design=Square, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE
| Design | Square |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Measuring principle | Inductive |
| Nominal switching distance | 35 mm |
| Guaranteed switching distance | 28.35 mm |
| Reduction factors | Aluminium = 1.0Stainless steel, St 18/8 = 1.0Copper = 1.0Brass = 1.0Steel, St 37 = 1.0 |
| Ambient temperature | '-30 ... 85 °C |
| Repetition accuracy | 0.7 mm |
| Switch output | PNP |
| Switching element function | Antivalent |
