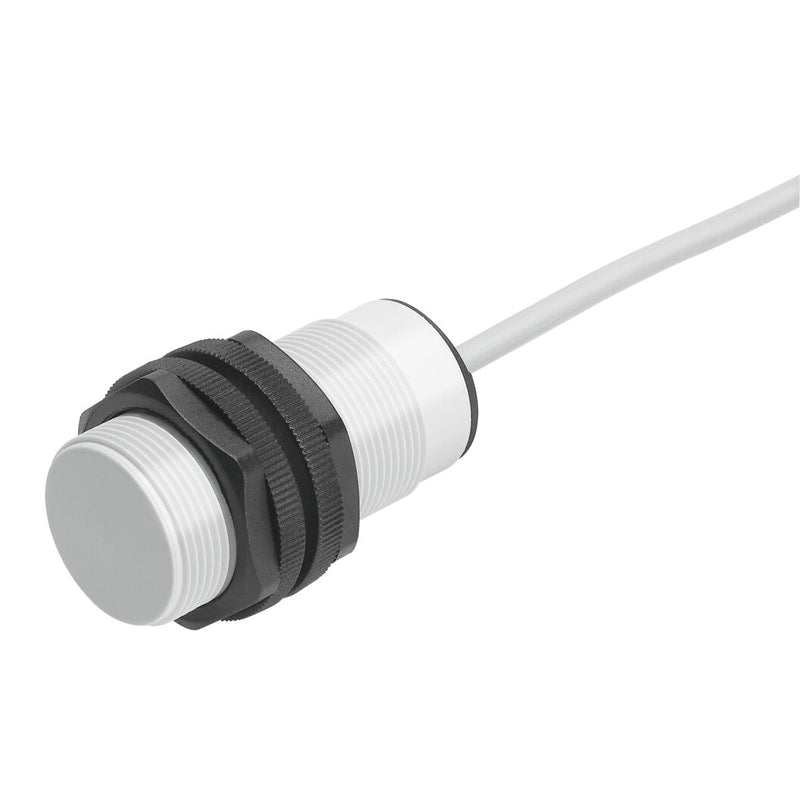

Proximity sensor
SIEN-M30B-PS-K-L-PA
538327
GTIN 4052568089245
Vendor Festo
- Size
- M30
- Switching output
- PNP
- Switching element function
- N/O contact
- Electrical connection
- Cable
- DC operating voltage range
- 10 V - 30 V
Regular price
$104.17
Unit price
SIEN-M30B-PS-K-L-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIEN-M30B-PS-K-L-PA
Regular price
$104.17
Unit price
SIEN-M30B-PS-K-L-PA is backordered and will ship as soon as it is back in stock.
proximity sensor SIEN-M30B-PS-K-L-PA With cable, flush mounting Design=Round, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE
| Design | Round |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Measuring principle | Inductive |
| Nominal switching distance | 10 mm |
| Guaranteed switching distance | 8.1 mm |
| Reduction factors | Aluminium = 0.35 to 0.5Stainless steel, St 18/8 = 0.6 to 1.0Copper = 0.25 to 0.45Brass = 0.35 to 0.5Steel, St 37 = 1.0 |
| Ambient temperature | '-25 ... 70 °C |
| Repetition accuracy | 0.2 mm |
| Switch output | PNP |
| Switching element function | Normally open contact |
