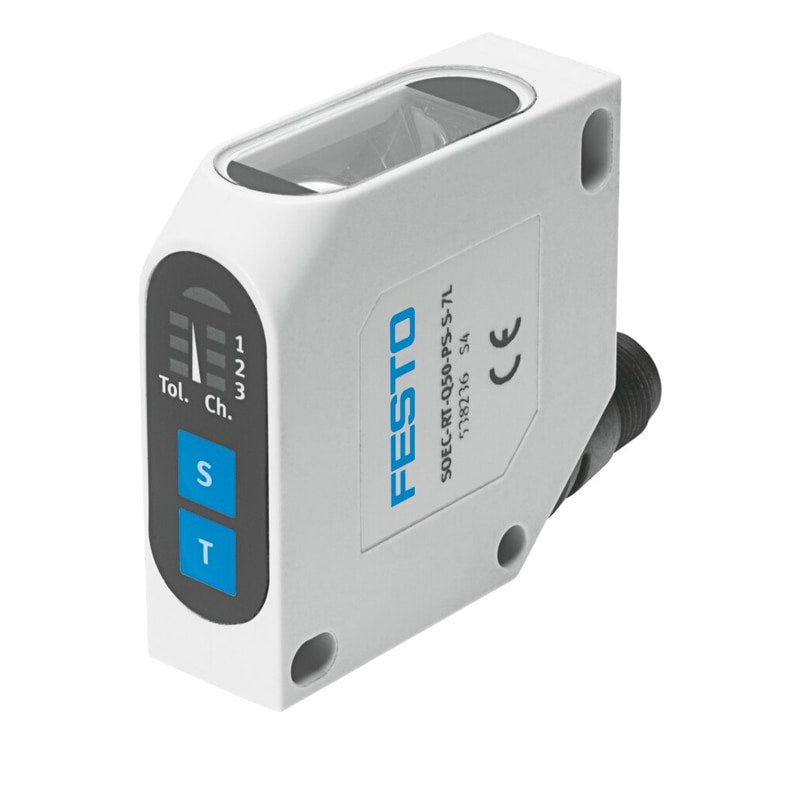

Color sensor
SOEC-RT-Q50-PS-S-7L
538236
GTIN 4052568175399
Vendor Festo
- Method of measurement
- Color sensor
- Working range
- 12 mm - 32 mm
- Size
- 50x50x17 mm
- Type of light
- White
- Electrical connection
- M12x1 - Plug
Regular price
$1,667.13
Unit price
SOEC-RT-Q50-PS-S-7L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOEC-RT-Q50-PS-S-7L
Regular price
$1,667.13
Unit price
SOEC-RT-Q50-PS-S-7L is backordered and will ship as soon as it is back in stock.
colour sensor SOEC-RT-Q50-PS-S-7L Block design Design=Block design, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE
| Design | Block design |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Measured variable | Position |
| Measuring principle | Optoelectronic |
| Measurement method | Colour sensor |
| Type of light | white |
| Max. spot diameter | 4 mm diameter with a sensing range of 22 mm |
| Working range | 12 ... 32 mm |
| Ambient temperature | '-10 ... 55 °C |
| Switch output | PNP |
