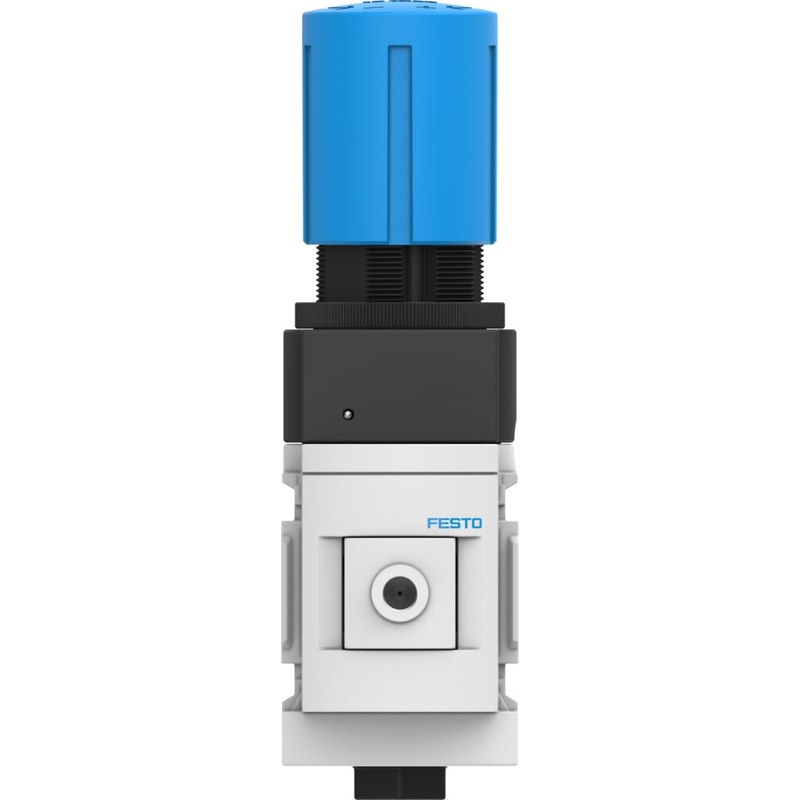

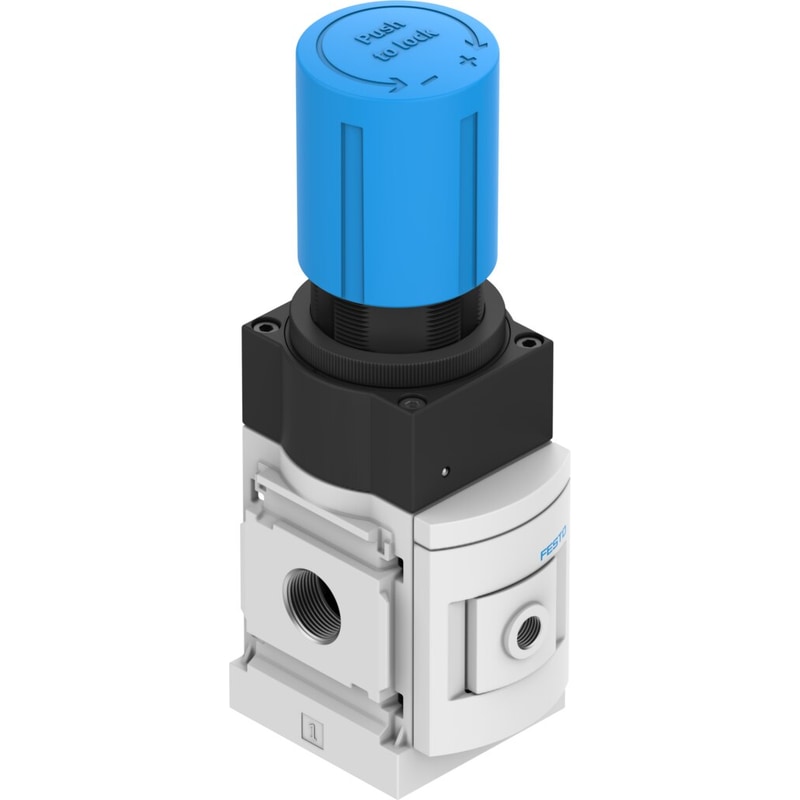

Precision pressure regulator
MS6N-LRP-1/2-D4-A8
538047
GTIN 4052568346188
Vendor Festo
- Pneumatic connection 1
- 1/2 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 2300 l/min
- Pressure regulation range
- 0.05 bar - 2.5 bar
- Max. pressure hysteresis
- 0.02 bar
Regular price
$205.15
Unit price
Precision pressure regulator MS6N-LRP-1/2-D4-A8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-LRP-1/2-D4-A8
Regular price
$205.15
Unit price
Precision pressure regulator MS6N-LRP-1/2-D4-A8 is backordered and will ship as soon as it is back in stock.
precision pressure regulator MS6N-LRP-1/2-D4-A8 indirectly controlled regulators, working pressure up to 2.5 bar. Size=6, Series=MS, Actuator lock=Rotary knob with lock, Assembly position=Any, Design structure=Piloted precision diaphragm regulator
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lock |
| Assembly position | Any |
| Design structure | Piloted precision diaphragm regulator |
| Controller function | Output pressure constantwith secondary exhaust |
| Pressure gauge | Prepared for G1/8 |
| Operating pressure | 1 ... 14 bar |
| Pressure regulation range | 0.05 ... 2.5 bar |
| Max. pressure hysteresis | 0.02 bar |
| Flow rate, secondary venting | >= 450 l/min |
| Standard nominal flow rate | >= 2,300 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
