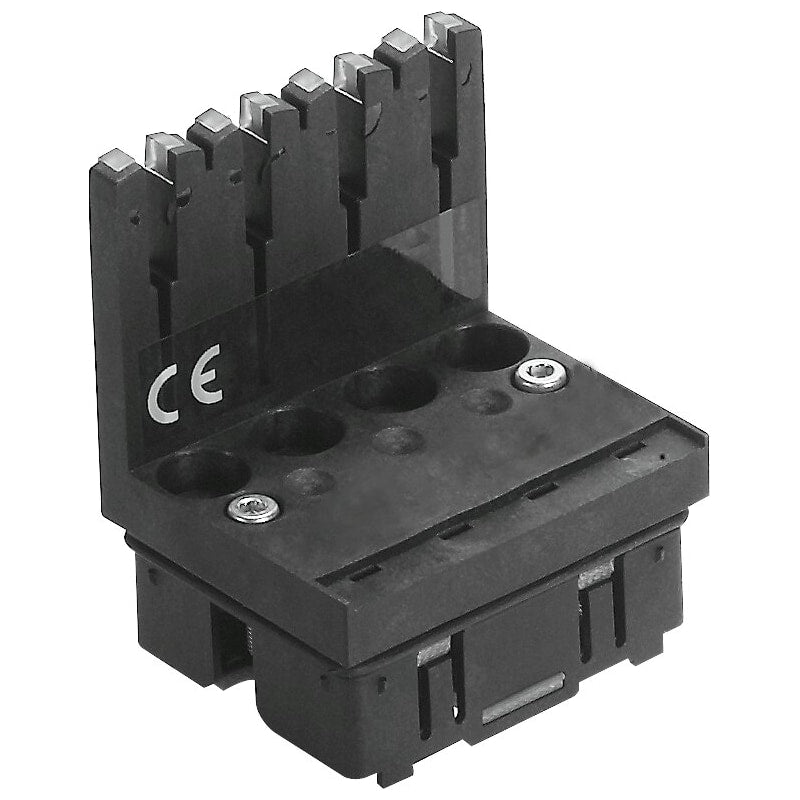

Electronics module
VMPA2-MPM-EMM-2
537985
GTIN 4052568088897
Vendor Festo
Regular price
$78.64
Unit price
VMPA2-MPM-EMM-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA2-MPM-EMM-2
Regular price
$78.64
Unit price
VMPA2-MPM-EMM-2 is backordered and will ship as soon as it is back in stock.
electrical module VMPA2-MPM-EMM-2 For valve terminal MPA-S with modular multi-pin plug connection, for 2 solenoid coils. Max. number of valve positions=2, Max. number of solenoid coils=2, Nominal breakaway current per solenoid coil=100 mA up to 30 ms, Nominal current with current reduction=20 mA after 30 ms, Corrosion resistance classification CRC=(* 1 - Low corrosion stress, * (when installed))
| Max. number of valve positions | 2 |
|---|---|
| Max. number of solenoid coils | 2 |
| Nominal breakaway current per solenoid coil | 100 mA up to 30 ms |
| Nominal current with current reduction | 20 mA after 30 ms |
| Corrosion resistance classification CRC | 1 - Low corrosion stress(when installed) |
| Product weight | 20 g |
| Material housing | POM |
| Materials note | Conforms to RoHS |
