Sub-base
VMPA2-IC-AP-1
537981
GTIN 4052568175054
Vendor Festo
Regular price
$136.62
Unit price
VMPA2-IC-AP-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA2-IC-AP-1
Regular price
$136.62
Unit price
VMPA2-IC-AP-1 is backordered and will ship as soon as it is back in stock.

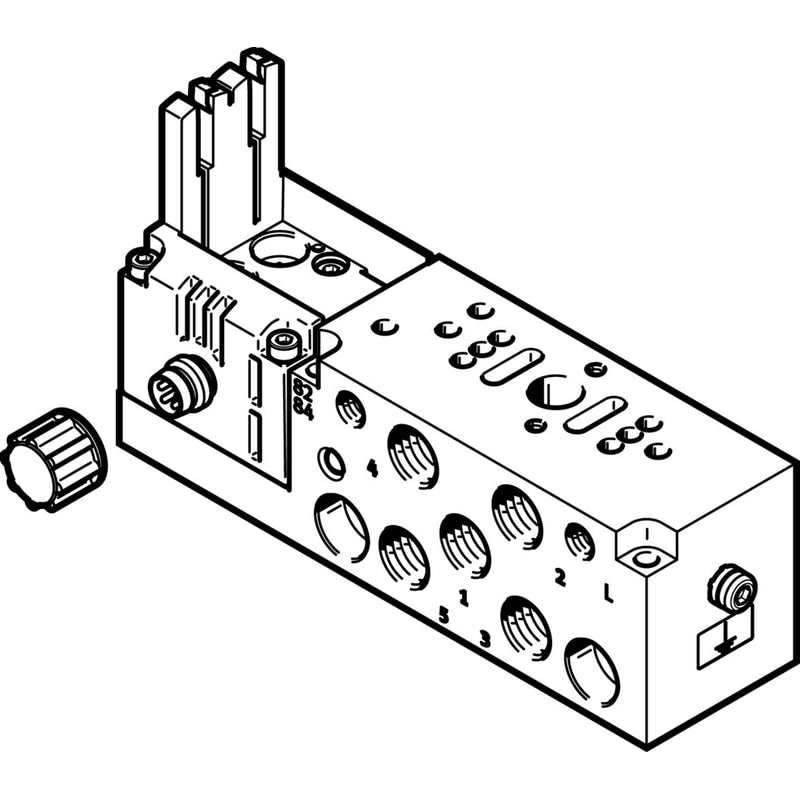

sub-base VMPA2-IC-AP-1 for individual valve MPA2 with internal pilot air supply. Width=30,5 mm, Length=107,3 mm, Grid dimension=21 mm, Operating pressure=3 - 8 bar, Pilot pressure=3 - 8 bar
| Width | 30.5 mm |
|---|---|
| Length | 107.3 mm |
| Grid dimension | 21 mm |
| Operating pressure | 3 ... 8 bar |
| Pilot pressure | 3 ... 8 bar |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
| Authorisation | c UL us - Recognized (OL) |
| Product weight | 233 g |
| Electrical connection | PlugM8 |
| Mounting method for sub-base | with through hole |
| Pneumatic connection, port 1 | G1/8 |
