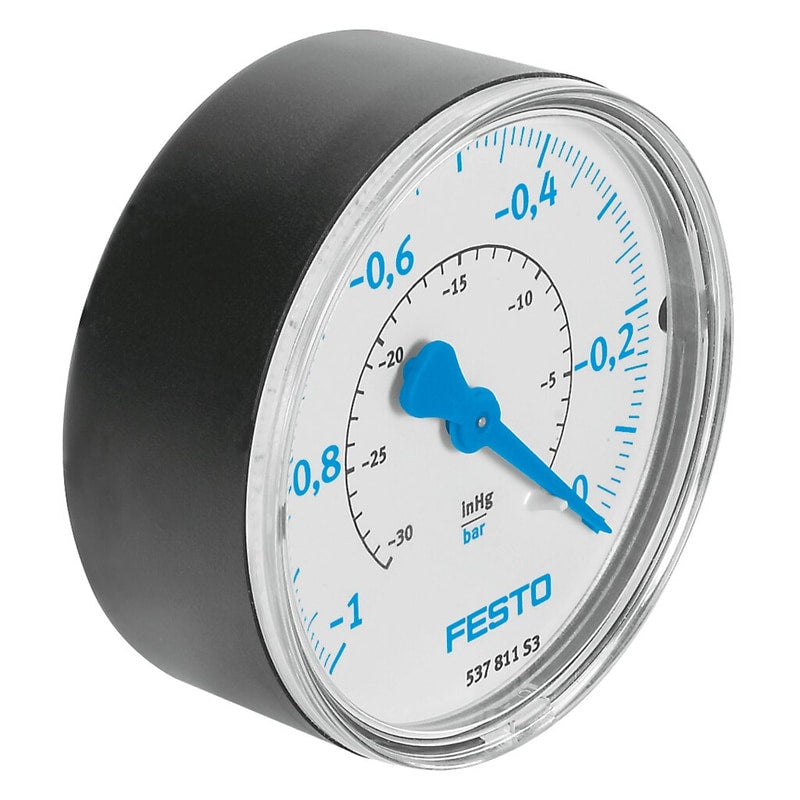

Vacuum gauge
VAM-63-V1/0-R1/4-EN
537811
GTIN 4052568049591
Vendor Festo
Regular price
$44.24
Unit price
Vacuum gauge VAM-63-V1/0-R1/4-EN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAM-63-V1/0-R1/4-EN
Regular price
$44.24
Unit price
Vacuum gauge VAM-63-V1/0-R1/4-EN is backordered and will ship as soon as it is back in stock.
vacuum gauge VAM-63-V1/0-R1/4-EN With display unit in bar. Nominal size of pressure gauge=63, Position of connection=Rear side central, Based on the standard=DIN EN 837-1, Type of seal on screw-in stud=coating, Assembly position=Any
| Nominal size of pressure gauge | 63 |
|---|---|
| Position of connection | Rear side central |
| Based on the standard | DIN EN 837-1 |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Bourdon-tube pressure gauge |
| Indicating range [bar] | '-1 ... 0 bar |
| Indicating range | '-30 ... 0 inchHg |
| Scale | Double scaleBar (external)Inch hg (inside) / psi (inside) |
| Operating pressure | '-1 ... 0 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Continuous load factor | 0.75 |
