Transmitter
SOEG-S-M18-K-L
537691
GTIN 4052568088644
Vendor Festo
- Method of measurement
- Through-beam sensor - Transmitter
- Working range
- 20000 mm
- Size
- M18x1
- Type of light
- Red
- Electrical connection
- Cable
Regular price
$78.03
Unit price
SOEG-S-M18-K-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

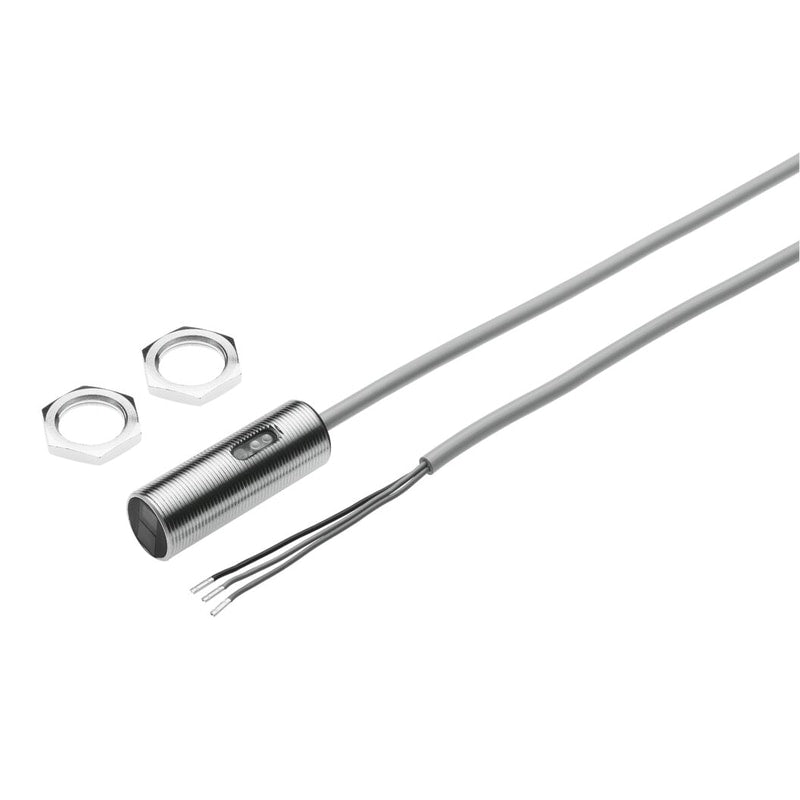

SOEG-S-M18-K-L
Regular price
$78.03
Unit price
SOEG-S-M18-K-L is backordered and will ship as soon as it is back in stock.
transmitter SOEG-S-M18-K-L Round design Design=Round, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE
| Design | Round |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Measured variable | Position |
| Measuring principle | Optoelectronic |
| Measurement method | Through-beam sensorTransmitter |
| Type of light | Red |
| Working range | 20,000 mm |
| Ambient temperature | '-25 ... 55 °C |
| Short circuit strength | Pulsing |
| Operating voltage range DC | 10 ... 36 V |
