Diffuse scan

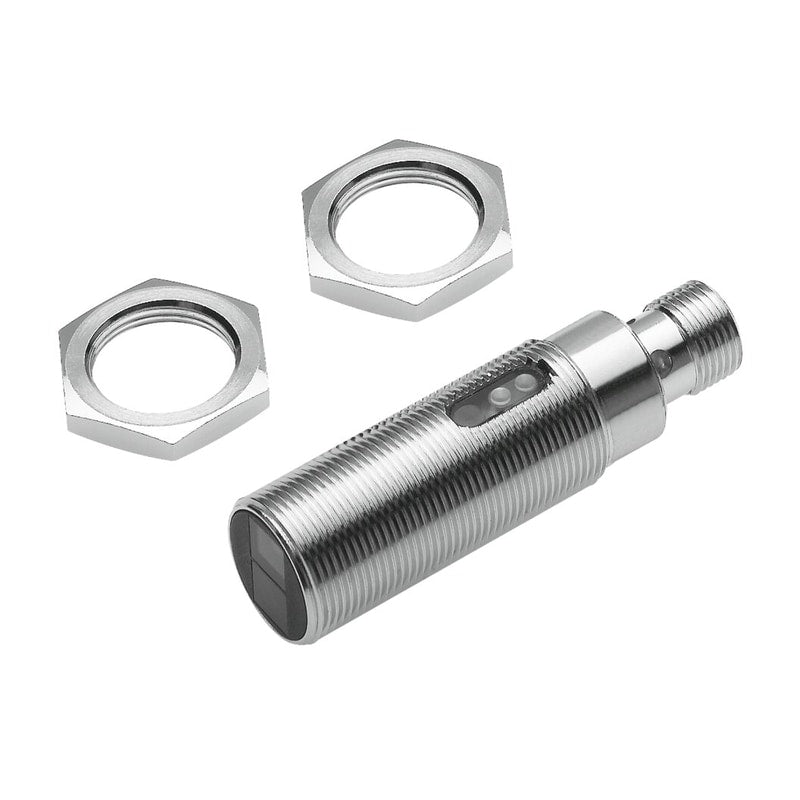

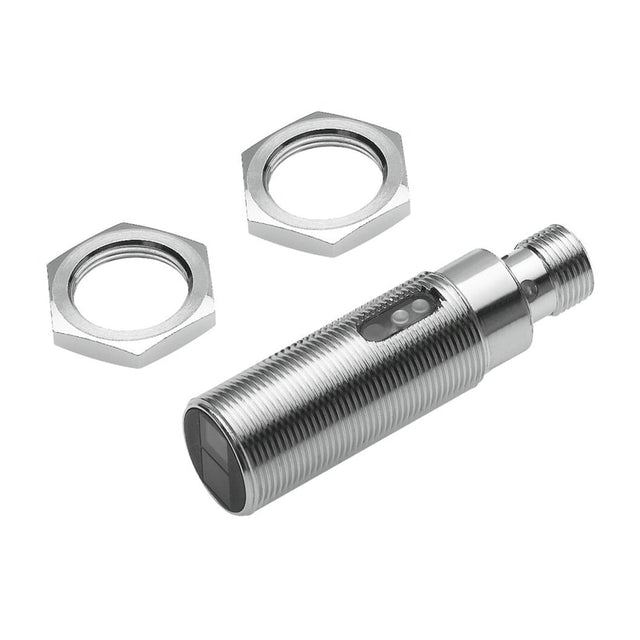

SOEG-RTH-M18-PS-S-2L
537689
GTIN 4052568174002
Vendor Festo
- Method of measurement
- Diffuse sensor with background suppression
- Working range
- 10 mm - 120 mm
- Size
- M18x1
- Type of light
- Red
- Switching element function
- Bright-switching
Regular price
$184.86
Unit price
SOEG-RTH-M18-PS-S-2L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOEG-RTH-M18-PS-S-2L
Regular price
$184.86
Unit price
SOEG-RTH-M18-PS-S-2L is backordered and will ship as soon as it is back in stock.
diffuse sensor SOEG-RTH-M18-PS-S-2L With background suppression, round design Design=Round, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE
| Design | Round |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Measured variable | Position |
| Measuring principle | Optoelectronic |
| Measurement method | Diffuse reflection sensor with background suppression |
| Type of light | Red |
| Working range | 10 ... 120 mm |
| Ambient temperature | '-25 ... 55 °C |
| Switch output | PNP |
| Switching element function | Light switching |
