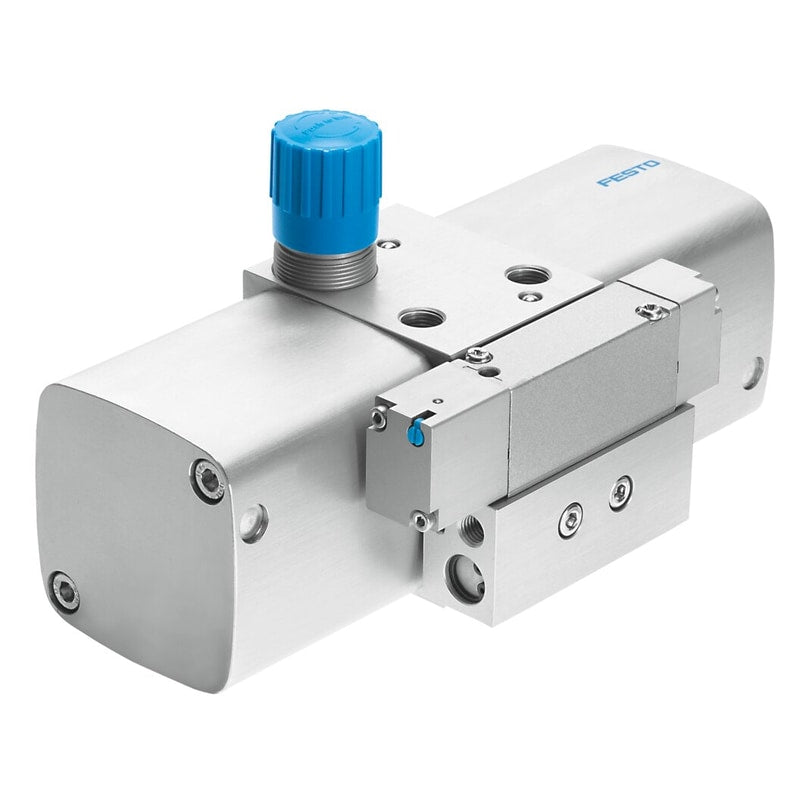

Pressure booster
DPA-40-10
537273
GTIN 4052568006990
Vendor Festo
- Pneumatic connection 1
- G1/4
- Inlet pressure 1
- 2.5 bar - 8 bar
- Outlet pressure 2
- 4.5 bar - 10 bar
Regular price
$1,633.43
Unit price
DPA-40-10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DPA-40-10
Regular price
$1,633.43
Unit price
DPA-40-10 is backordered and will ship as soon as it is back in stock.
pressure booster DPA-40-10 for generating higher pressures. Piston diameter=40 mm, Assembly position=Any, Design structure=Twin-piston pressure booster, Pressure gauge=Prepared for G1/8, Output pressure 2=4,5 - 10 bar
| Piston diameter | 40 mm |
|---|---|
| Assembly position | Any |
| Design structure | Twin-piston pressure booster |
| Pressure gauge | Prepared for G1/8 |
| Output pressure 2 | 4.5 ... 10 bar |
| Operating pressure | 2.5 ... 8 bar |
| Pressure regulation range | 4.5 ... 10 bar |
| Inlet pressure 1 | 2.5 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:3:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | 5 ... 60 °C |
| Ambient temperature | 5 ... 60 °C |
