Air line lubricator
MS12-LOE-G-U
537156
GTIN 4052568172312
Vendor Festo
- Pneumatic connection 1
- Internal
- Normal nominal flow rate (normalized to DIN 1343)
- 20000 l/min - 22000 l/min
- Operating pressure
- 1 bar - 16 bar
- Minimum flow rate for lubricator function
- 400 l/min
Regular price
$442.77
Unit price
Air line lubricator MS12-LOE-G-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-LOE-G-U
Regular price
$442.77
Unit price
Air line lubricator MS12-LOE-G-U is backordered and will ship as soon as it is back in stock.

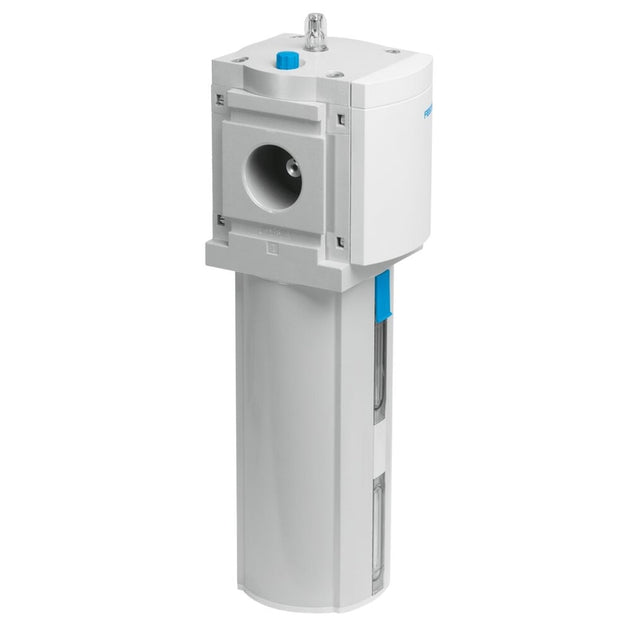

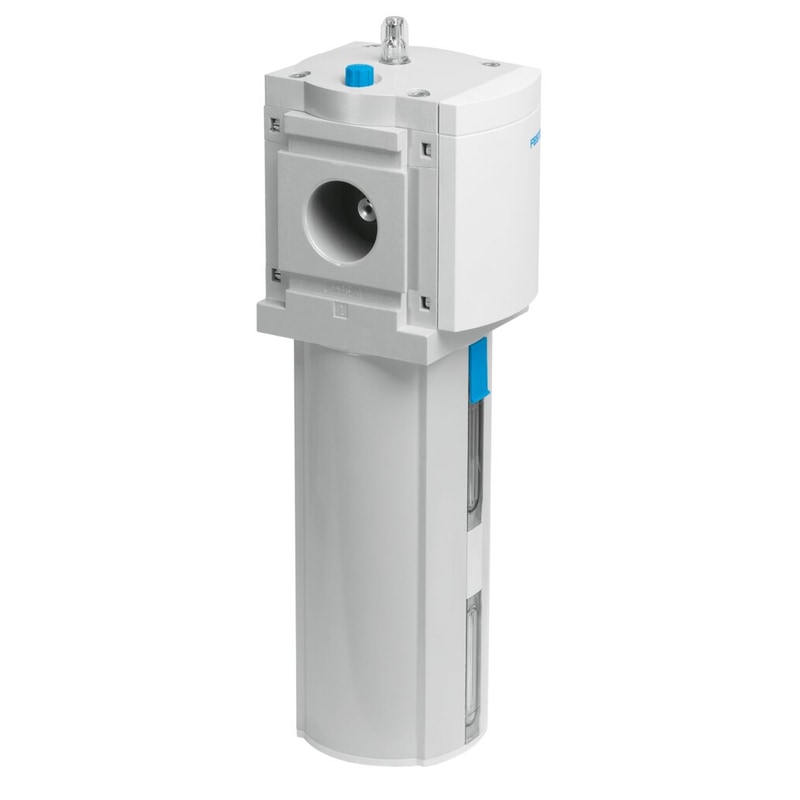

lubricator MS12-LOE-G-U Metal bowl, direction of flow: from left to right. Size=12, Series=MS, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=1500 cm3
| Size | 12 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Design structure | proportional standard mist lubricator |
| Max. oil capacity | 1,500 cm3 |
| Bowl guard | integrated as metal shell |
| Operating pressure | 1 ... 16 bar |
| Minimum flow rate for lubricator function | 400 l/min |
| Standard nominal flow rate | 20,000 ... 22,000 l/min |
| Operating medium | Air quality class 5:7:- per DIN ISO 8573-1 |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Medium temperature | 0 ... 60 °C |
