Micro filter
MS12-LFM-G-AUV
537154
GTIN 4052568172299
Vendor Festo
- Structural design
- Fiber filter
- Operating pressure
- 2 bar - 12 bar
- Ambient temperature
- 5 °C - 60 °C
- Grade of filtration
- 0.01 µm
Regular price
$952.36
Unit price
MS12-LFM-G-AUV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-LFM-G-AUV
Regular price
$952.36
Unit price
MS12-LFM-G-AUV is backordered and will ship as soon as it is back in stock.

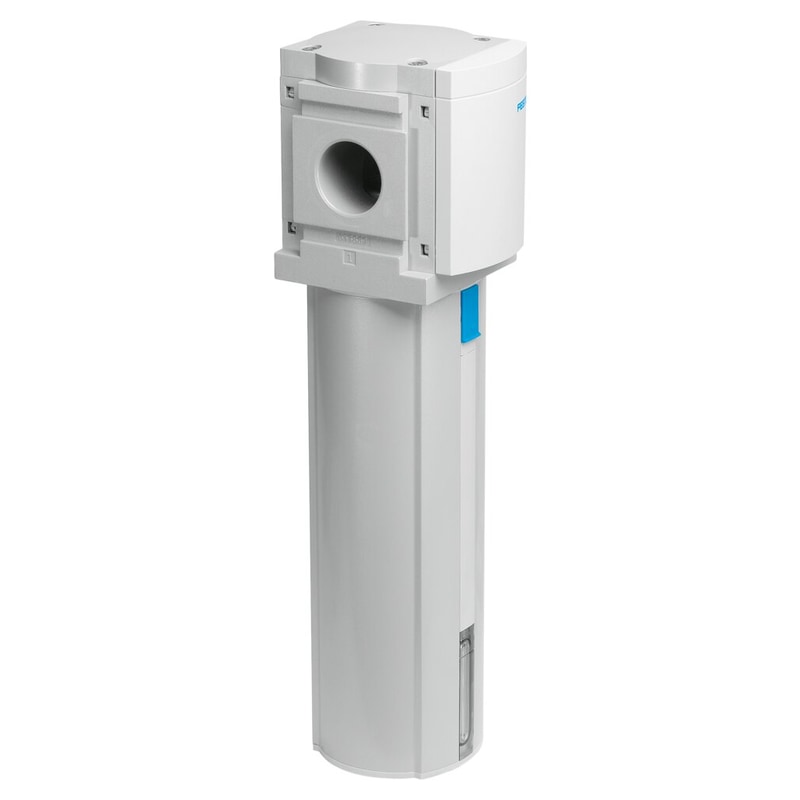

micro filter MS12-LFM-G-AUV 0.01 µm filter, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Series=MS, Size=12, Design structure=Fibre filter, Grade of filtration=0,01 µm, Condensate drain=(* fully automatic, * manual momentary-contact)
| Series | MS |
|---|---|
| Size | 12 |
| Design structure | Fibre filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | fully automaticmanual momentary-contact |
| Operating pressure | 2 ... 12 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:8:4]Inert gases |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [1:7:2] |
| Filter efficiency | 0.999999 |
| Max. condensate volume | 400 cm3 |
| Bowl guard | integrated as metal shell |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | 5 ... 60 °C |
