MS12-LF-G-EUV
537151
GTIN 4052568172268
Vendor Festo
- Pneumatic connection 1
- Internal
- Normal nominal flow rate (normalized to DIN 1343)
- 12500 l/min - 16000 l/min
- Ambient temperature
- 5 °C - 60 °C
- Operating pressure
- 2 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$441.84
Unit price
MS12-LF-G-EUV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-LF-G-EUV
Regular price
$441.84
Unit price
MS12-LF-G-EUV is backordered and will ship as soon as it is back in stock.

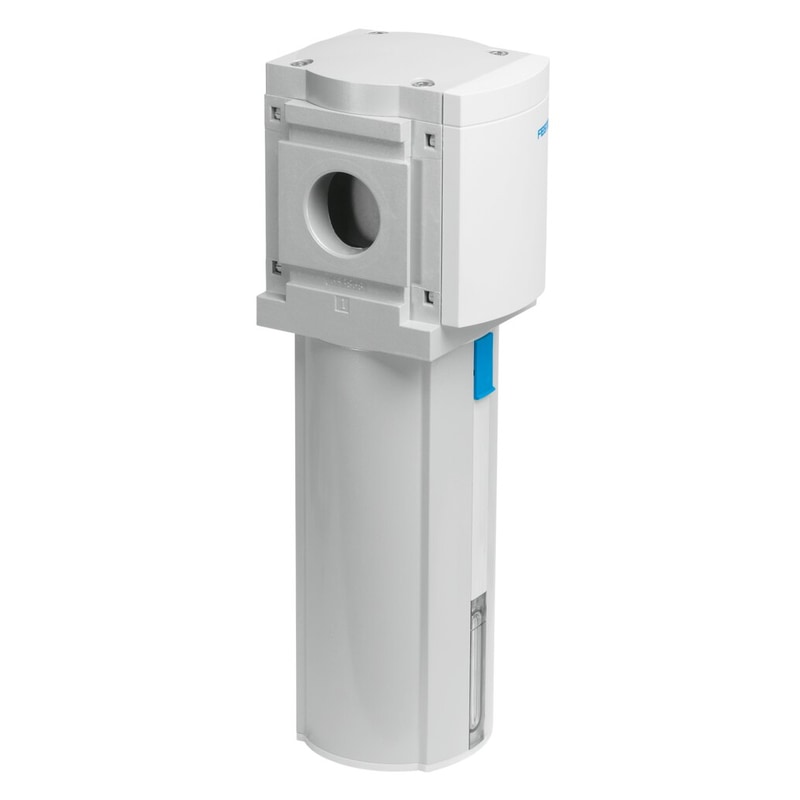

filter MS12-LF-G-EUV 40 µm filter, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Size=12, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=(* fully automatic, * manual momentary-contact)
| Size | 12 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | fully automaticmanual momentary-contact |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 400 cm3 |
| Bowl guard | integrated as metal shell |
| Operating pressure | 2 ... 12 bar |
| Standard nominal flow rate | 12,500 ... 16,000 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | 5 ... 60 °C |
