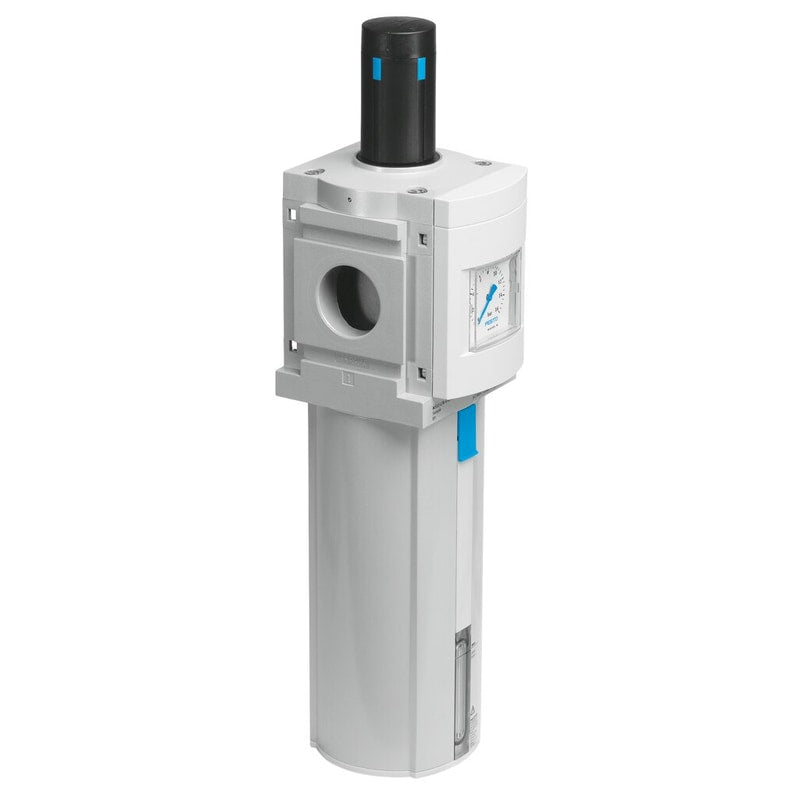

Filter regulator
MS12-LFR-G-D7-CUV-LD-AS
537150
GTIN 4052568172251
Vendor Festo
- Pneumatic connection 1
- Internal
- Normal nominal flow rate (normalized to DIN 1343)
- 11000 l/min - 14000 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$636.88
Unit price
MS12-LFR-G-D7-CUV-LD-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-LFR-G-D7-CUV-LD-AS
Regular price
$636.88
Unit price
MS12-LFR-G-D7-CUV-LD-AS is backordered and will ship as soon as it is back in stock.
filter regulator MS12-LFR-G-D7-CUV-LD-AS Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Size=12, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 12 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | fully automaticmanual momentary-contact |
| Design structure | Filter regulator with pressure gaugeSintered filter with centrifugal separatorWith condensate drainwith secondary exhaustmodularPilot actuated diaphragm regulator |
| Max. condensate volume | 400 cm3 |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | integrated as metal shell |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 ... 12 bar |
| Pressure regulation range | 0.5 ... 12 bar |
