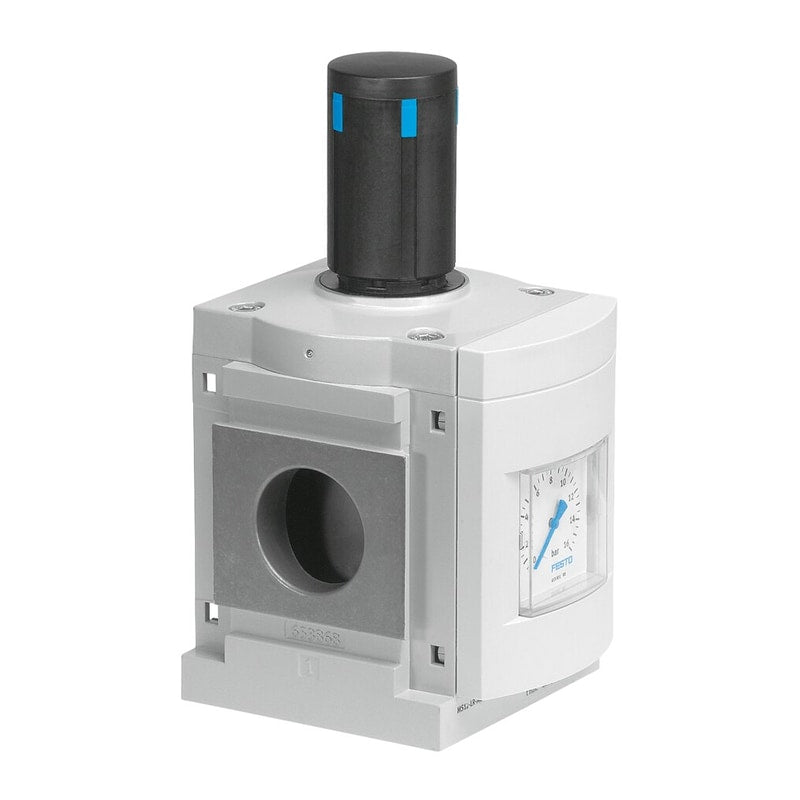

Pressure regulator
MS12-LR-G-D7-LD-AS
537148
GTIN 4052568172237
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Normal nominal flow rate (normalized to DIN 1343)
- 13000 l/min - 22000 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Max. pressure hysteresis
- 0.4 bar
Regular price
$373.50
Unit price
Pressure regulator MS12-LR-G-D7-LD-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-LR-G-D7-LD-AS
Regular price
$373.50
Unit price
Pressure regulator MS12-LR-G-D7-LD-AS is backordered and will ship as soon as it is back in stock.

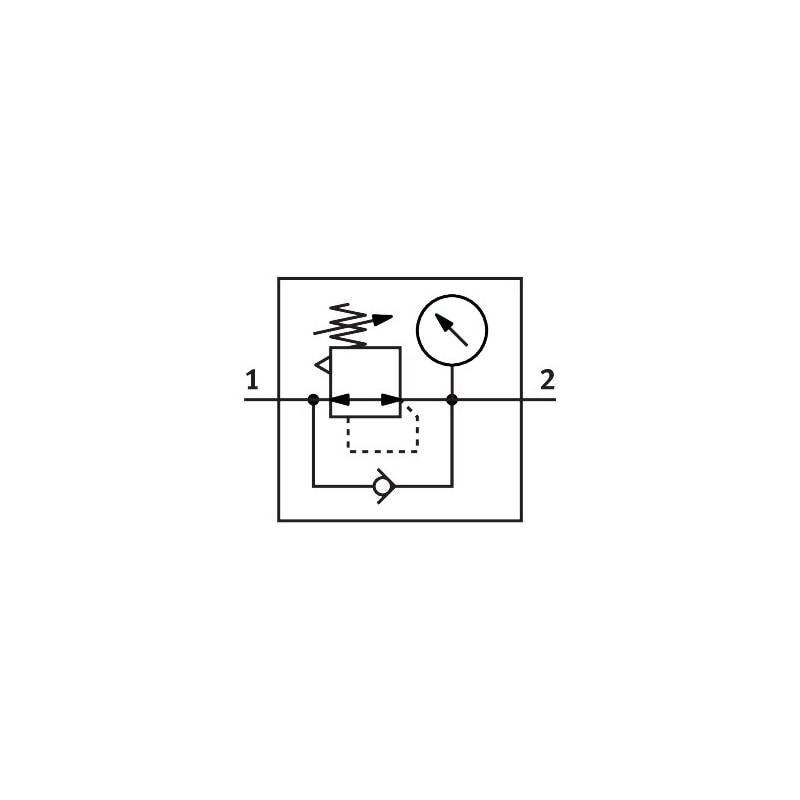

pressure regulator MS12-LR-G-D7-LD-AS 12 bar maximum output pressure, with pressure gauge, lockable regulator head, direction of flow: from left to right. Size=12, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=Pilot actuated diaphragm regulator
| Size | 12 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Any |
| Design structure | Pilot actuated diaphragm regulator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.8 ... 21 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Max. pressure hysteresis | 0.4 bar |
| Flow rate, secondary venting | <= 600 l/min |
| Standard nominal flow rate | 13,000 ... 22,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
