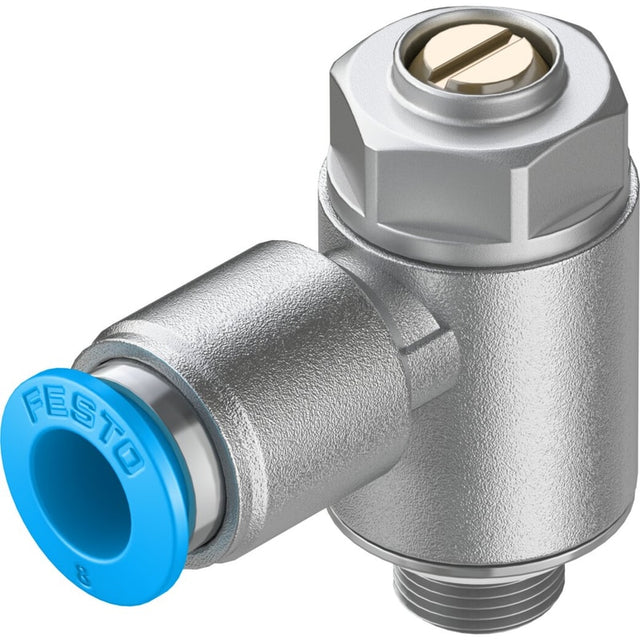

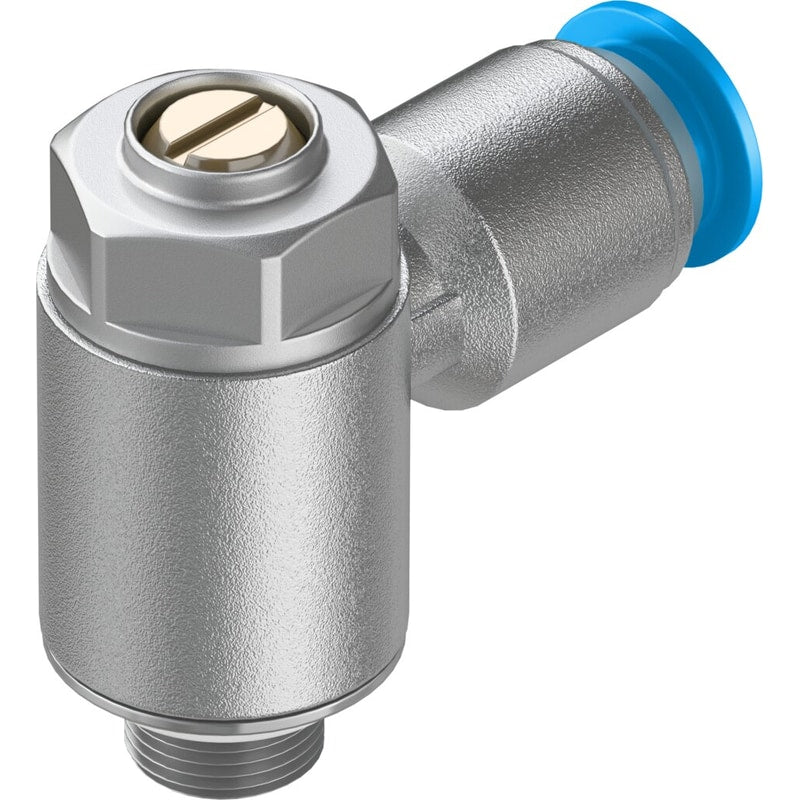

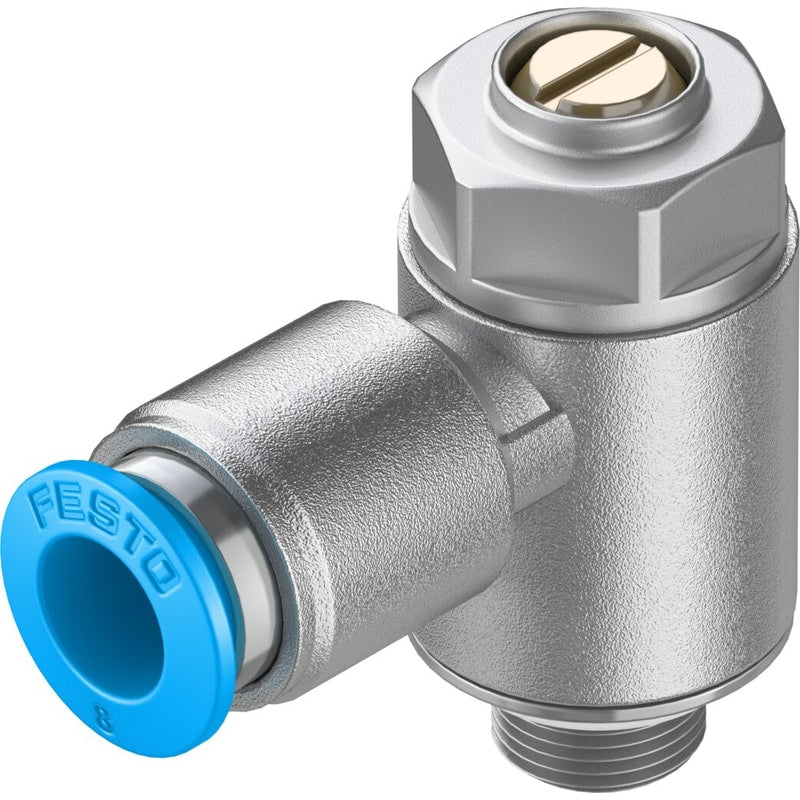

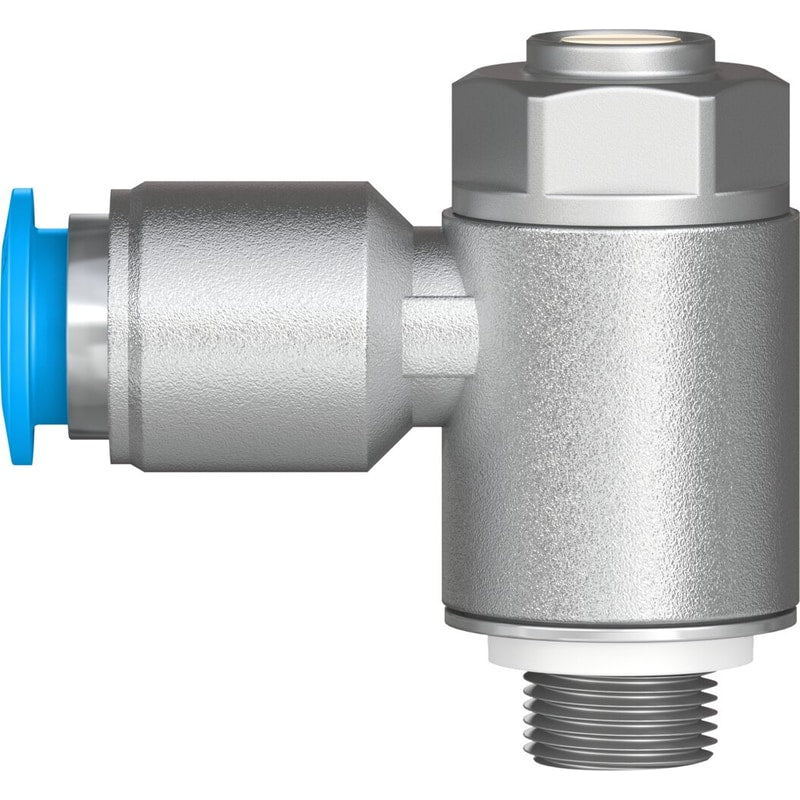

One-way flow control valve
GRLA-1/8-QS-8-MF-D
537076
GTIN 4052568049164
Vendor Festo
- Valve function
- Flow control non-return function
- Standard nominal flow rate in flow control direction
- 475 l/min
- Pneumatic connection 1
- QS-8
Regular price
$28.98
Unit price
GRLA-1/8-QS-8-MF-D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLA-1/8-QS-8-MF-D
Regular price
$28.98
Unit price
GRLA-1/8-QS-8-MF-D is backordered and will ship as soon as it is back in stock.
one-way flow control valve GRLA-1/8-QS-8-MF-D For exhaust air flow control, with high flow rate. Valve function=One-way flow control function, Pneumatic connection, port 1=QS-8, Pneumatic connection, port 2=G1/8, Mounting type=(* Threaded, * with external (male) thread), Standard nominal flow rate in flow control direction=475 l/min
| Valve function | One-way flow control function |
|---|---|
| connection 1 | 8 |
| connection 2 | G1/8 |
| Mounting type | Threadedwith external (male) thread |
| Standard nominal flow rate in flow control direction | 475 l/min |
| Standard nominal flow rate in non-return direction | 325 ... 500 l/min |
| Ambient temperature | '-10 ... 60 °C |
| Assembly position | Any |
| Operating pressure complete temperature range | 0.2 ... 10 bar |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 720 l/min |
| Standard flow rate in blocked direction: 6 -> 0 bar | 610 ... 760 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Design | Elbow |
