Fine filter
MS6N-LFM-1/4-BUV-DA
536863
GTIN 4052568345662
Vendor Festo
- Pneumatic connection 1
- 1/4 NPT
- Operating pressure
- 2 bar - 12 bar
- Ambient temperature
- -10 °C - 60 °C
- Grade of filtration
- 1 µm
Regular price
$169.02
Unit price
MS6N-LFM-1/4-BUV-DA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-LFM-1/4-BUV-DA
Regular price
$169.02
Unit price
MS6N-LFM-1/4-BUV-DA is backordered and will ship as soon as it is back in stock.

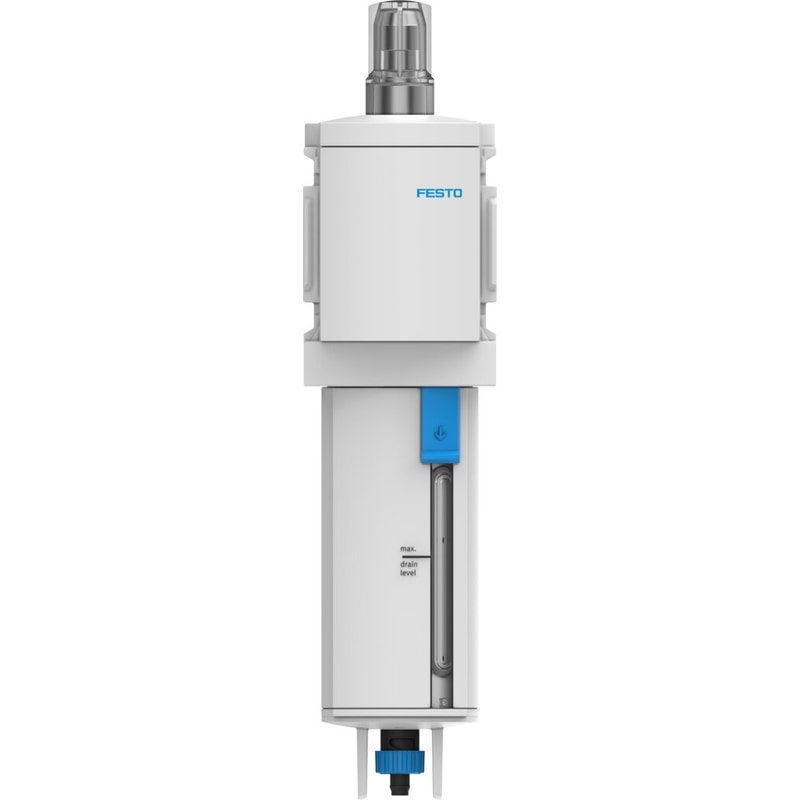

fine filter MS6N-LFM-1/4-BUV-DA 1 µm filter, metal bowl guard, fully automatic condensate drain, with differential pressure indicator, flow direction from left to right. Series=MS, Size=6, Design structure=Fibre filter, Grade of filtration=1 µm, Condensate drain=fully automatic
| Series | MS |
|---|---|
| Size | 6 |
| Design structure | Fibre filter |
| Grade of filtration | 1 µm |
| Condensate drain | fully automatic |
| Operating pressure | 2 ... 12 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:8:4]Inert gases |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [5:7:3] |
| Max. standard flow rate for air quality class | 950 l/min |
| Min. standard flow rate for air quality class | 140 l/min |
| Filter efficiency | 0.9999 |
| Max. condensate volume | 38 cm3 |
| Bowl guard | integrated as metal shell |
