Vacuum generator
VN-07-L-T4-PQ2-VQ2-O1-P
536802
GTIN 4052568171902
Vendor Festo
- Nominal width of Laval nozzle
- 0.7 mm
- Max. suction rate with respect to atmosphere
- 30.9 l/min
Regular price
$239.14
Unit price
VN-07-L-T4-PQ2-VQ2-O1-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-07-L-T4-PQ2-VQ2-O1-P
Regular price
$239.14
Unit price
VN-07-L-T4-PQ2-VQ2-O1-P is backordered and will ship as soon as it is back in stock.

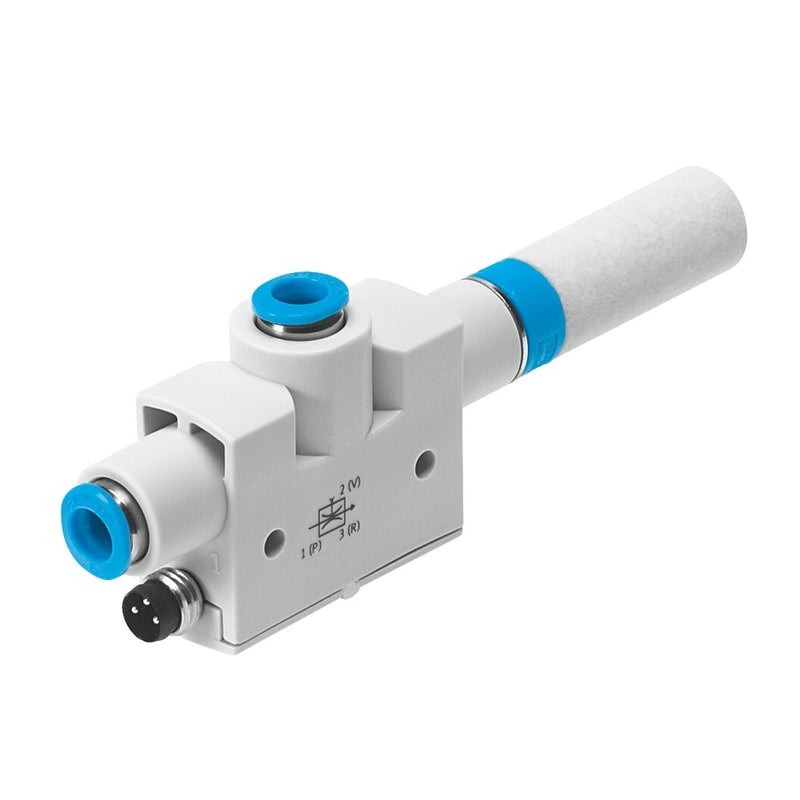

vacuum generator VN-07-L-T4-PQ2-VQ2-O1-P With integrated vacuum switch. Standard, high suction rate, width 18 mm, T shape with plug connector and open silencer. Nominal size, Laval nozzle=0,7 mm, Grid dimension=16 mm, Design, silencer=open, Assembly position=Any, Ejector characteristic=(* High suction flow rate, * Standard)
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Grid dimension | 16 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | High suction flow rateStandard |
| Integrated function | Open silencerVacuum switch |
| Design structure | T-shaped |
| Short circuit strength | Pulsing |
| Measured variable | Relative pressure |
| Measuring principle | Piezoresistive |
| Measurement method | Relative |
| Switching element function | Normally open contact |
| Switching function | Threshold value comparatorThreshold value with fixed hysteresis |
