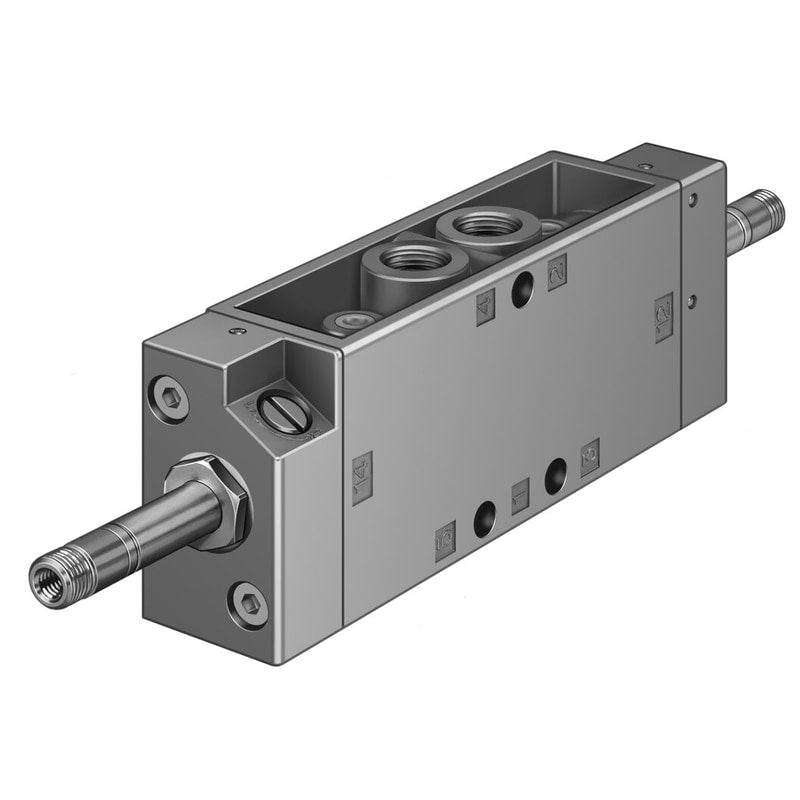

Air solenoid valve
JMFDH-5-1/4-EX
536194
GTIN 4052568170929
Vendor Festo
Regular price
$405.05
Unit price
JMFDH-5-1/4-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMFDH-5-1/4-EX
Regular price
$405.05
Unit price
JMFDH-5-1/4-EX is backordered and will ship as soon as it is back in stock.

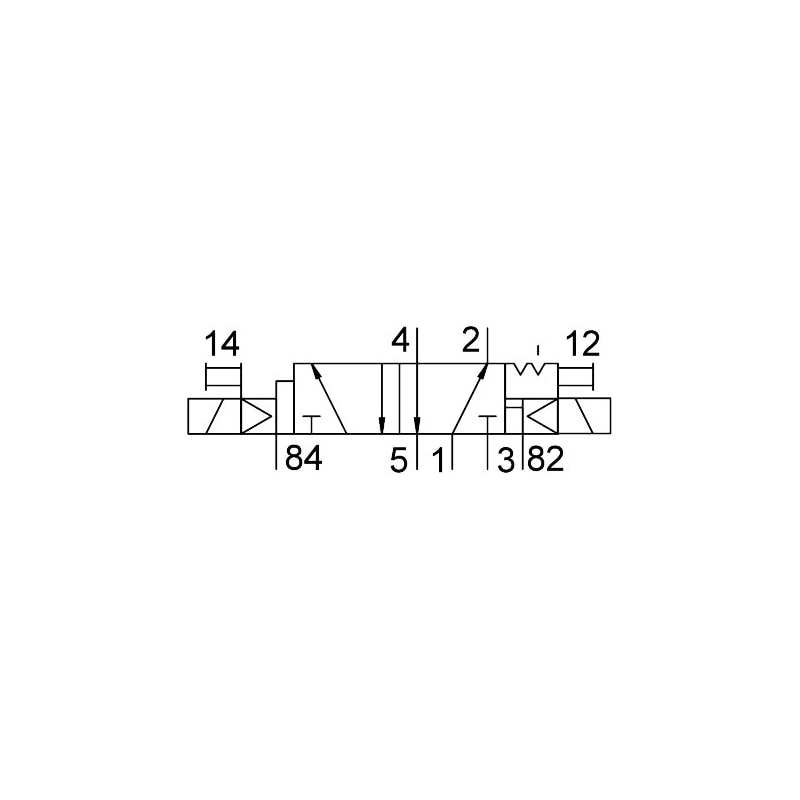

solenoid valve JMFDH-5-1/4-EX With manual override. Valve function=5/2 bistable-dominant, Type of actuation=electrical, Valve size=30,5 mm, Width=30,5 mm, Standard nominal flow rate=1100 l/min
| Valve function | 5/2 bistable-dominant |
|---|---|
| Type of actuation | electrical |
| Valve size | 30.5 mm |
| Width | 30.5 mm |
| Standard nominal flow rate | 1,100 l/min |
| Operating pressure | 2.5 ... 8 bar |
| Design structure | Poppet seat |
| Protection class | IP65 |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
