Air solenoid valve
NVF3-MOH-5/2-K-1/4-EX
535987
GTIN 4052568170370
Vendor Festo
- Valve function
- 5/2 or 3/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Electrical
Regular price
$232.56
Unit price
NVF3-MOH-5/2-K-1/4-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NVF3-MOH-5/2-K-1/4-EX
Regular price
$232.56
Unit price
NVF3-MOH-5/2-K-1/4-EX is backordered and will ship as soon as it is back in stock.

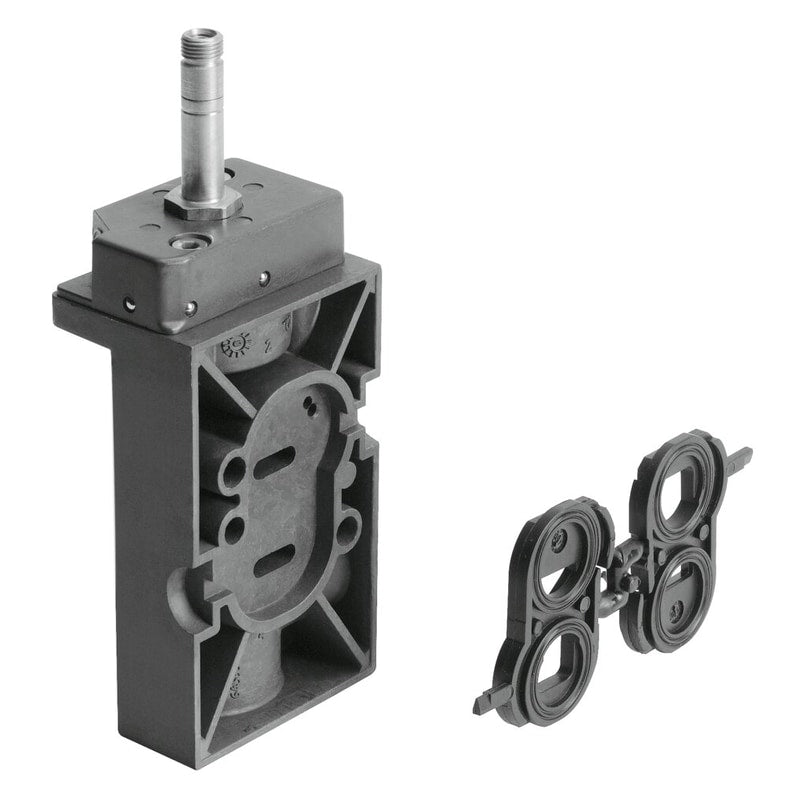

solenoid valve NVF3-MOH-5/2-K-1/4-EX With NAMUR port pattern to VDE/VDI 3845, without solenoid coil, without socket. Valve function=5/2-way or 3/2-way, single solenoid, Type of actuation=electrical, Width=53 mm, Standard nominal flow rate=900 l/min, Operating pressure=2 - 10 bar

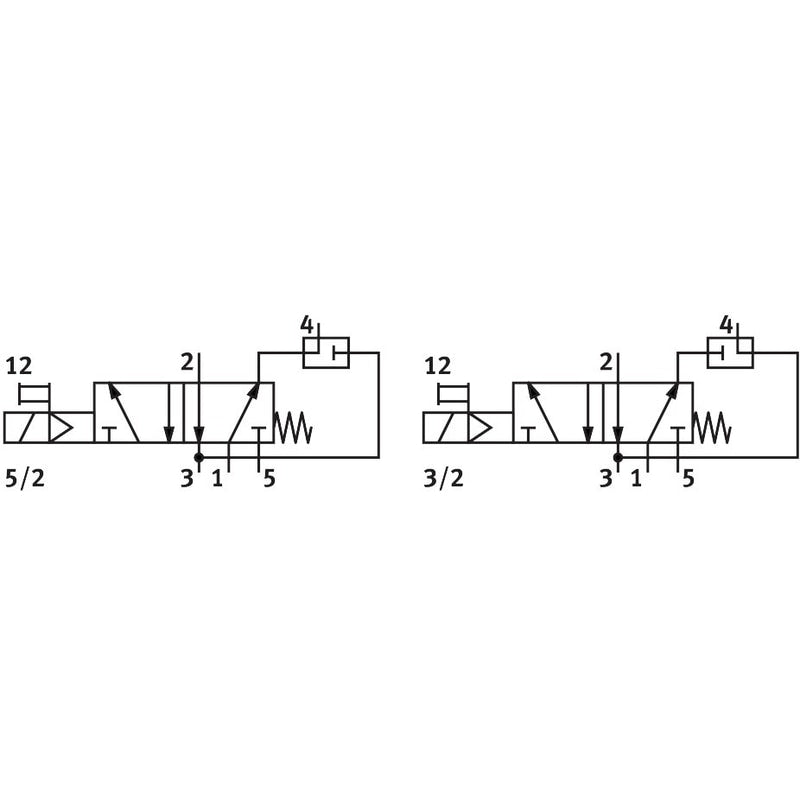

| Valve function | 5/2-way or 3/2-way, single solenoid |
|---|---|
| Type of actuation | electrical |
| Width | 53 mm |
| Standard nominal flow rate | 900 l/min |
| Operating pressure | 2 ... 10 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Nominal size | 7 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | detentingPushing |
