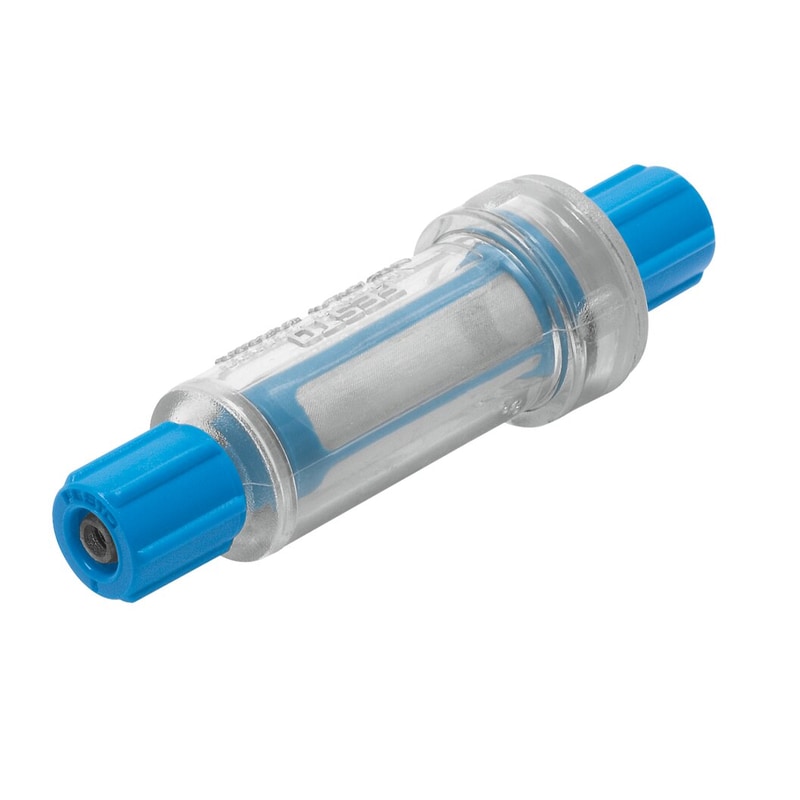

Vacuum filter
VAF-PK-3
535883
GTIN 4052568049072
Vendor Festo
Regular price
$14.51
Unit price
VAF-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAF-PK-3
Regular price
$14.51
Unit price
VAF-PK-3 is backordered and will ship as soon as it is back in stock.
vacuum filter VAF-PK-3 In-line design. Nominal size=2 mm, Assembly position=Any, Grade of filtration=50 µm, Operating pressure=-0,95 - 0 bar, Note on operating pressure=Only for application in open vacuum systems
| Nominal size | 2 mm |
|---|---|
| Assembly position | Any |
| Grade of filtration | 50 μm |
| Operating pressure | '-0.95 ... 0 bar |
| Note on operating pressure | Only for application in open vacuum systems |
| Flow rate at vacuum pressure of -0.75 bar | 50.8 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | 0 ... 40 °C |
| Product weight | 4 g |
| Mounting type | Line installation |
| Pneumatic connection | PK-3 with union nut |
| Material of union nut | POM |
| Materials note | Conforms to RoHS |
