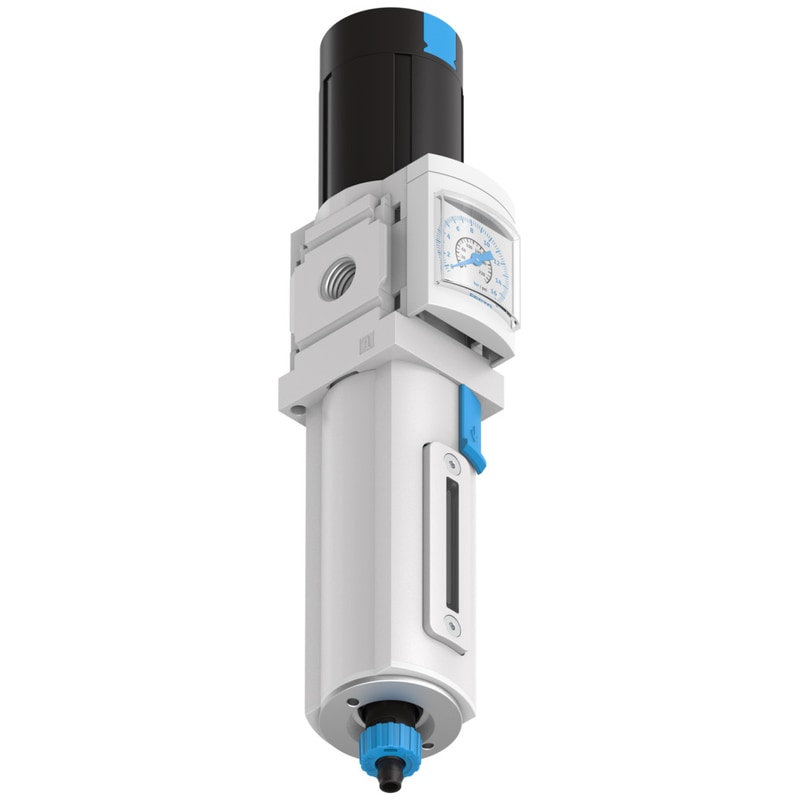

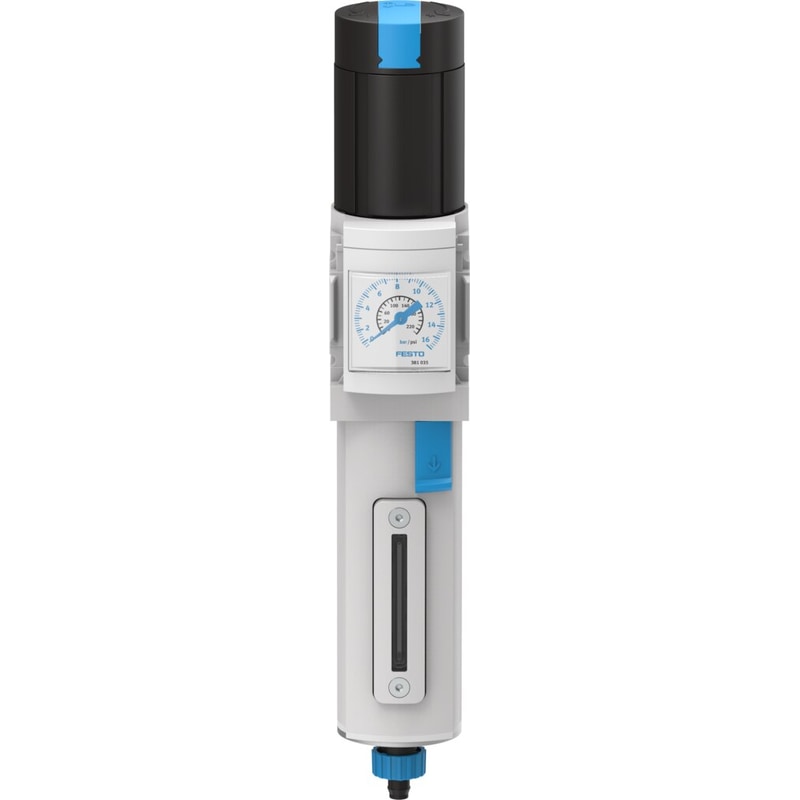

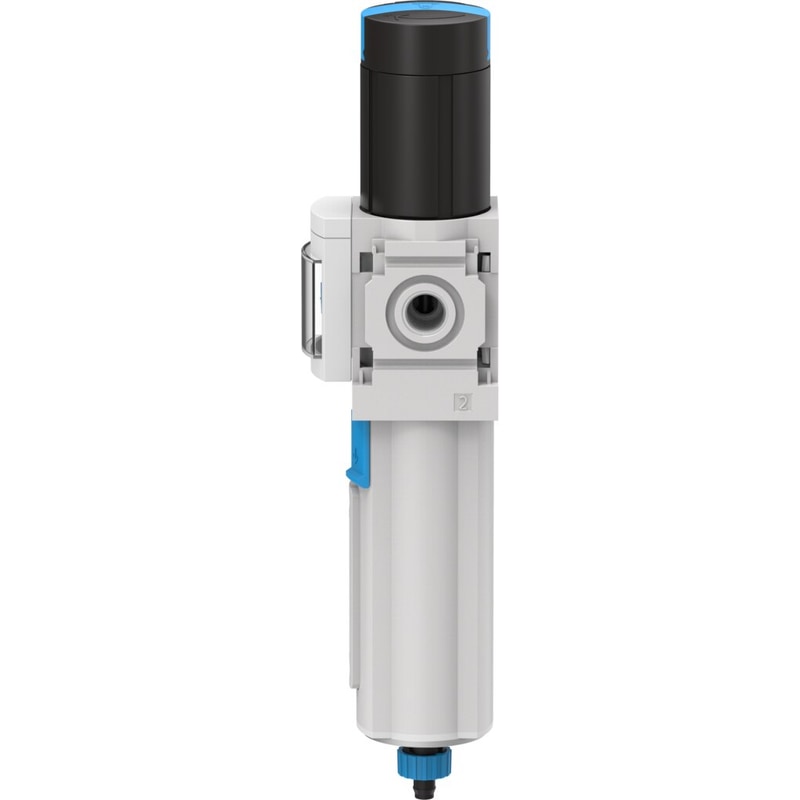

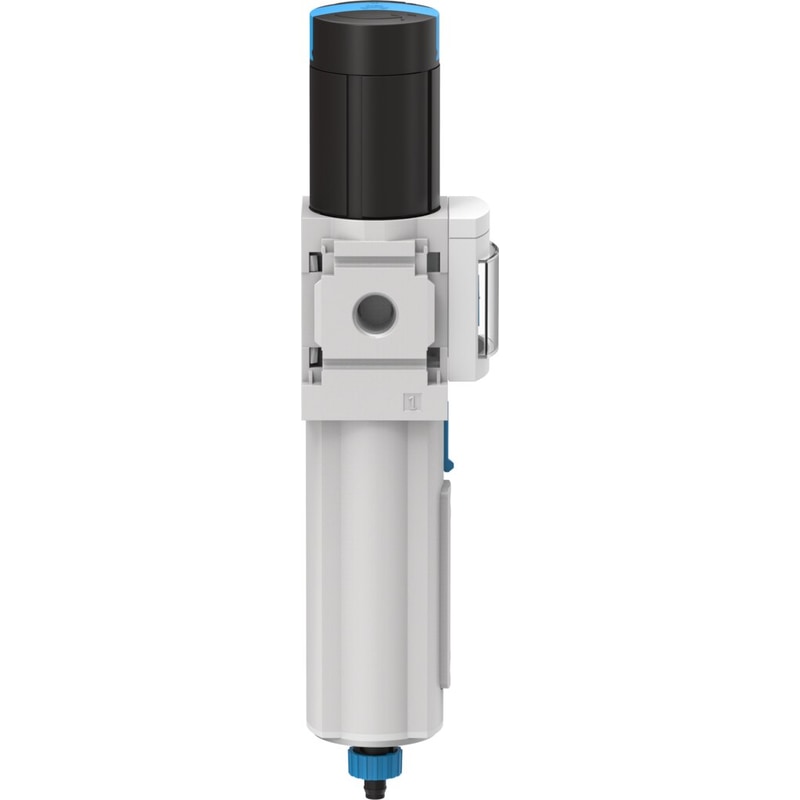

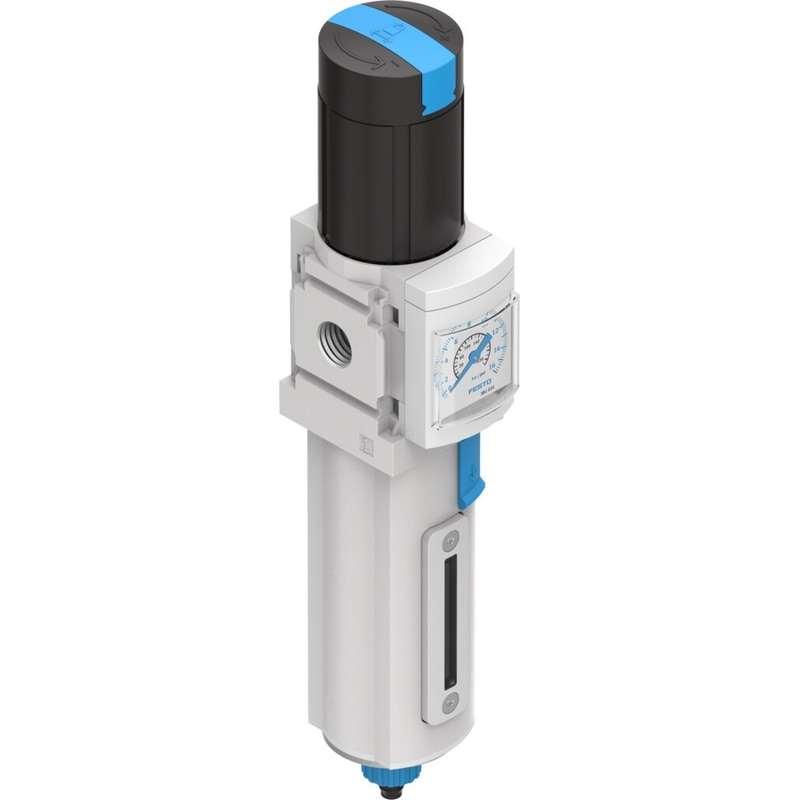

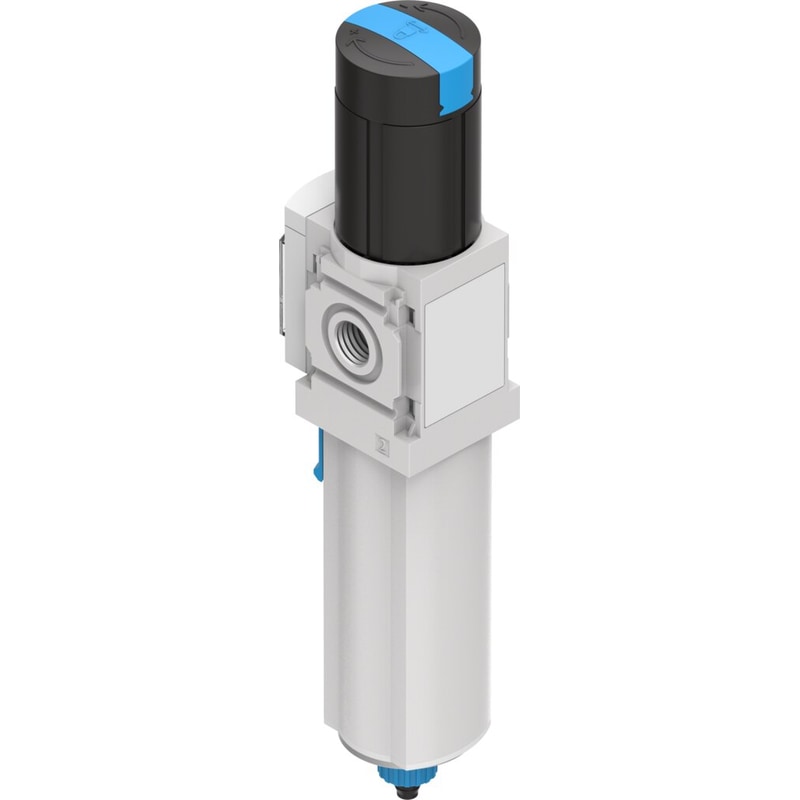

Filter regulator
MS4N-LFR-1/4-D7-CUV-AS-Z
535753
GTIN 4052568343675
Vendor Festo
- Pneumatic connection 1
- 1/4 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 1200 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$121.49
Unit price
MS4N-LFR-1/4-D7-CUV-AS-Z is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4N-LFR-1/4-D7-CUV-AS-Z
Regular price
$121.49
Unit price
MS4N-LFR-1/4-D7-CUV-AS-Z is backordered and will ship as soon as it is back in stock.

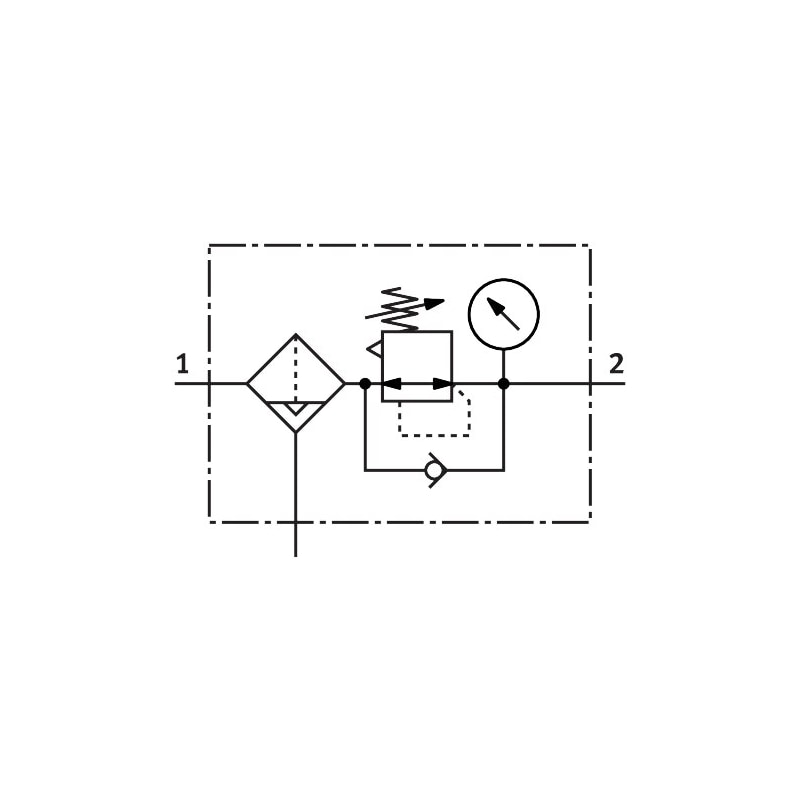

filter regulator MS4N-LFR-1/4-D7-CUV-AS-Z Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, metal bowl guard, fully automatic condensate drain, flow direction from right to left. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| product type | Filter Regulator |
|---|---|
| Port Size | 1/4" Port Connection |
| pressure range | 0.5-12bar (7.25-174PSI) |
| filtation | 5µm |
| Bowl Type | Metal Bowl |
| Drain Type | Fully Automatic |
| option | Lockable |
