Pilot valve
MGXDH-3/2-1.2-110AC-EX
535616
GTIN 4052568169251
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Actuation type
- Electrical
Regular price
$499.08
Unit price
MGXDH-3/2-1.2-110AC-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MGXDH-3/2-1.2-110AC-EX
Regular price
$499.08
Unit price
MGXDH-3/2-1.2-110AC-EX is backordered and will ship as soon as it is back in stock.

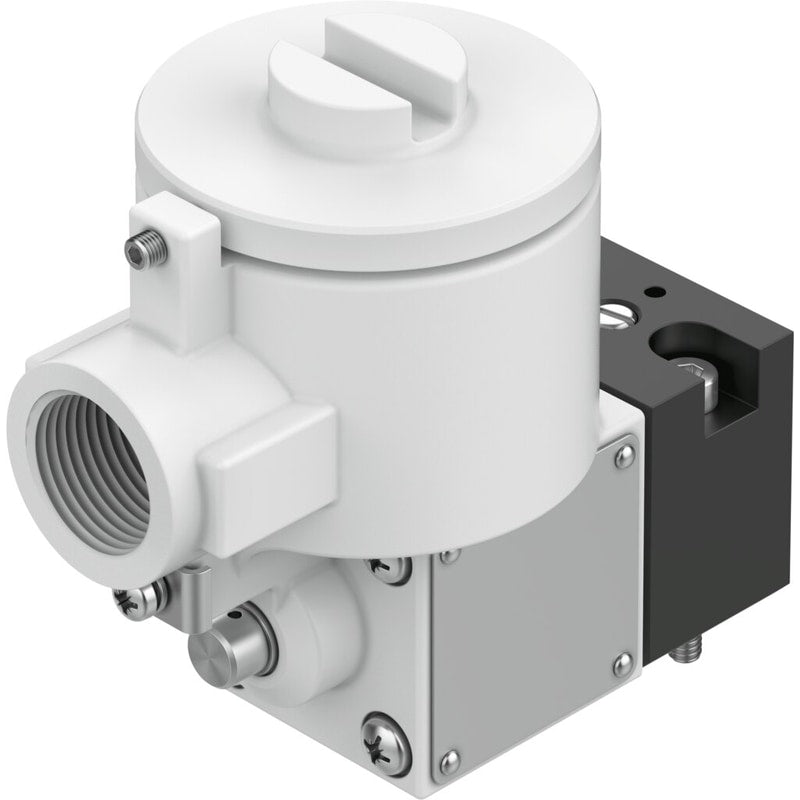

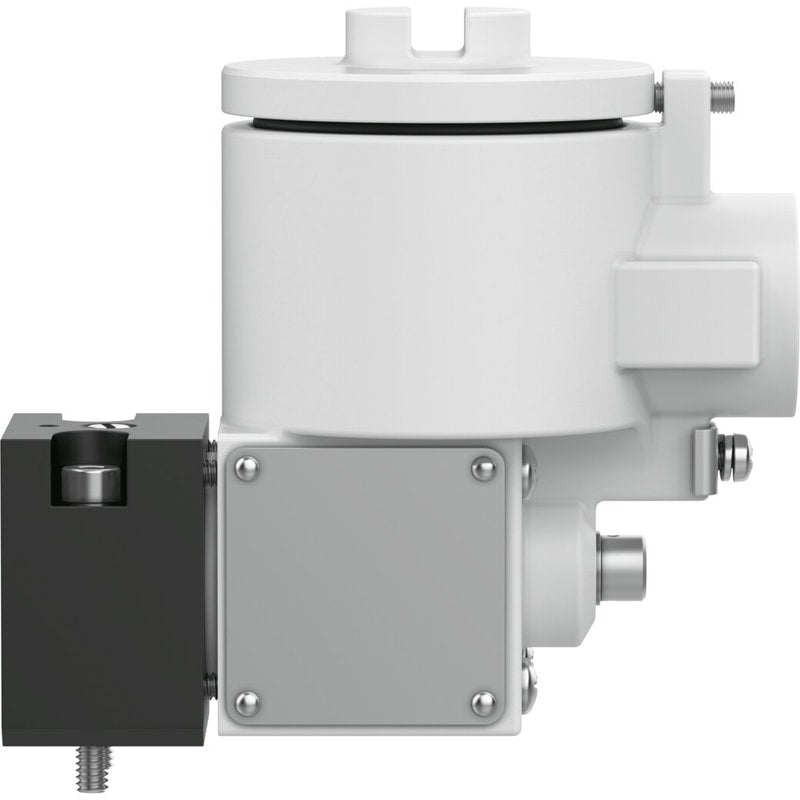

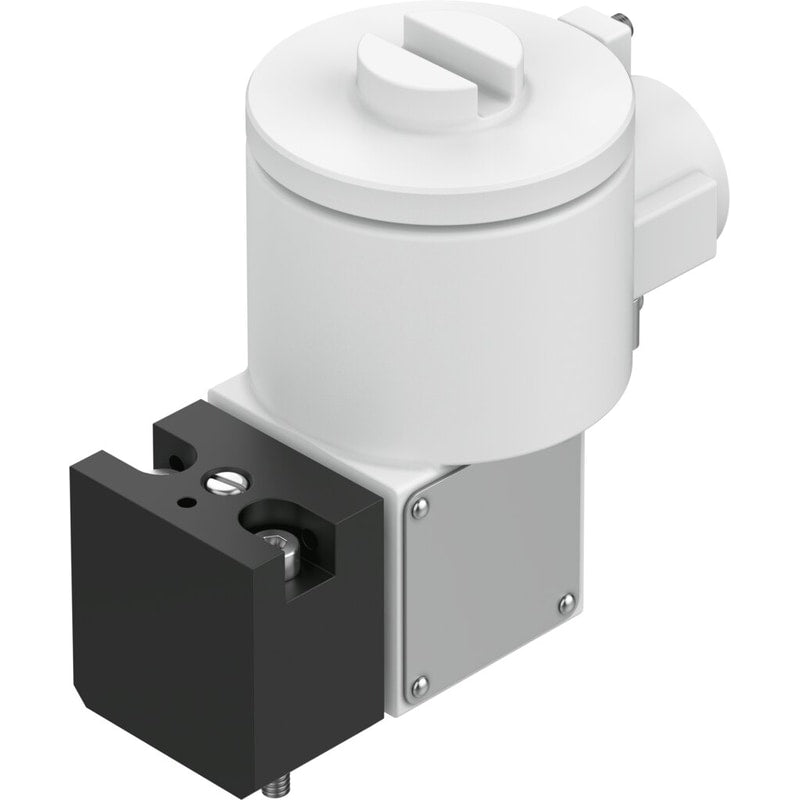

pilot valve MGXDH-3/2-1.2-110AC-EX with CNOMO port pattern, to ISO 15218 Valve function=3/2 closed, monostable, Type of actuation=electrical, Operating pressure=-0,9 - 8 bar, Design structure=On/off valve, Type of reset=mechanical spring
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Operating pressure | '-0.9 ... 8 bar |
| Design structure | On/off valve |
| Type of reset | mechanical spring |
| Protection class | IP66 |
| Manual override | detenting |
| Flow direction | non reversible |
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 7.7 VA, holding power 3.8 VA |
| Permissible frequency fluctuation | '+/- 10 % |
| ATEX category Gas | II 2G |
