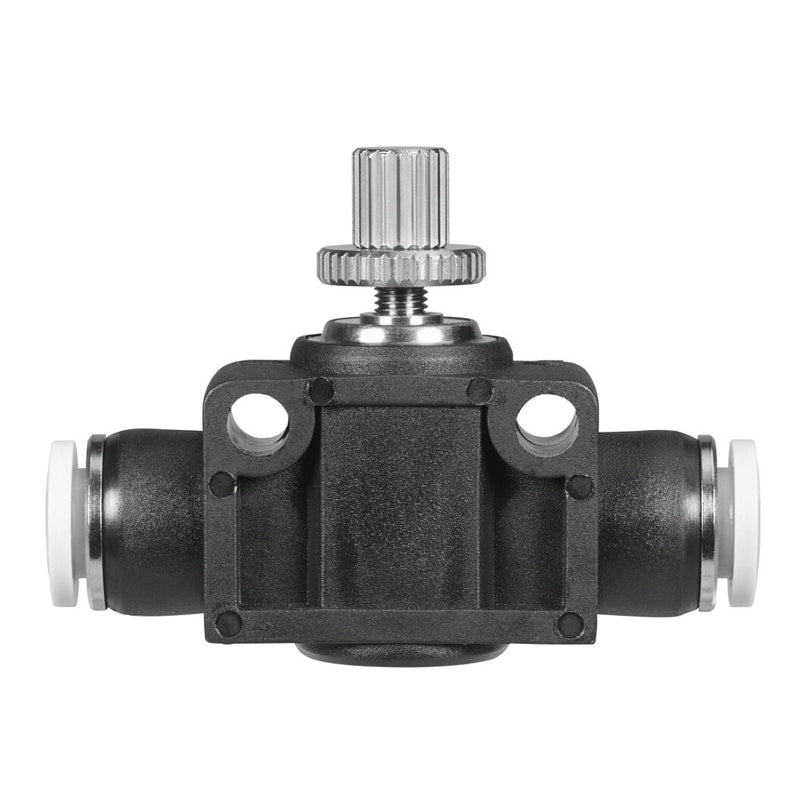

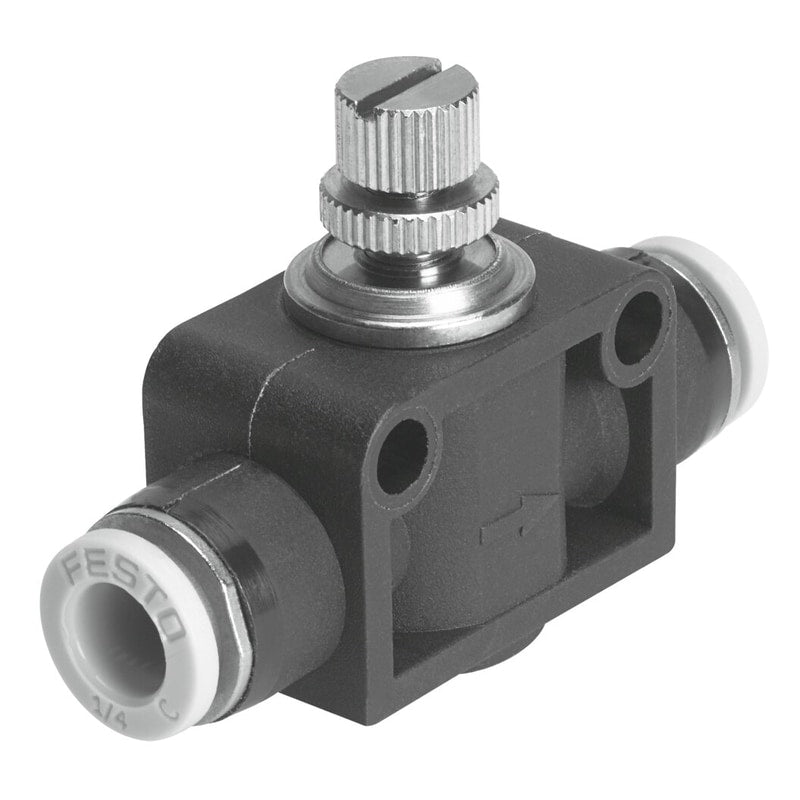

One-way flow control valve
GR-QB-5/16-U (Pack of 5)
534683
GTIN 4052568342227
Vendor Festo
- Valve function
- Flow control non-return function
- Standard nominal flow rate in flow control direction
- 1016.95 l/min
- Pneumatic connection 1
- QB-5/16
- Adjusting element
- Slotted screw
Regular price
$30.28
Unit price
GR-QB-5/16-U (Pack of 5) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GR-QB-5/16-U (Pack of 5)
Regular price
$30.28
Unit price
GR-QB-5/16-U (Pack of 5) is backordered and will ship as soon as it is back in stock.
one-way flow control valve GR-QB-5/16-U Valve function=One-way flow control function, Pneumatic connection, port 1=QB-5/16, Pneumatic connection, port 2=QB-5/16, Type of actuation=manual, Adjusting element=Slotted head screw
| Valve function | One-way flow control function |
|---|---|
| connection 1 | 43601 |
| connection 2 | 43601 |
| Type of actuation | manual |
| Adjusting element | Slotted head screw |
| Mounting type | OptionalLine installationwith through hole |
| Standard nominal flow rate in flow control direction | 8 cfm |
| Standard nominal flow rate in non-return direction | 5.7 ... 8.1 cfm |
| Operating pressure | '-13.8 ... 116 Psi |
| Ambient temperature | 0 ... 60 °C |
| Material housing | PBT-reinforced |
| Assembly position | Any |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 13.5 cfm |
| Design | Inline |
