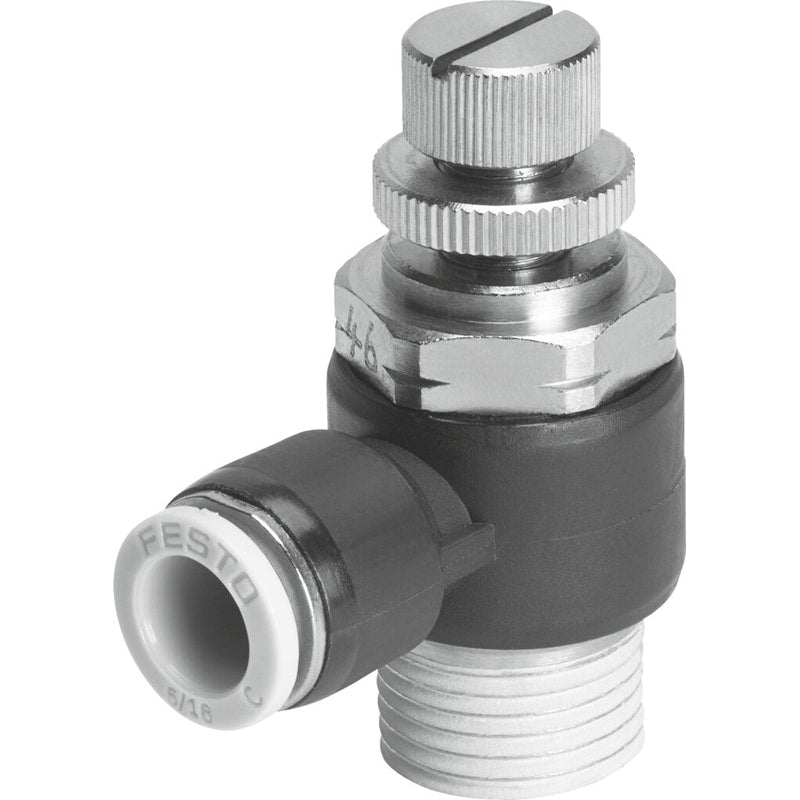

One-way flow control valve
GRLA-3/8-QB-1/2-U
534667
GTIN 4052568342180
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction
- 3902.54 l/min
- Pneumatic connection 1
- QB-1/2
- Adjusting element
- Slotted screw
Regular price
$38.94
Unit price
GRLA-3/8-QB-1/2-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLA-3/8-QB-1/2-U
Regular price
$38.94
Unit price
GRLA-3/8-QB-1/2-U is backordered and will ship as soon as it is back in stock.
one-way flow control valve GRLA-3/8-QB-1/2-U Valve function=One-way flow control function for exhaust air, Pneumatic connection, port 1=QB-1/2, Pneumatic connection, port 2=NPT3/8-18, Type of actuation=manual, Adjusting element=Slotted head screw
| Valve function | One-way flow control function for exhaust air |
|---|---|
| connection 1 | 43467 |
| connection 2 | NPT3/8-18 |
| Type of actuation | manual |
| Adjusting element | Slotted head screw |
| Mounting type | Threadedwith external (male) thread |
| Standard nominal flow rate in flow control direction | 30.7 cfm |
| Standard nominal flow rate in non-return direction | 23.6 ... 31.3 cfm |
| Ambient temperature | 32 ... 140 °F |
| Assembly position | Any |
| Operating pressure complete temperature range | '-13.8 ... 116 Psi |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 50.5 cfm |
| Standard flow rate in blocked direction: 6 -> 0 bar | 50.5 ... 52.5 cfm |
| Design | Elbow |
