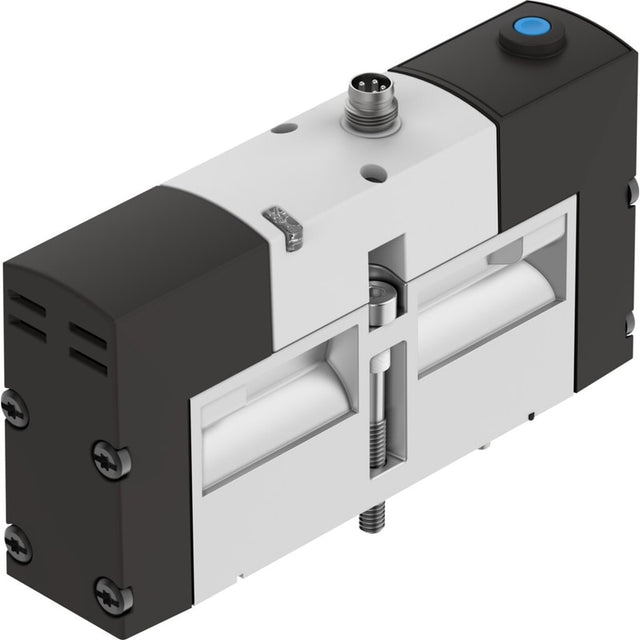

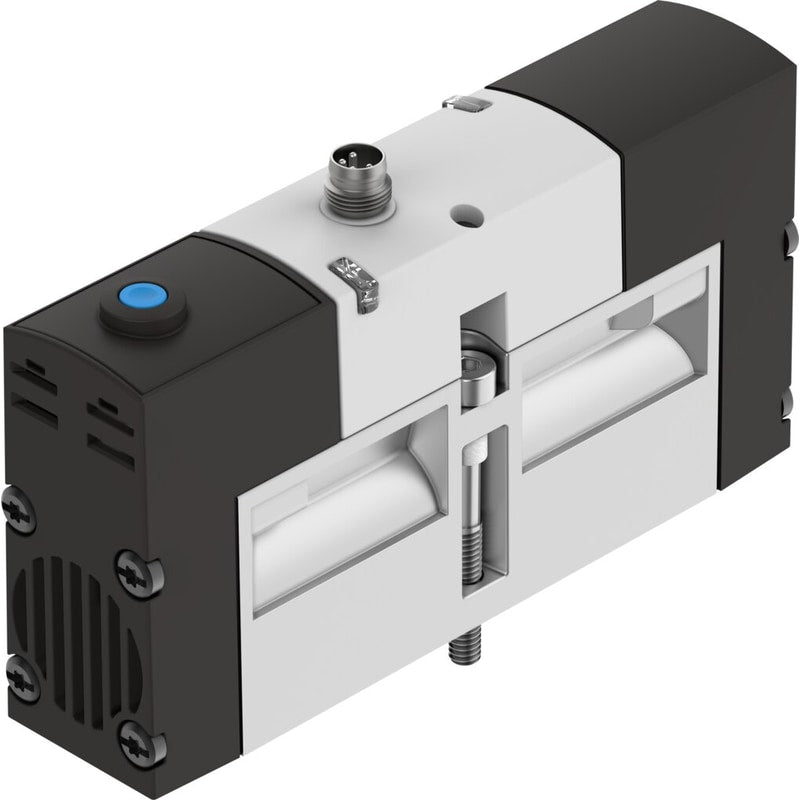

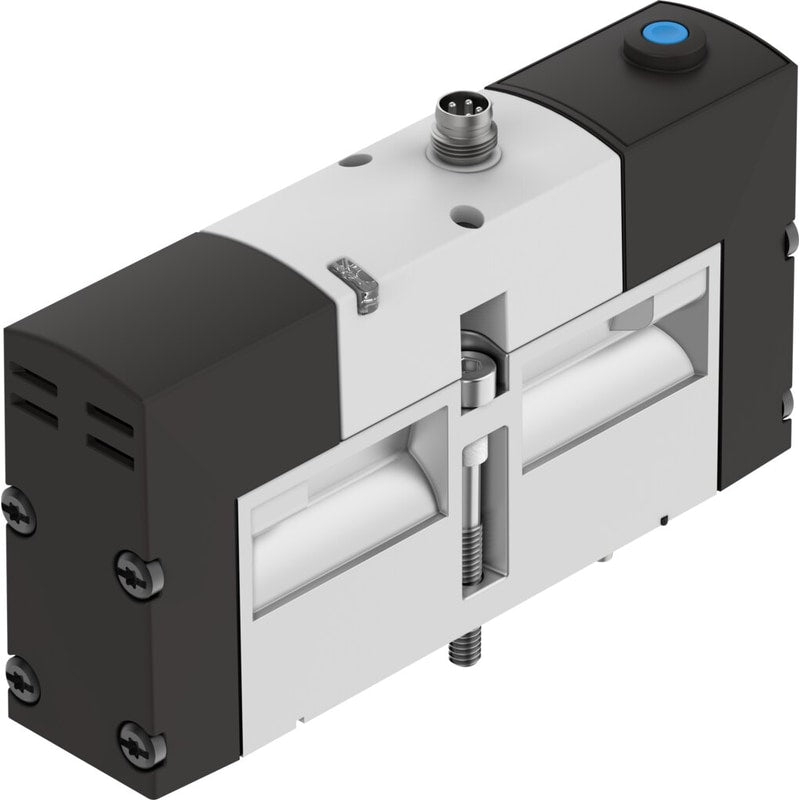

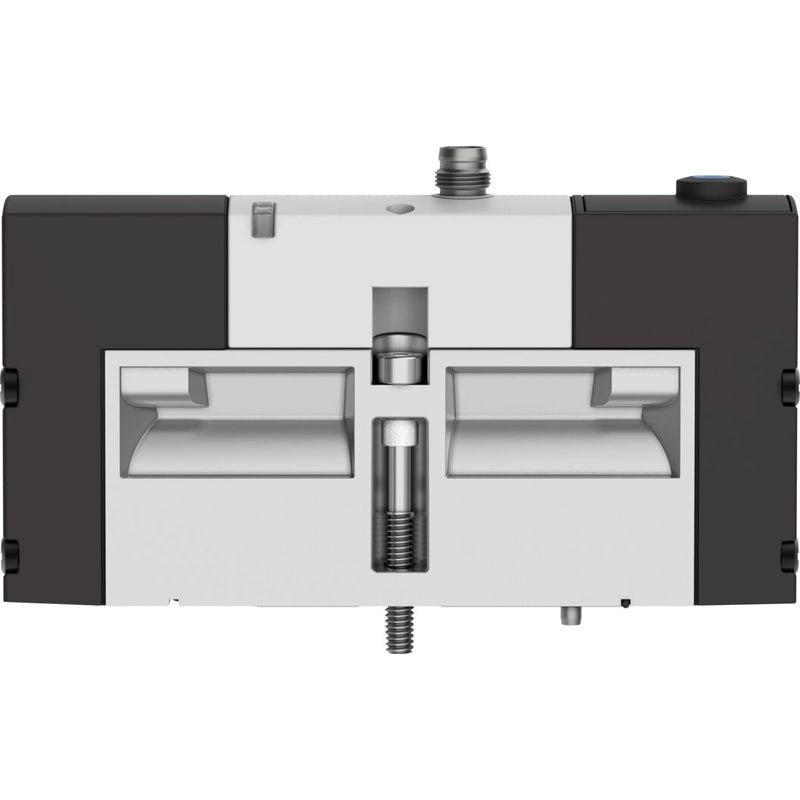

Air solenoid valve
VSVA-B-M52-AZH-A1-1R2L
534525
GTIN 4052568168193
Vendor Festo

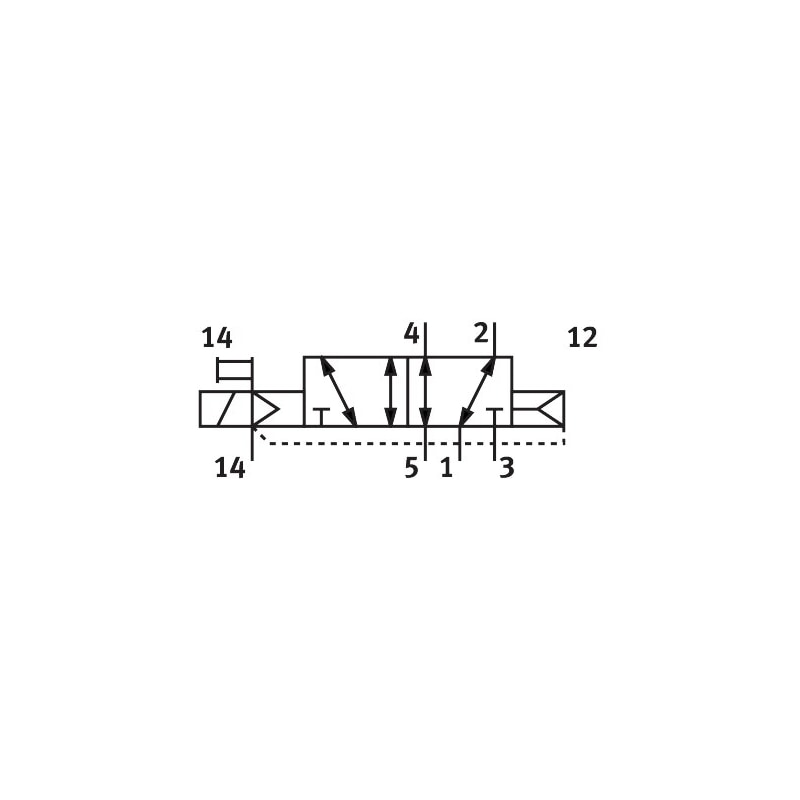

- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1
- Actuation type
- Electrical
Regular price
$203.88
Unit price
VSVA-B-M52-AZH-A1-1R2L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-M52-AZH-A1-1R2L
Regular price
$203.88
Unit price
VSVA-B-M52-AZH-A1-1R2L is backordered and will ship as soon as it is back in stock.
solenoid valve VSVA-B-M52-AZH-A1-1R2L with central plug, round design M8x1. Valve function=5/2 monostable, Type of actuation=electrical, Width=26 mm, Operating pressure=-0,9 - 16 bar, Design structure=Piston slide
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 26 mm |
| Operating pressure | '-0.9 ... 16 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65NEMA 4 |
| Authorisation | C-Tickc CSA us (OL)c UL us - Recognized (OL) |
| Nominal size | 9 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
