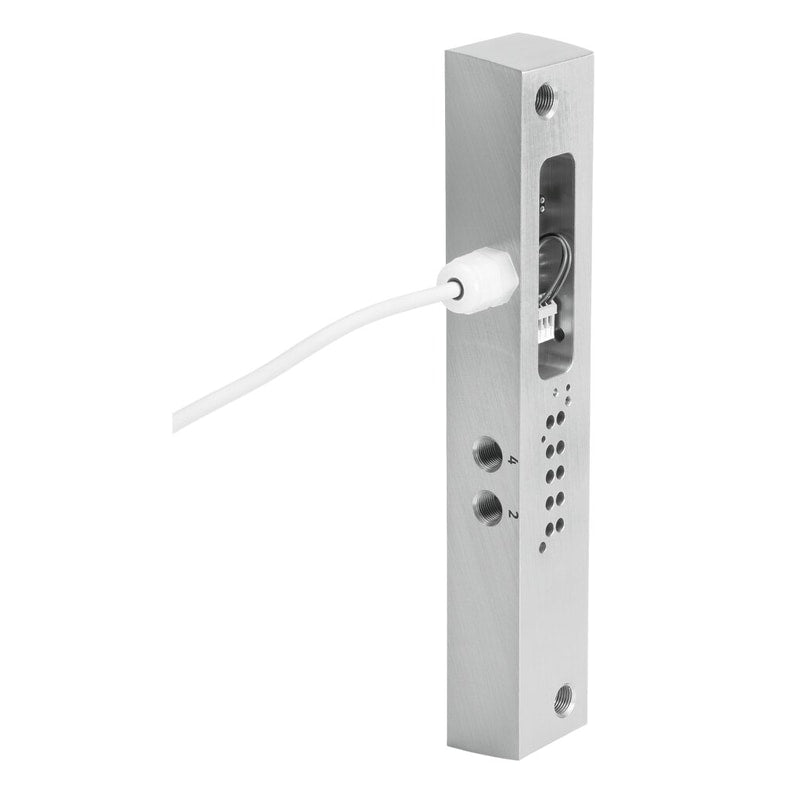

Sub-base
CDSV5.0-AS-1/8
534434
GTIN 4052568168049
Vendor Festo
Regular price
$336.95
Unit price
CDSV5.0-AS-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDSV5.0-AS-1/8
Regular price
$336.95
Unit price
CDSV5.0-AS-1/8 is backordered and will ship as soon as it is back in stock.
sub-base CDSV5.0-AS-1/8 For CDSV individual valves, suitable for the food processing industry Max. number of valve positions=1, Nominal operating voltage DC=24 V, Corrosion resistance classification CRC=3 - High corrosion stress, Medium temperature=-5 - 50 °C, Sound pressure level=75 dB(A)
| Max. number of valve positions | 1 |
|---|---|
| Nominal operating voltage DC | 24 V |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Medium temperature | '-5 ... 50 °C |
| Sound pressure level | 75 dB(A) |
| Protection class | IP65IP66IP67NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 690 g |
| Electrical connection | Cable |
| Mounting type | with through holewith internal (female) thread |
| Scavenging orifice connection | M5 |
| Pilot exhaust port 82/84 | M5 |
| Pilot air port 12 | M5 |
