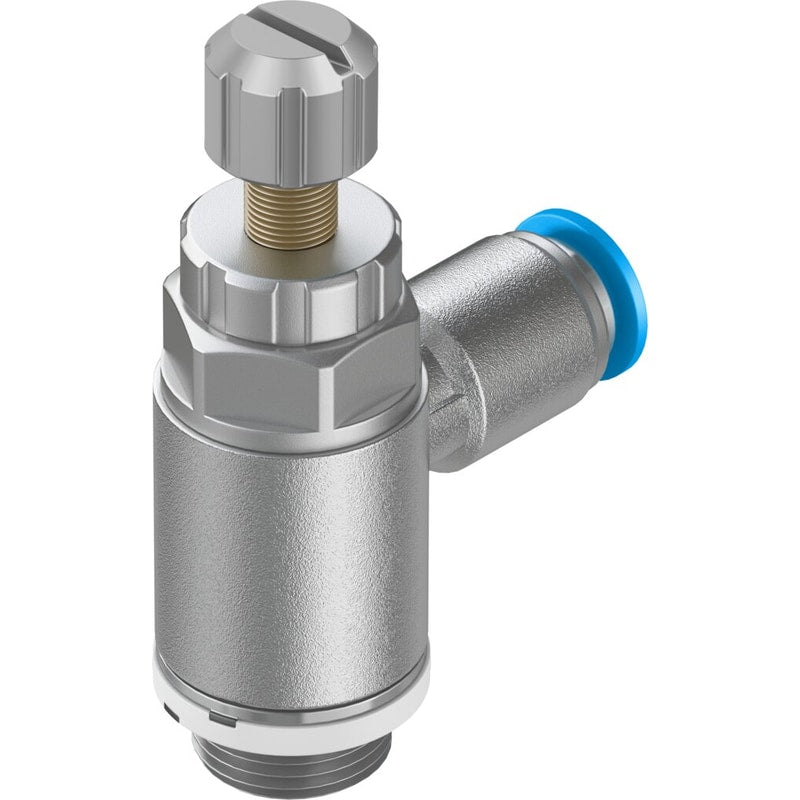

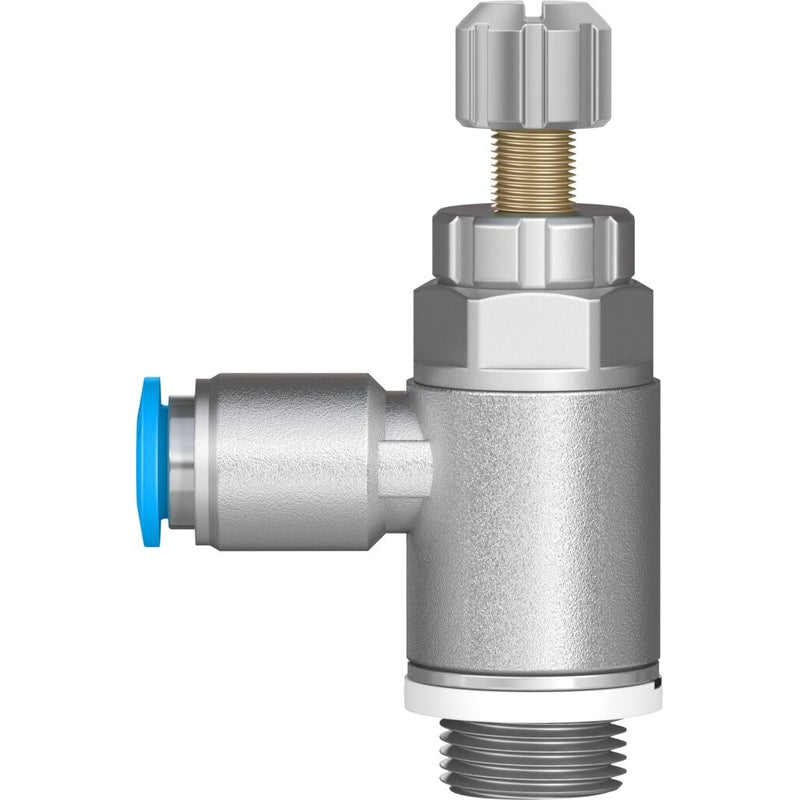

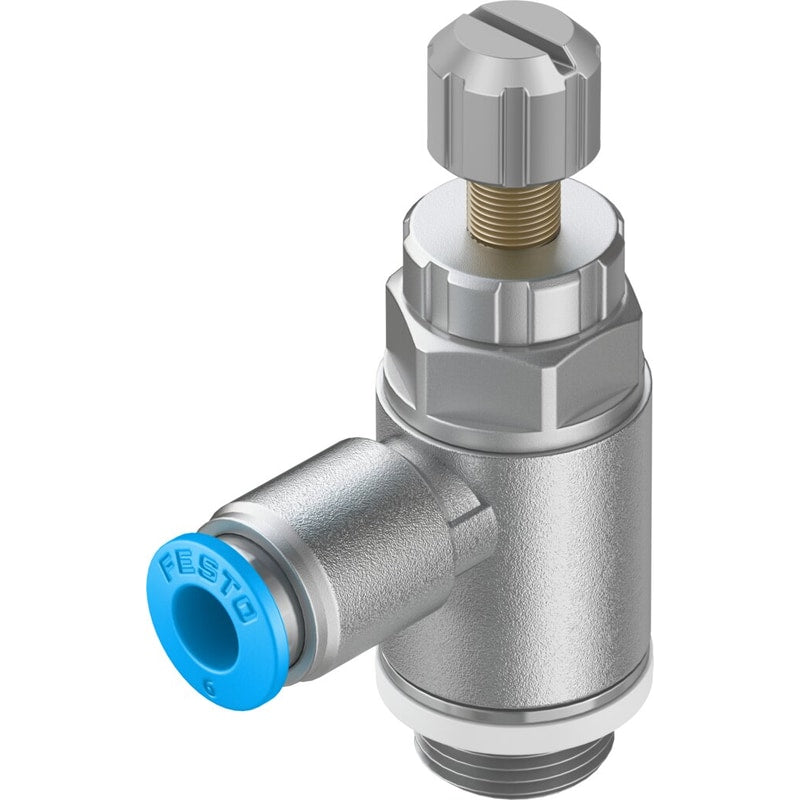

One-way flow control valve
GRLA-1/4-QS-8-RS-D
534339
GTIN 4052568048891
Vendor Festo
- Valve function
- Flow control non-return function
- Standard nominal flow rate in flow control direction
- 475 l/min
- Pneumatic connection 1
- QS-8
- Adjusting element
- Knurled screw
Regular price
$33.48
Unit price
GRLA-1/4-QS-8-RS-D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLA-1/4-QS-8-RS-D
Regular price
$33.48
Unit price
GRLA-1/4-QS-8-RS-D is backordered and will ship as soon as it is back in stock.
one-way flow control valve GRLA-1/4-QS-8-RS-D With knurled screw and lock nut Valve function=One-way flow control function, Pneumatic connection, port 1=QS-8, Pneumatic connection, port 2=G1/4, Adjusting element=Knurled screw, Mounting type=(* Threaded, * with external (male) thread)
| Valve function | One-way flow control function |
|---|---|
| connection 1 | 8 |
| connection 2 | G1/4 |
| Adjusting element | Knurled screw |
| Mounting type | Threadedwith external (male) thread |
| Standard nominal flow rate in flow control direction | 475 l/min |
| Standard nominal flow rate in non-return direction | 325 ... 500 l/min |
| Operating pressure | 0.2 ... 10 bar |
| Ambient temperature | '-10 ... 60 °C |
| Assembly position | Any |
| Operating pressure complete temperature range | 0.2 ... 10 bar |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 720 l/min |
| Standard flow rate in blocked direction: 6 -> 0 bar | 610 ... 760 l/min |
| Design | Elbow |
