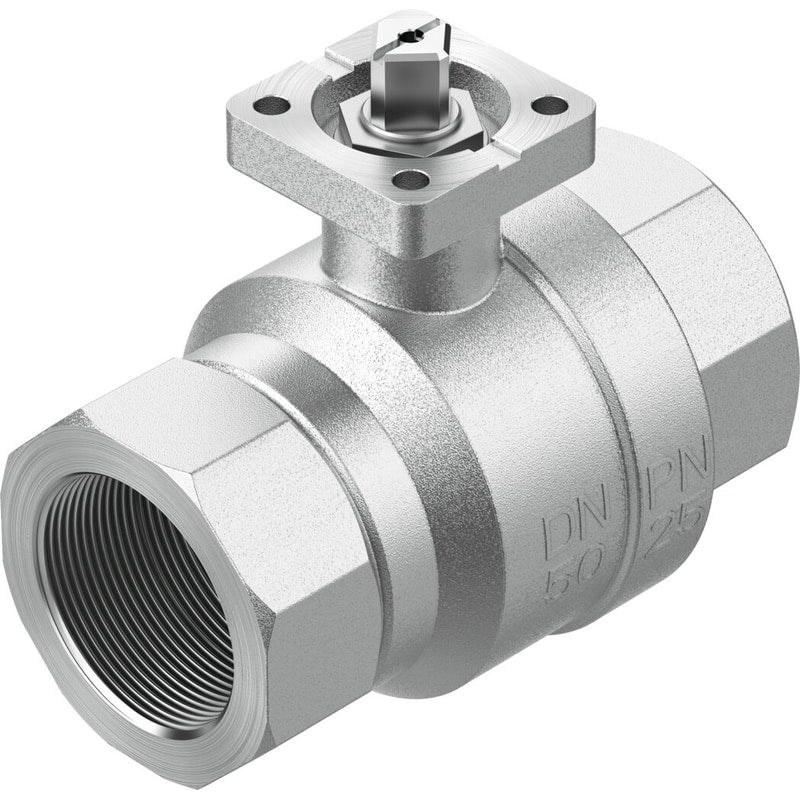

Ball valve
VAPB-1 1/2-F-25-F0405
534308
GTIN 4052568086800
Vendor Festo
- Structural design
- 2-way ball valve
- Flow rate Kv
- 200 m³/h
- Fitting connection
- Rp1 1/2
- Actuation type
- Mechanical
Regular price
$103.46
Unit price
VAPB-1 1/2-F-25-F0405 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAPB-1 1/2-F-25-F0405
Regular price
$103.46
Unit price
VAPB-1 1/2-F-25-F0405 is backordered and will ship as soon as it is back in stock.
ball valve VAPB-11/2-F-25-F0405 Brass design Design structure=2-way ball valve, Type of actuation=mechanical, Sealing principle=soft, Assembly position=Any, Mounting type=Line installation
| Design structure | 2-way ball valve |
|---|---|
| Type of actuation | mechanical |
| Sealing principle | soft |
| Assembly position | Any |
| Mounting type | Line installation |
| Process valve connection | Rp1 1/2 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F04F05 |
| Nominal diameter DN | 40 |
| Flow direction | reversible |
| Nominal pressure of process valve | 25 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 19 Nm |
| Breakaway torque at a differential pressure of 10 bar | 14.9 Nm |
