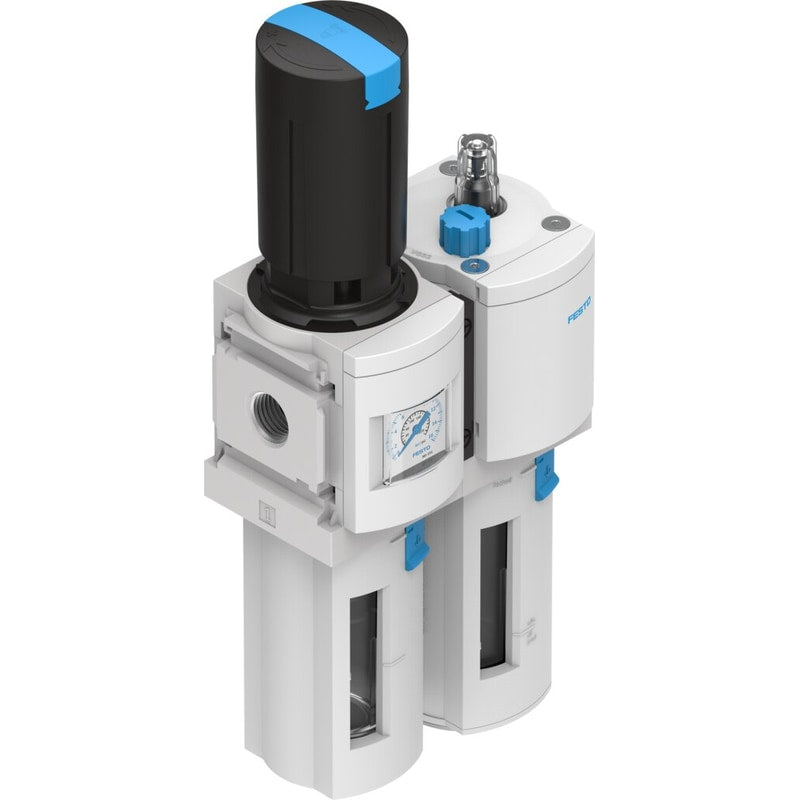

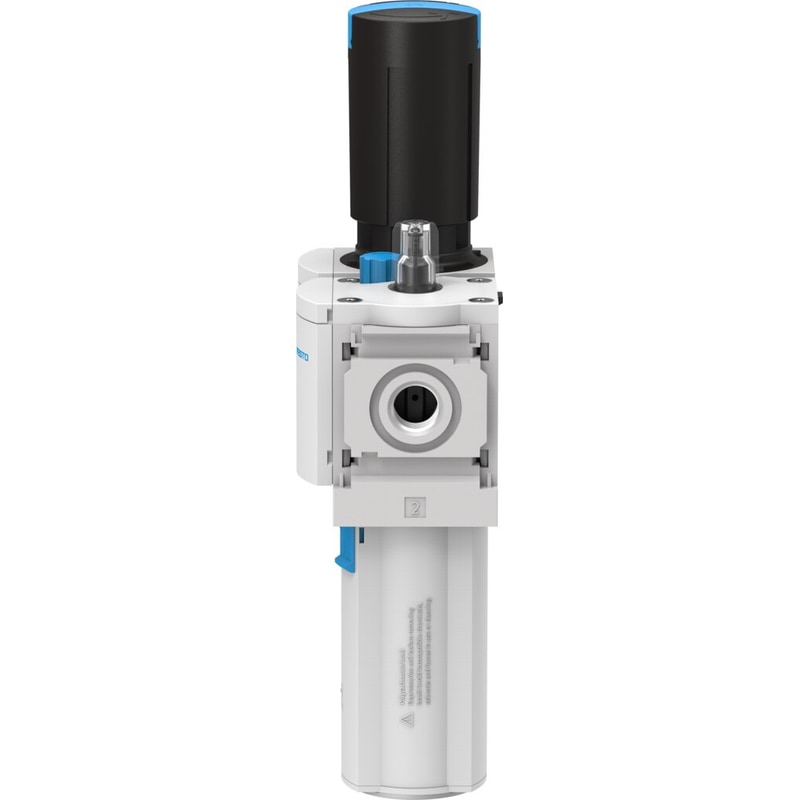

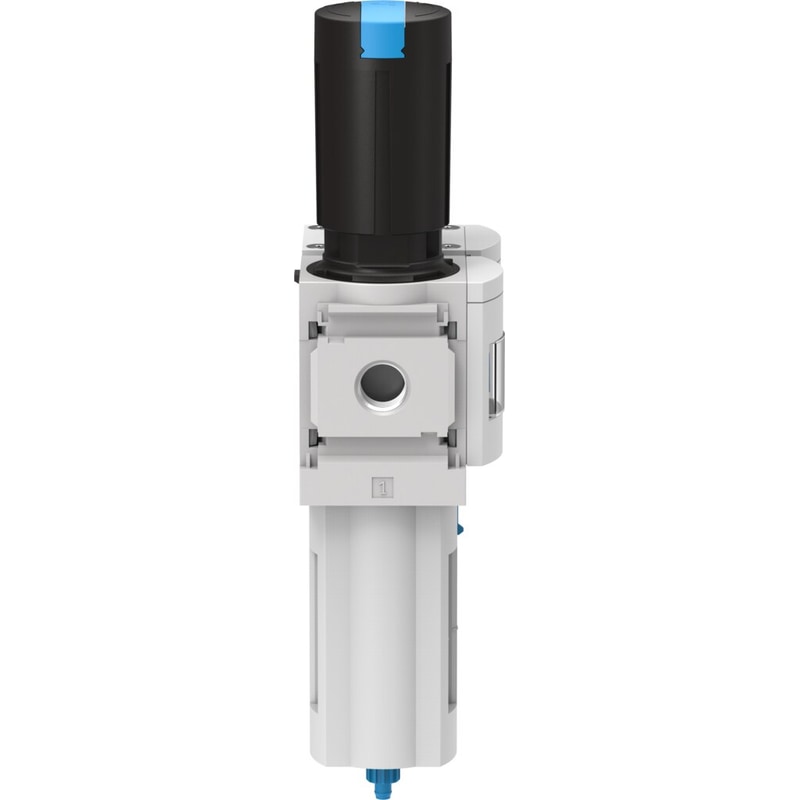

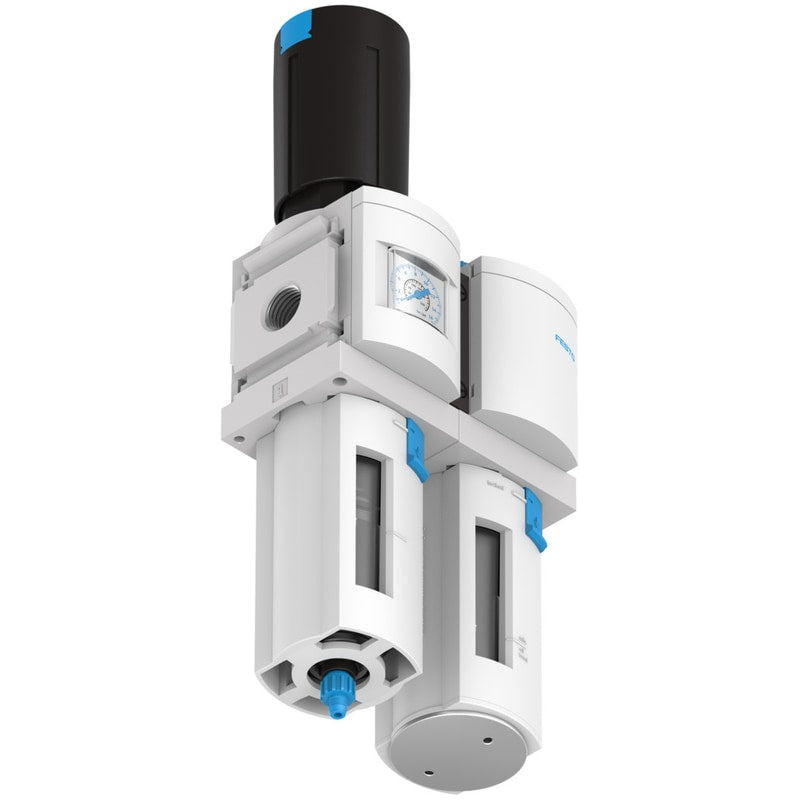

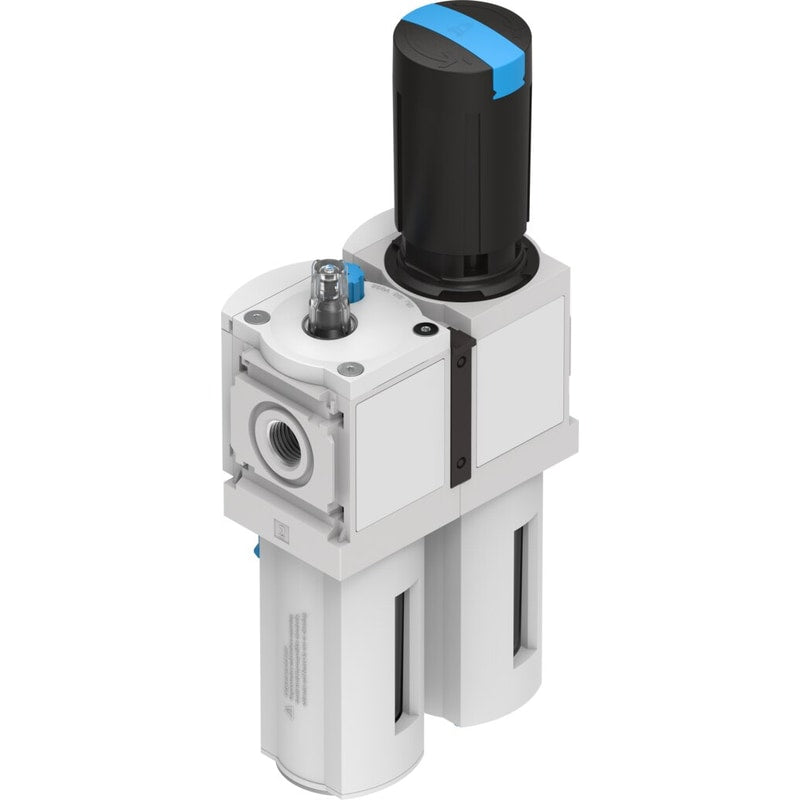

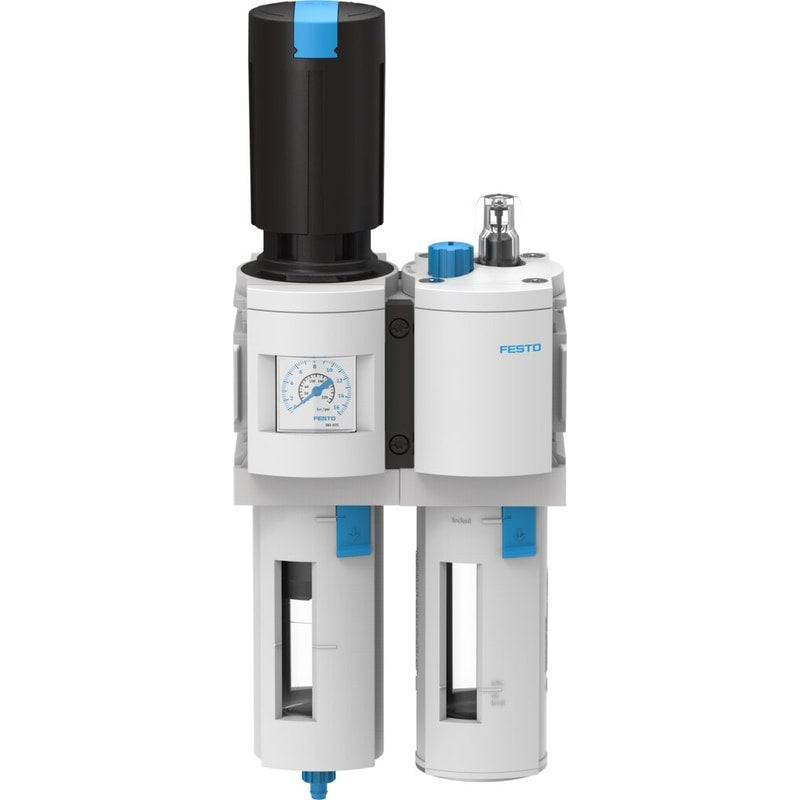

Air preparation combination unit
MSB6N-3/8-FRC10:J12M2
534029
GTIN 4052568341923
Vendor Festo
- Pneumatic connection 1
- 3/8 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 3500 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$238.03
Unit price
Air preparation combination unit MSB6N-3/8-FRC10:J12M2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSB6N-3/8-FRC10:J12M2
Regular price
$238.03
Unit price
Air preparation combination unit MSB6N-3/8-FRC10:J12M2 is backordered and will ship as soon as it is back in stock.

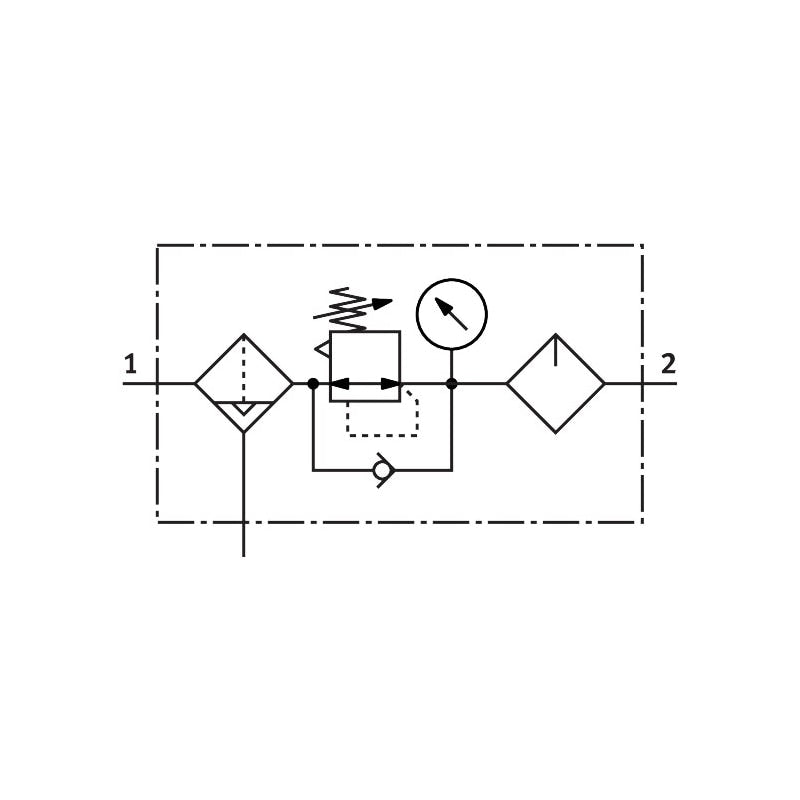

service unit combination MSB6N-3/8-FRC10:J12M2 Filter/pressure regulator/lubricator combination, maximum output pressure 12 bar, 40 µm filter, with pressure gauge, lockable regulator head, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | fully automatic |
| Design structure | Filter regulator with pressure gaugeproportional standard mist lubricator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | integrated as metal shell |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.5 ... 12 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Standard nominal flow rate | 3,500 l/min |
