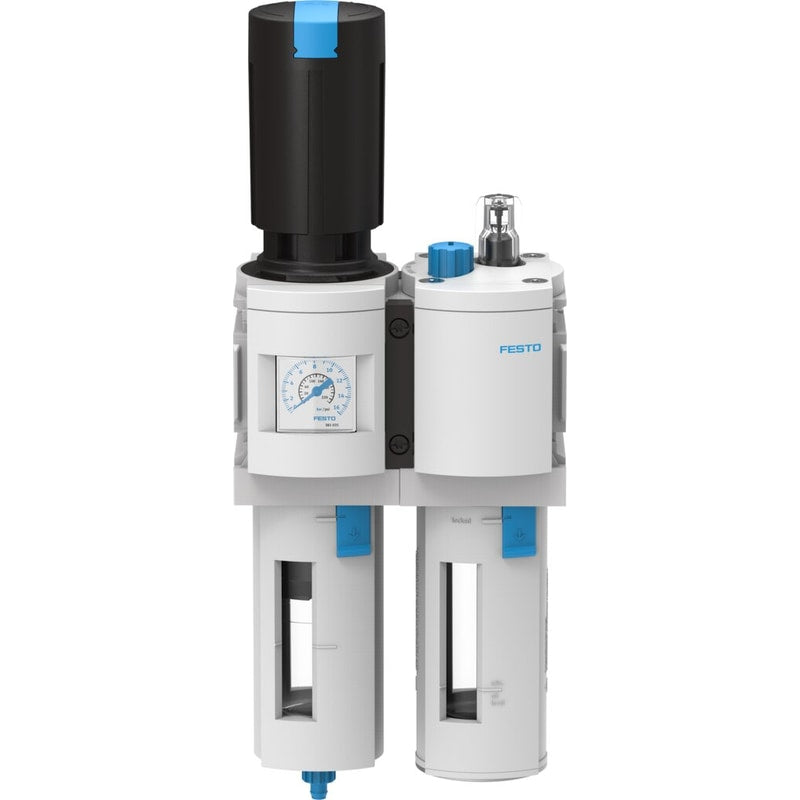

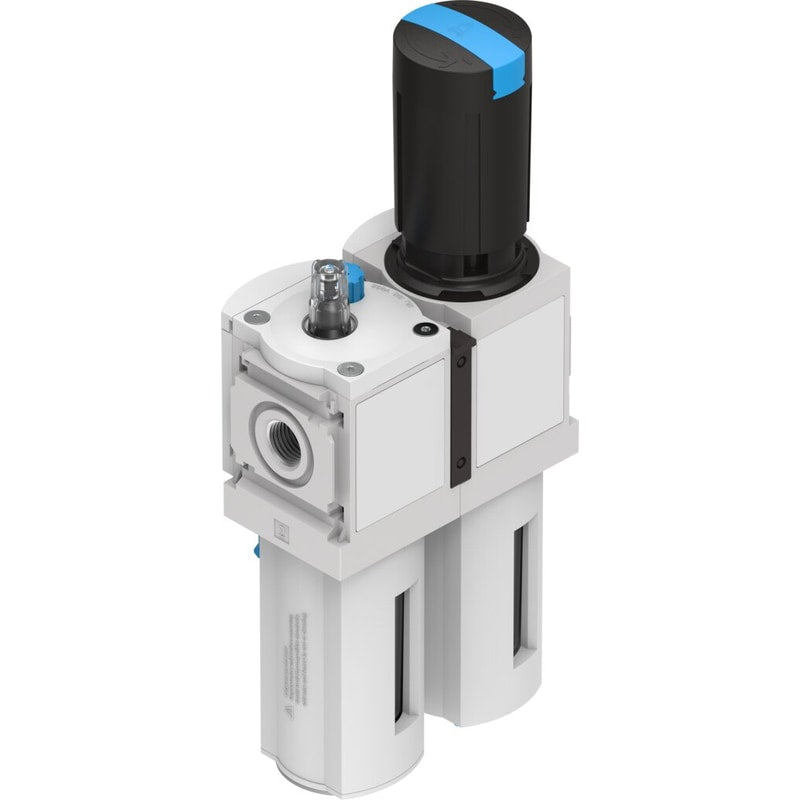

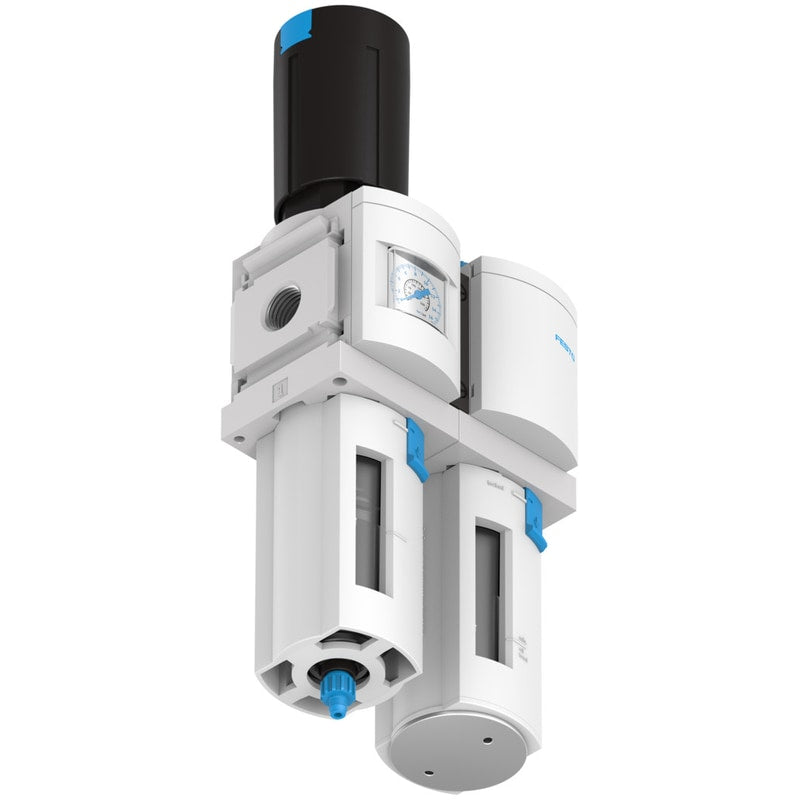

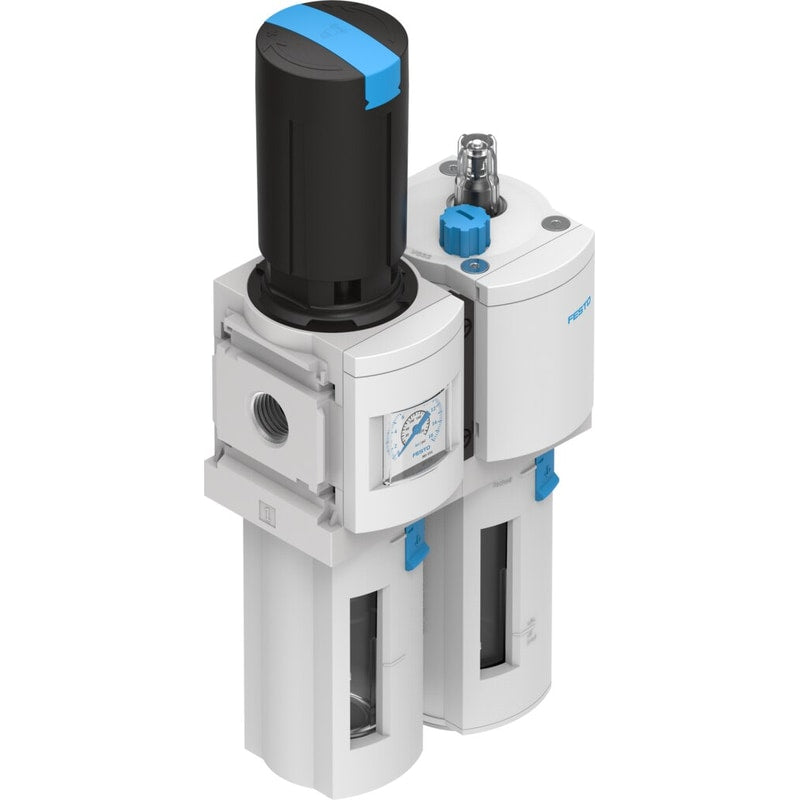

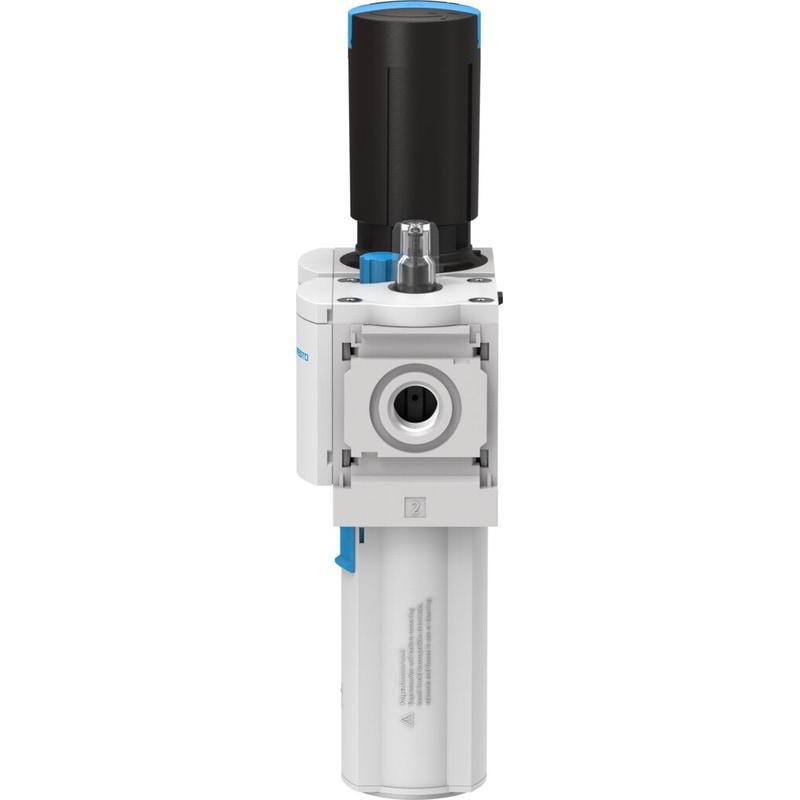

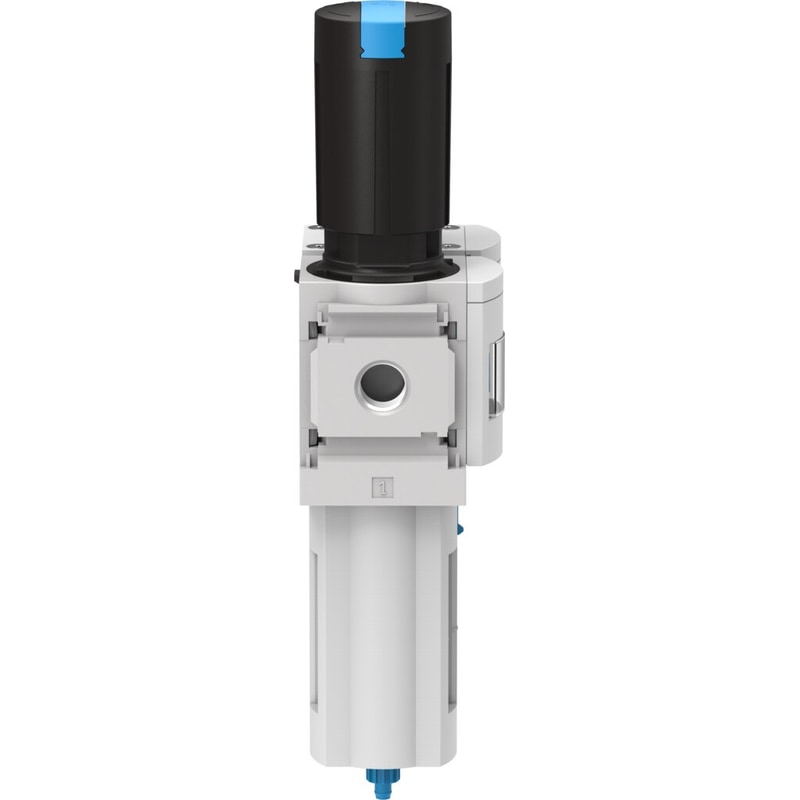

Air preparation combination unit
MSB6N-1/4-FRC5:J1M1
534017
GTIN 4052568341862
Vendor Festo
- Pneumatic connection 1
- 1/4 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 1900 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$153.28
Unit price
Air preparation combination unit MSB6N-1/4-FRC5:J1M1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSB6N-1/4-FRC5:J1M1
Regular price
$153.28
Unit price
Air preparation combination unit MSB6N-1/4-FRC5:J1M1 is backordered and will ship as soon as it is back in stock.

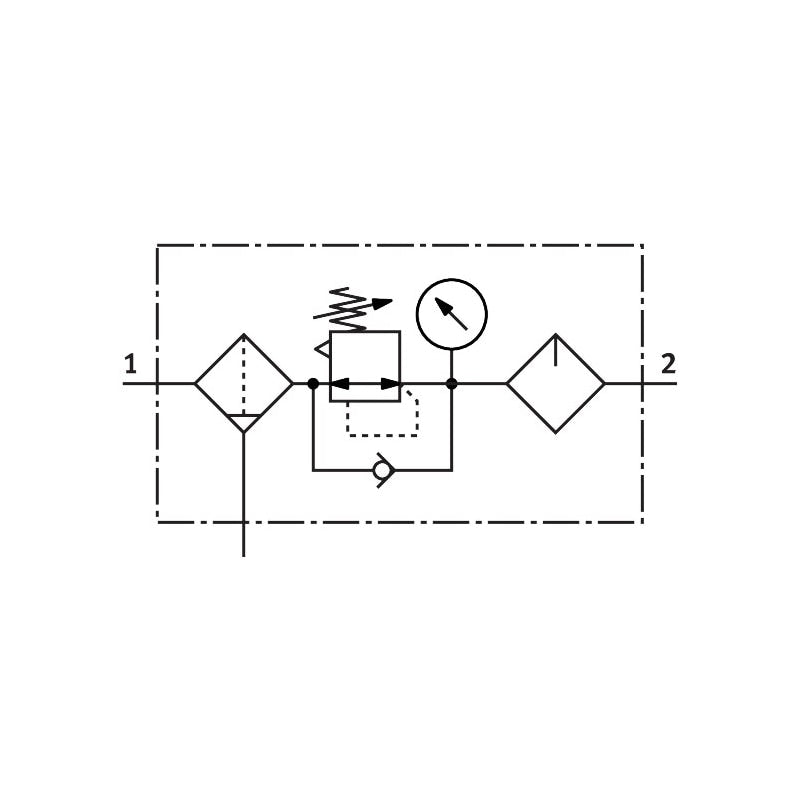

service unit combination MSB6N-1/4-FRC5:J1M1 Filter-regulator-lubricator combination, 12 bar maximum output pressure, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | manual rotary |
| Design structure | Filter regulator with pressure gaugeproportional standard mist lubricator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.5 ... 20 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Standard nominal flow rate | 1,900 l/min |
