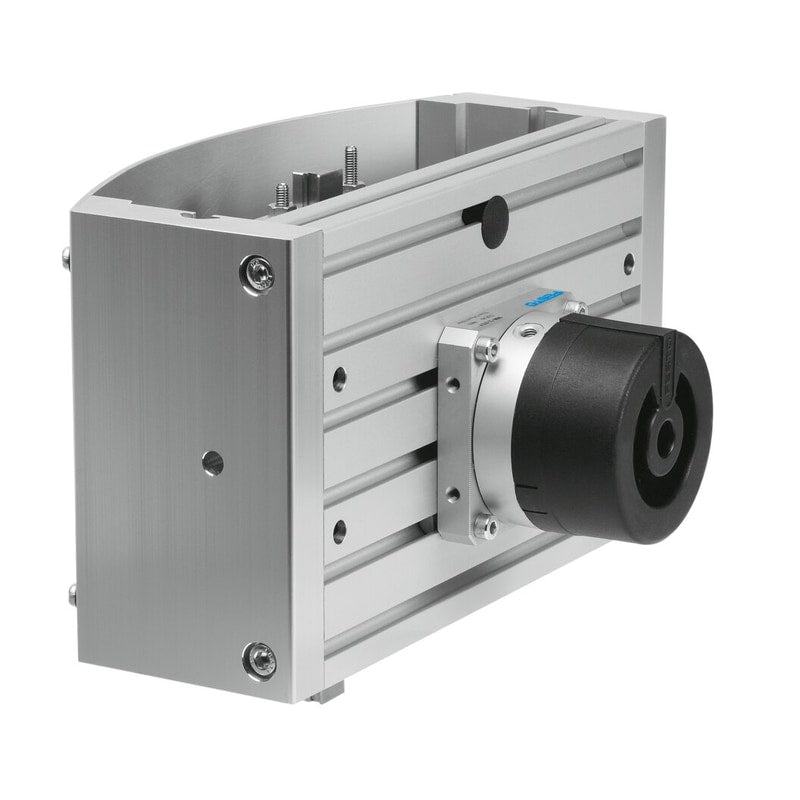

Handling module
HSP-12-AP-SD
533600
GTIN 4052568167554
Vendor Festo
- Size
- 12
- Y-stroke
- 52 mm - 68 mm
- Z-stroke
- 20 mm - 30 mm
- Repetition accuracy
- ±0.01 mm
Regular price
$4,350.76
Unit price
HSP-12-AP-SD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HSP-12-AP-SD
Regular price
$4,350.76
Unit price
HSP-12-AP-SD is backordered and will ship as soon as it is back in stock.
| Size | 12 |
|---|---|
| Y-stroke | 52 mm ... 68 mm |
| Z-stroke | 20 mm ... 30 mm |
| Z-stroke working stroke | 15 mm |
| Type code | HSP |
| Cushioning | Pneumatic shock absorber at both endsSoft characteristic curve |
| Mounting position | Guide railVertical |
| Mode of operation | Double-acting |
| Design | Positively driven motion sequenceCross guideSwivel module |
| Position sensing | For proximity sensor |
| Protection against torsion/guide | Cross guide |
| Operating pressure | 4 bar ... 8 bar |
| Minimum cycle time | 0.6 s |
| Repetition accuracy | ±0.01 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | 0 °C ... 60 °C |
| Max. torque Mx dynamic | 1.1 Nm |
| Max. static moment Mx | 5 Nm |
| Max. torque My dynamic | 1.1 Nm |
| Max. static moment My | 5 Nm |
| Max. torque Mz dynamic | 1.1 Nm |
| Max. static moment Mz | 5 Nm |
| Theoretical force at 6 bar | 40 N |
| Product weight | 2600 g |
| Front unit mounting | With through-hole |
| Type of mounting | With slot nutsWith through-hole |
| Pneumatic connection | M5 |
| Note on materials | Free of copper and PTFE |
| Base plate material | Wrought aluminum alloy |
| Cross guide material | Tempered steel |
| Side covers material | Wrought aluminum alloy |
