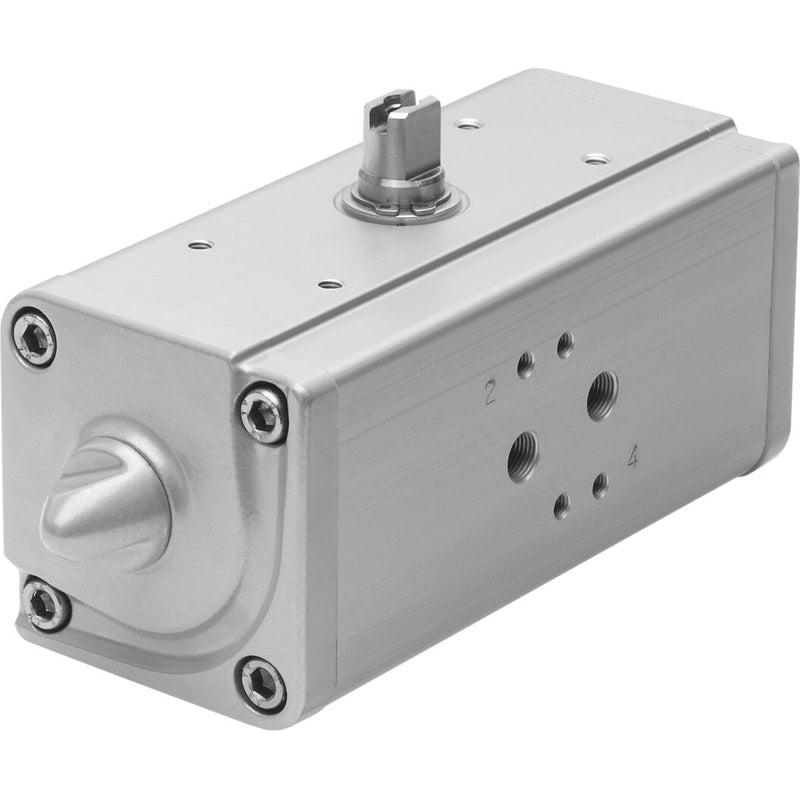

Quarter turn actuator
DAPS-0060-090-R-F0507
533477
GTIN 4052568167288
Vendor Festo
- Pneumatic connection
- G1/8
- Torque at nominal operating pressure and 0° swivel angle
- 60 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F05 - F07
- Shaft connection
- T14
Regular price
$425.75
Unit price
DAPS-0060-090-R-F0507 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DAPS-0060-090-R-F0507
Regular price
$425.75
Unit price
DAPS-0060-090-R-F0507 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DAPS-0060-090-R-F0507 Double-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator=0060, Flange hole pattern=(* F05, * F07), Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, Shaft connection depth=16,5 mm
| Size of actuator | 60 |
|---|---|
| Flange hole pattern | F05F07 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-1 ... 9 deg |
| Shaft connection depth | 16.5 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Yoke kinematics |
| Position detection | No |
| Closing direction | right-closing |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
