Air solenoid valve
VMPA1-M1H-M-M7-PI
533376
GTIN 4052568166571
Vendor Festo

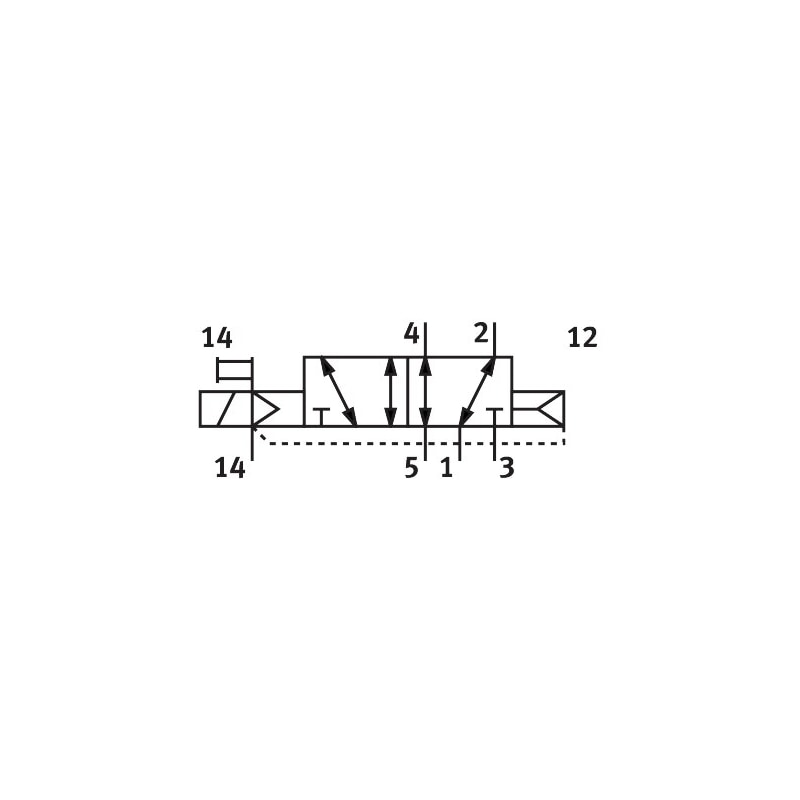

- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 360 l/min
- Pneumatic connection 1
- M7
- Actuation type
- Electrical
Regular price
$252.18
Unit price
VMPA1-M1H-M-M7-PI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA1-M1H-M-M7-PI
Regular price
$252.18
Unit price
VMPA1-M1H-M-M7-PI is backordered and will ship as soon as it is back in stock.

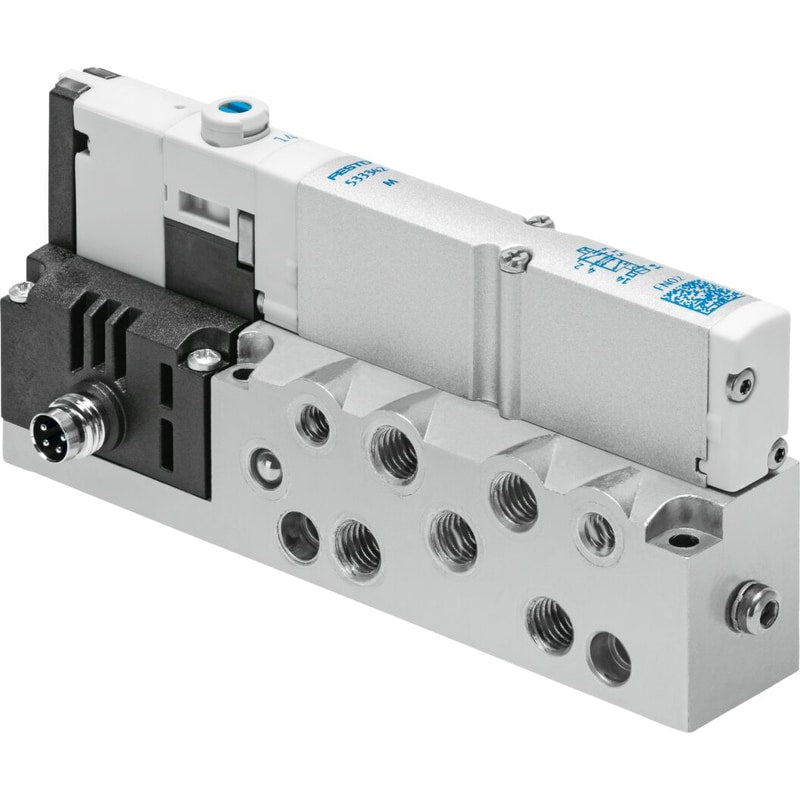

solenoid valve VMPA1-M1H-M-M7-PI With individual electrical connection, M8x1, 4-pin Valve function=5/2 monostable, Type of actuation=electrical, Valve size=10 mm, Standard nominal flow rate=360 l/min, Operating pressure=3 - 8 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 360 l/min |
| Operating pressure | 3 ... 8 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65to IEC 60529in assembled condition |
| Authorisation | c UL us - Recognized (OL) |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
