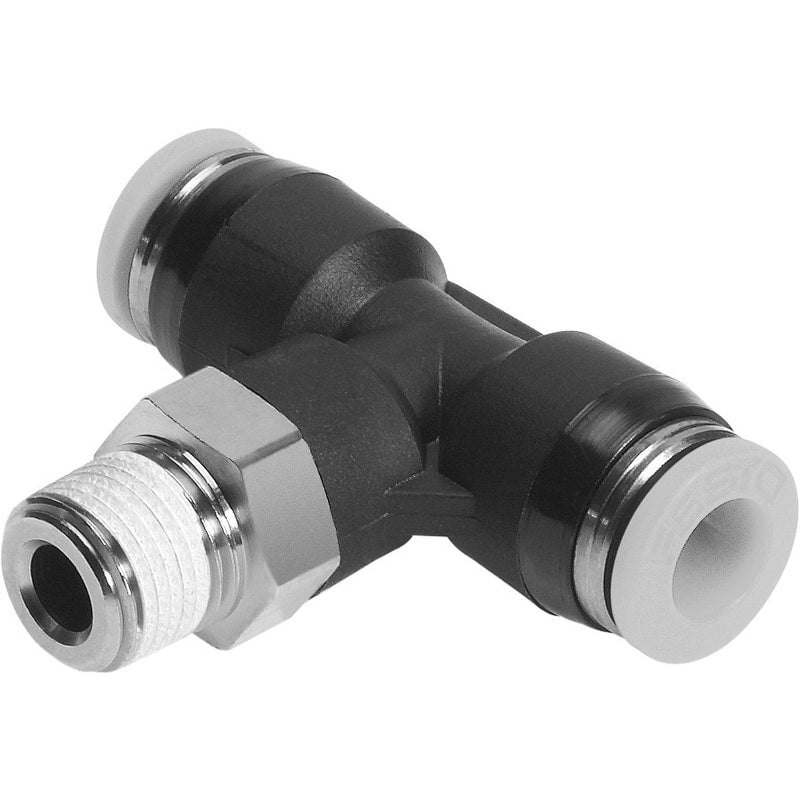

Push-in T-fitting
QBT-1/4-1/4-U-M (Pack of 5)
533257
GTIN 4052568340827
Vendor Festo
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 4.496 mm
Regular price
$5.89
Unit price
QBT-1/4-1/4-U-M (Pack of 5) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBT-1/4-1/4-U-M (Pack of 5)
Regular price
$5.89
Unit price
QBT-1/4-1/4-U-M (Pack of 5) is backordered and will ship as soon as it is back in stock.
push-in T-fitting QBT-1/4-1/4-U-M 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=0,177 ", Type of seal on screw-in stud=coating, Operating pressure complete temperature range=0 - 145 Psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | Male Branch Tee |
|---|---|
| Size | Standard |
| Nominal size | 0.177 " |
| Type of seal on screw-in stud | coating |
| Operating pressure complete temperature range | 0 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Maritime classification | see certificate |
| Product weight | 0.794 oz |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material of threaded seal | NBR |
| Material release ring | POM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
