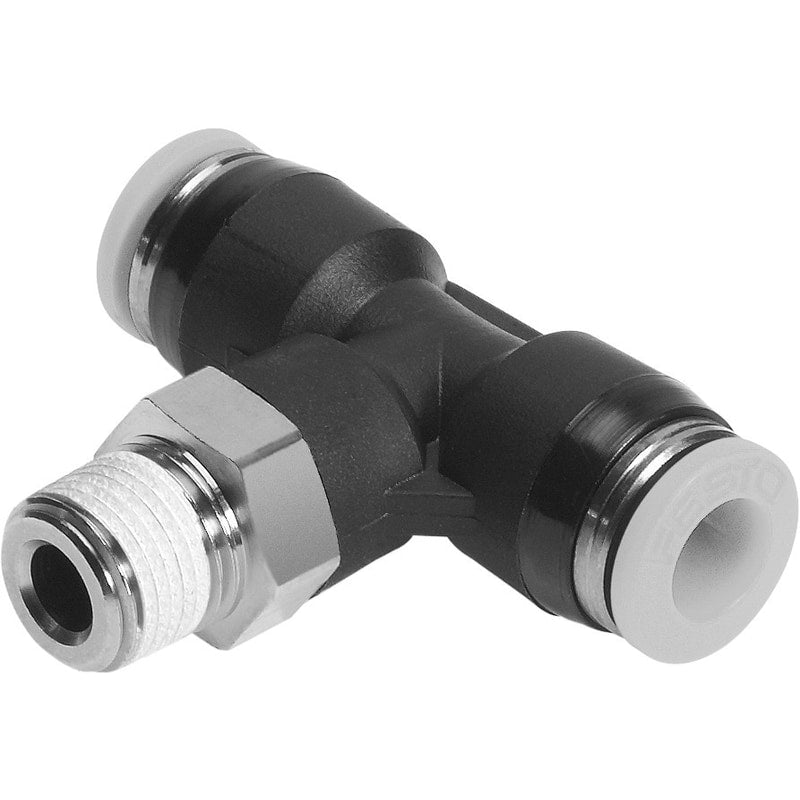

Push-in T-fitting
QBT-M5-1/4-U-M
533250
GTIN 4052568340759
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 2.489 mm
Regular price
$5.49
Unit price
QBT-M5-1/4-U-M Push-in T-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBT-M5-1/4-U-M
Regular price
$5.49
Unit price
QBT-M5-1/4-U-M Push-in T-fitting is backordered and will ship as soon as it is back in stock.
push-in T-fitting QBT-M5-1/4-U-M 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=0,098 ", Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=0 - 145 Psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | Male Branch Tee |
|---|---|
| Size | Standard |
| Nominal size | 0.098 " |
| Type of seal on screw-in stud | Sealing ring |
| Operating pressure complete temperature range | 0 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Maritime classification | see certificate |
| Nominal tightening torque | 0.5 Nm |
| Tolerance for nominal tightening torque | ± 10 % |
| Product weight | 0.579 oz |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material of threaded seal | NBR |
| Material release ring | POM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
