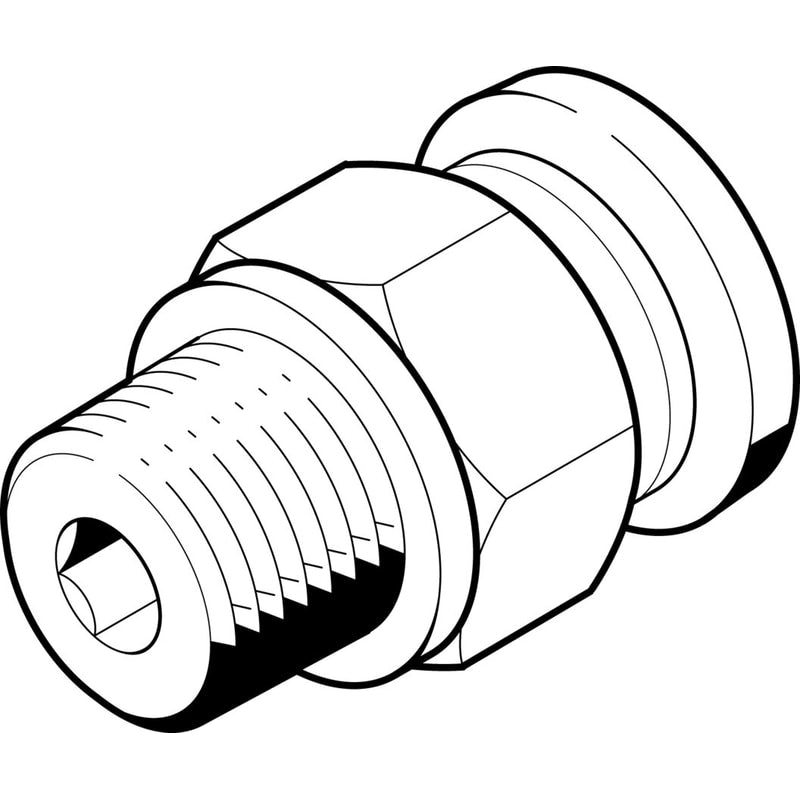

Push-in fitting
QB-1/4-3/16-U-M (Pack of 10)
533218
GTIN 4052568340438
Vendor Festo
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/16"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 2.997 mm
Regular price
$2.22
Unit price
QB-1/4-3/16-U-M (Pack of 10) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QB-1/4-3/16-U-M (Pack of 10)
Regular price
$2.22
Unit price
QB-1/4-3/16-U-M (Pack of 10) is backordered and will ship as soon as it is back in stock.
push-in fitting QB-1/4-3/16-U-M male thread with external hexagon. Size=Standard, Nominal size=0,118 ", Type of seal on screw-in stud=coating, Operating pressure complete temperature range=0 - 145 Psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 0.118 " |
| Type of seal on screw-in stud | coating |
| Operating pressure complete temperature range | 0 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Maritime classification | see certificate |
| Product weight | 0.875 oz |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material of threaded seal | NBR |
| Material release ring | POM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
