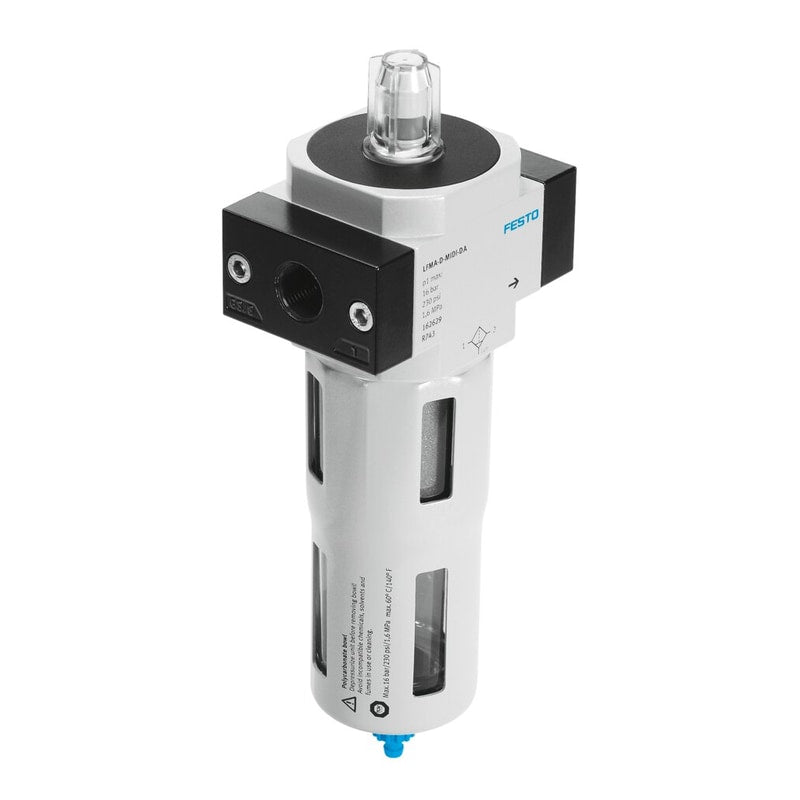

LFMA-1-D-MAXI-DA-A
532862
Vendor Festo
Regular price
$710.67
Unit price
LFMA-1-D-MAXI-DA-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMA-1-D-MAXI-DA-A
Regular price
$710.67
Unit price
LFMA-1-D-MAXI-DA-A is backordered and will ship as soon as it is back in stock.
| Series | D |
|---|---|
| Size | Maxi |
| Type code | LFMA |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Fully automatic |
| Symbol | 991544 |
| Operating pressure | 2 bar ... 12 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4]Inert gas |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [1:7:2] |
| Max. standard flow rate for air quality class | 2200 l/min |
| Min. standard flow rate for air quality class | 480 l/min |
| Filter efficiency | 0.999999 |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 1.5 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Differential pressure display | Visual display |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | G1 |
| Pneumatic connection 2 | G1 |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Product weight | 1340 g |
