Fine filter

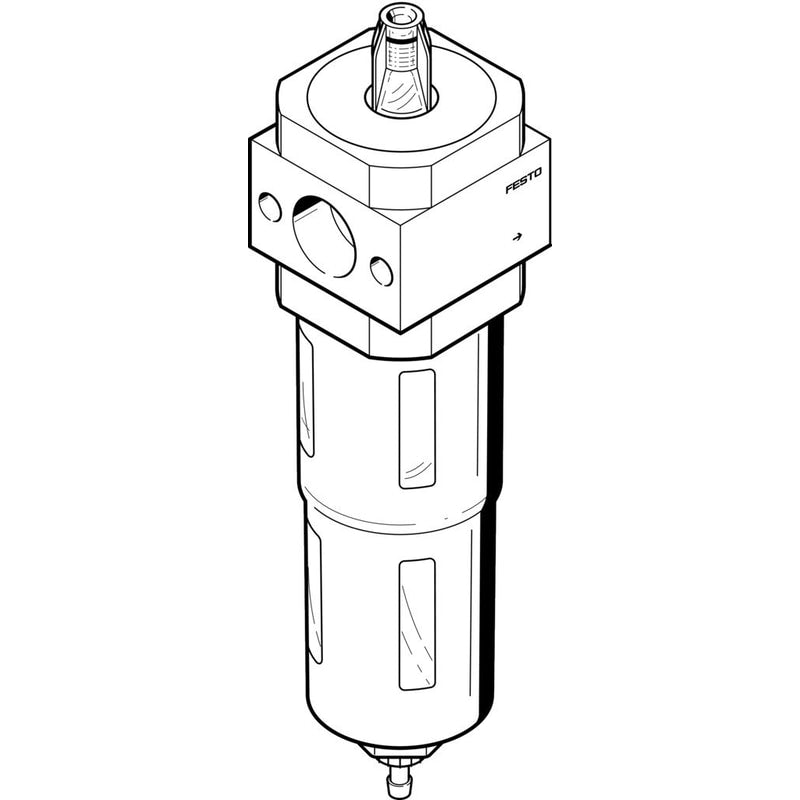

LFMB-D-MIDI-DA
532812
GTIN 4052568165550
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Condensate drain
- Manually rotating
- Operating pressure
- 1 bar - 16 bar
- Grade of filtration
- 1 µm
Regular price
$285.34
Unit price
LFMB-D-MIDI-DA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFMB-D-MIDI-DA
Regular price
$285.34
Unit price
LFMB-D-MIDI-DA is backordered and will ship as soon as it is back in stock.
| Series | D |
|---|---|
| Size | Midi |
| Type code | LFMB |
| Design | Fiber filter |
| Grade of filtration | 1 µm |
| Condensate drain | Manually rotating |
| Symbol | 991543 |
| Operating pressure | 1 bar ... 16 bar |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:4] |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [5:7:3] |
| Filter efficiency | 0.9999 |
| Max. condensate volume | 43 ml |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 1.5 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Storage temperature | -10 °C ... 60 °C |
| Residual oil content | 0.5 mg/m³ |
| Differential pressure display | Visual display |
| Type of mounting | Optionally:Line installationWith accessories |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Product weight | 595 g |
