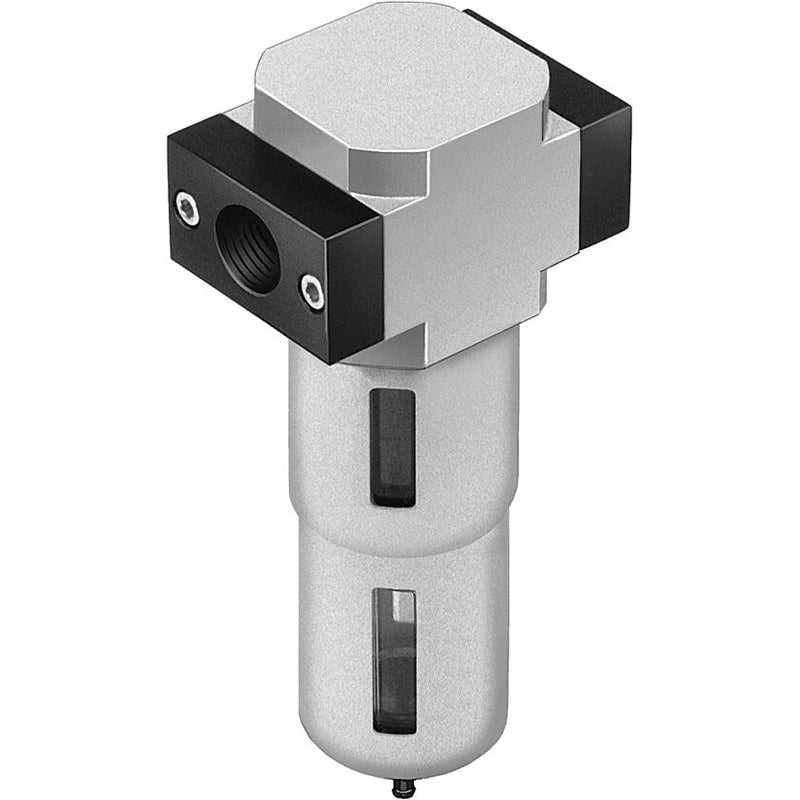

Active carbon filter
LFX-1/4-D-MINI
532802
GTIN 4052568086282
Vendor Festo
- Pneumatic connection 1
- Sub-base - G1/4
- Max. standard flow rate for air quality class
- 360 l/min
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 0 bar - 16 bar
- Structural design
- Active carbon filter - Fiber filter
Regular price
$160.30
Unit price
LFX-1/4-D-MINI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFX-1/4-D-MINI
Regular price
$160.30
Unit price
LFX-1/4-D-MINI is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Type code | LFX |
| Series | D |
| Mounting position | Vertical +/- 5° |
| Design | Fiber filterActive carbon filter |
| Bowl guard | Metal bowl guard |
| Symbol | 991519 |
| Operating pressure | 0 bar ... 16 bar |
| Recommended maximum standard flow | 360 l/min |
| Max. standard flow rate for air quality class | 360 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Storage temperature | -10 °C ... 60 °C |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [1:4:1] |
| Temperature of medium | 5 °C ... 30 °C |
| Residual oil content | ≤ 0.003 mg/m³ |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 376 g |
| Type of mounting | With mounting bracketLine installationOptionally: |
| Pneumatic connection | G1/4 |
| Pneumatic connection 1 | G1/4Sub-base |
| Pneumatic connection 2 | Sub-baseG¼ |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
