Rod eye
SGS-10-32
532694
GTIN 4052568339982
Vendor Festo
Regular price
$27.84
Unit price
SGS-10-32 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SGS-10-32
Regular price
$27.84
Unit price
SGS-10-32 is backordered and will ship as soon as it is back in stock.

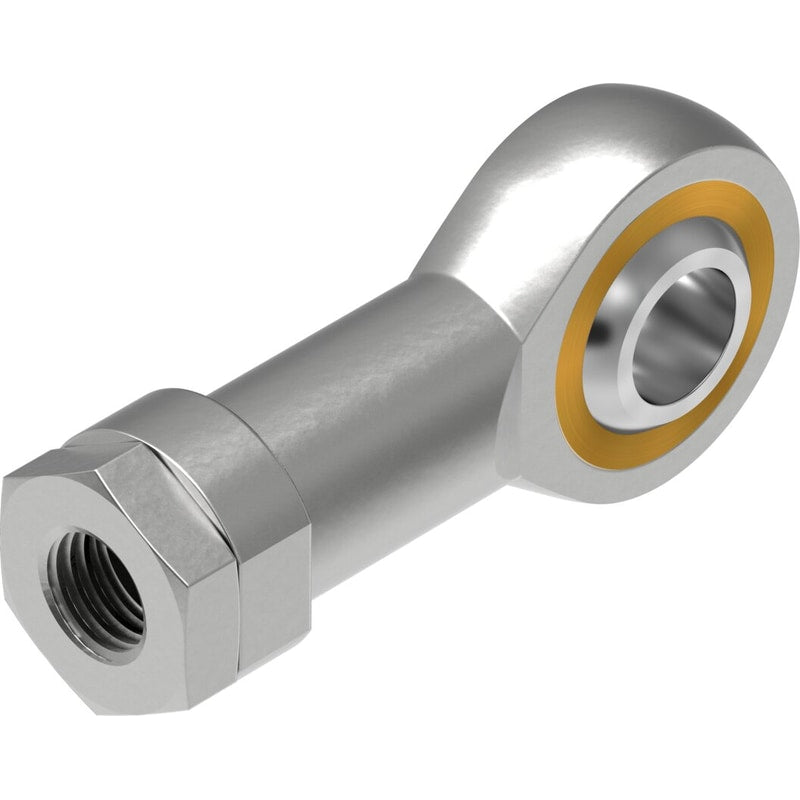

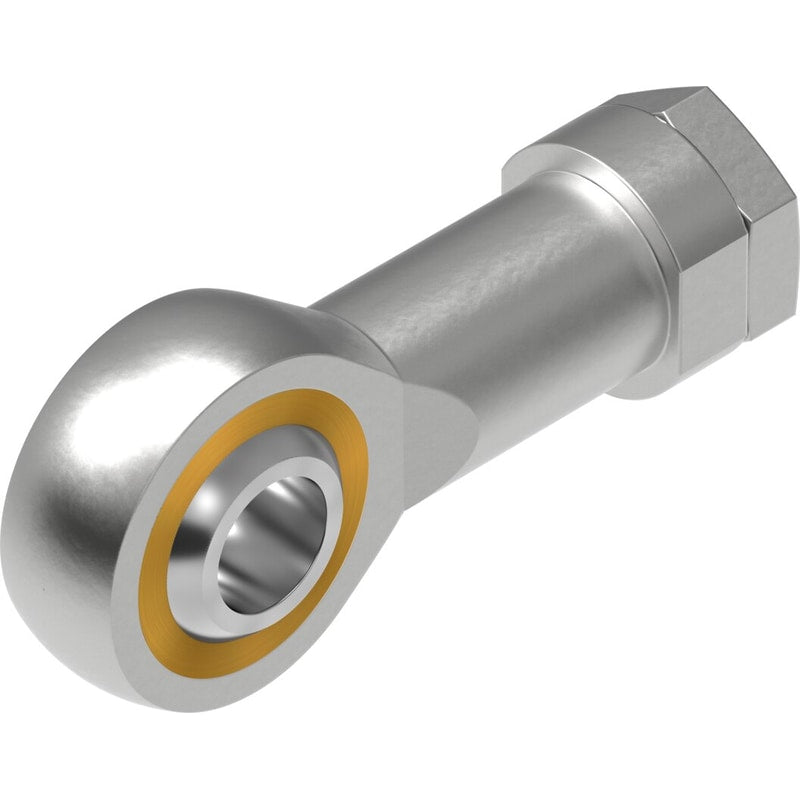

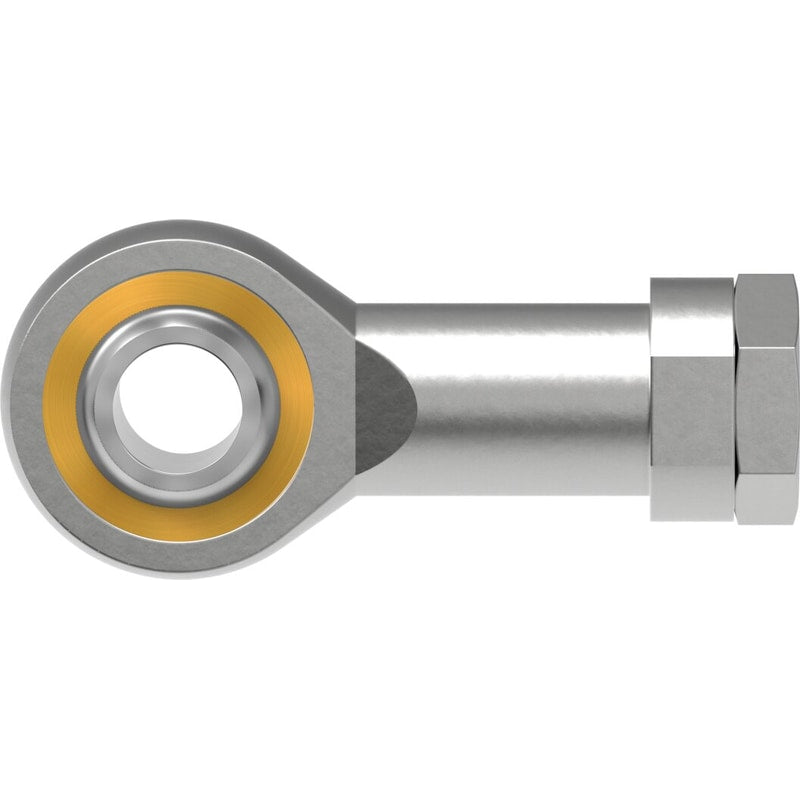

rod eye SGS-10-32 With hexagonal nut, for spherical swivelling cylinder mounting (piston rod side) as per DIN ISO 8139. Size=10-32, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Ambient temperature=-40 - 150 °C, Product weight=21 g, Materials note=Conforms to RoHS
| Size | 11963 |
|---|---|
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-40 ... 150 °C |
| Product weight | 21 g |
| Materials note | Conforms to RoHS |
| Material of outer ring | Brass |
| Material housing | SteelGalvanised |
| Material of inner ring | Steel |
| Material nut | SteelGalvanised |
